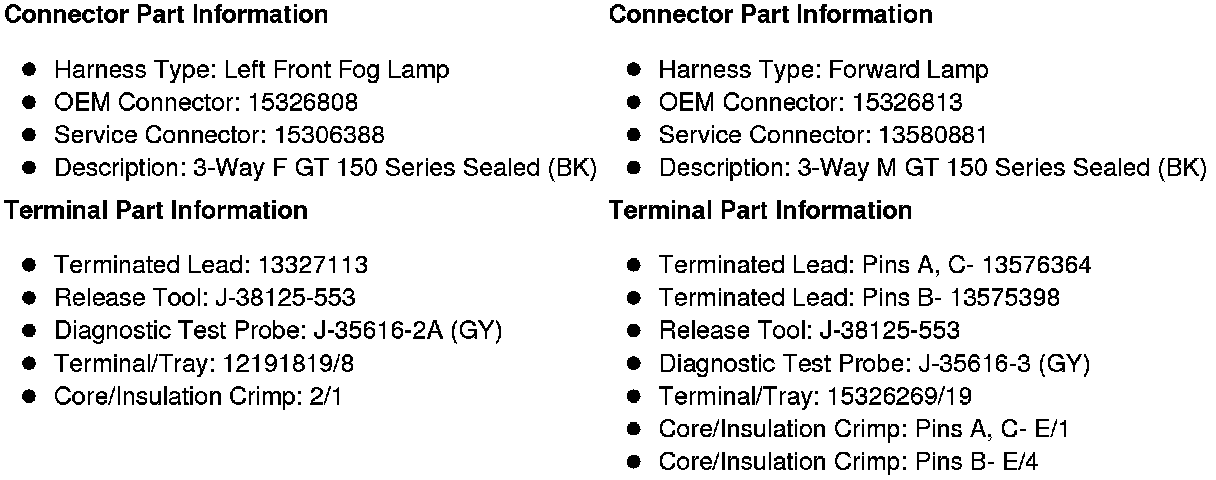

Left Front Fog Lamp Harness to Forward Lamp Harness (Z75)

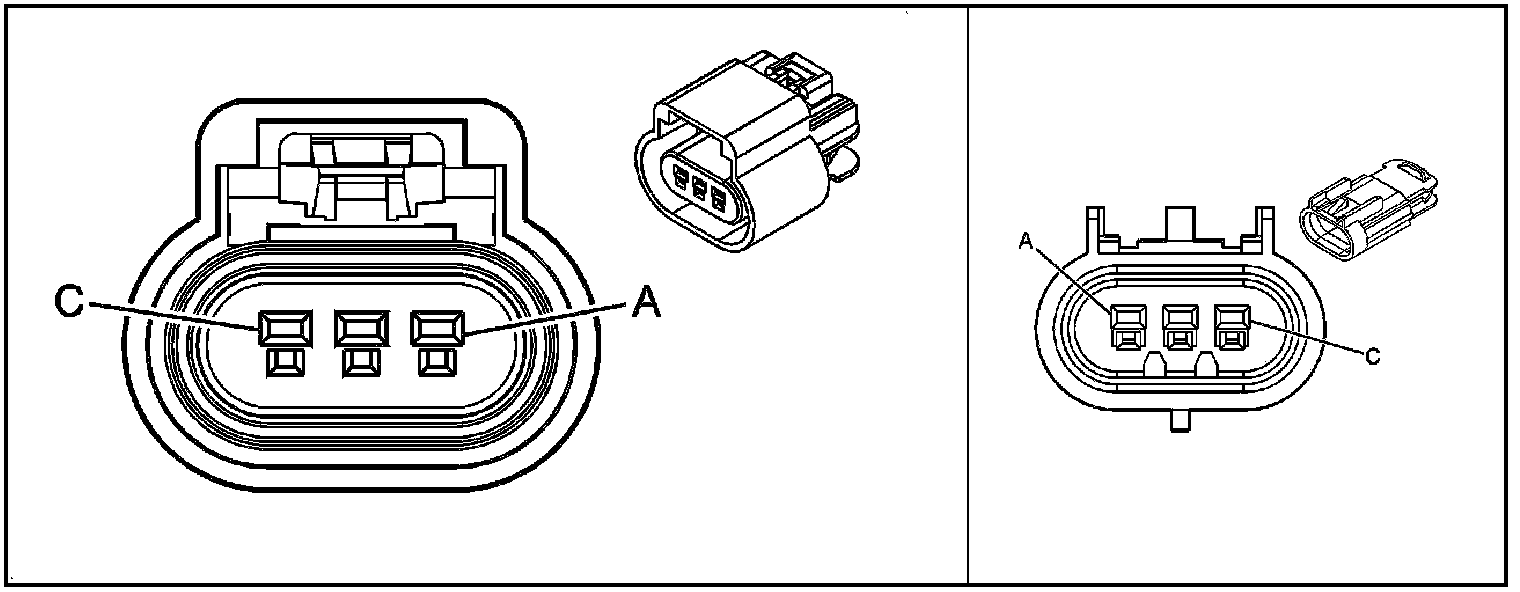

Inline Harness Connector End Views

X101 Left Front Fog Lamp Harness to Forward Lamp Harness (Z75)
