Audio Amplifier X4 (UQA with Y91 or UQS)
Audio Amplifier X4 (UQA with Y91 or UQS)
Component Connector End Views

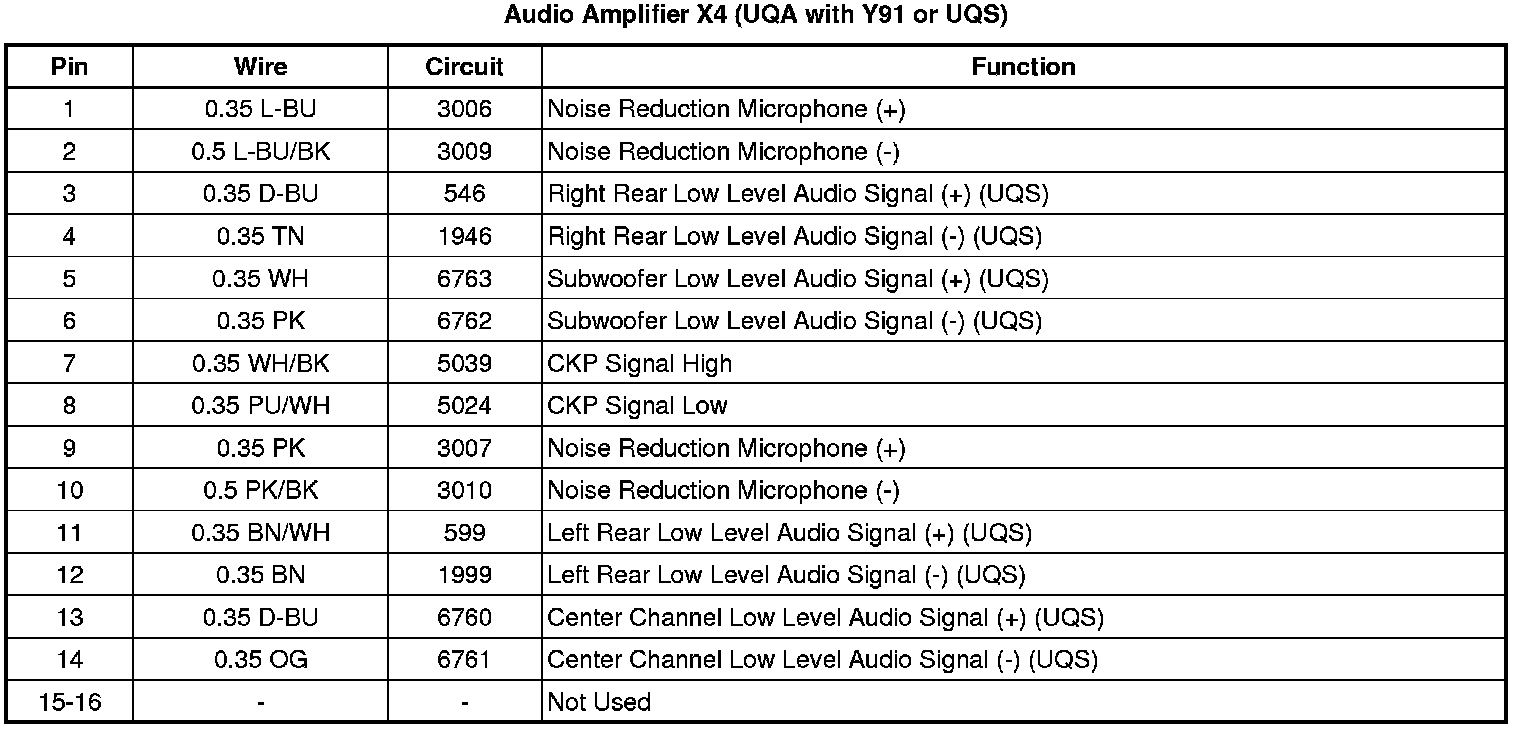

Audio Amplifier X4 (UQA with Y91 or UQS)
