Video System Schematics




Video System Schematics

Display Power and Ground

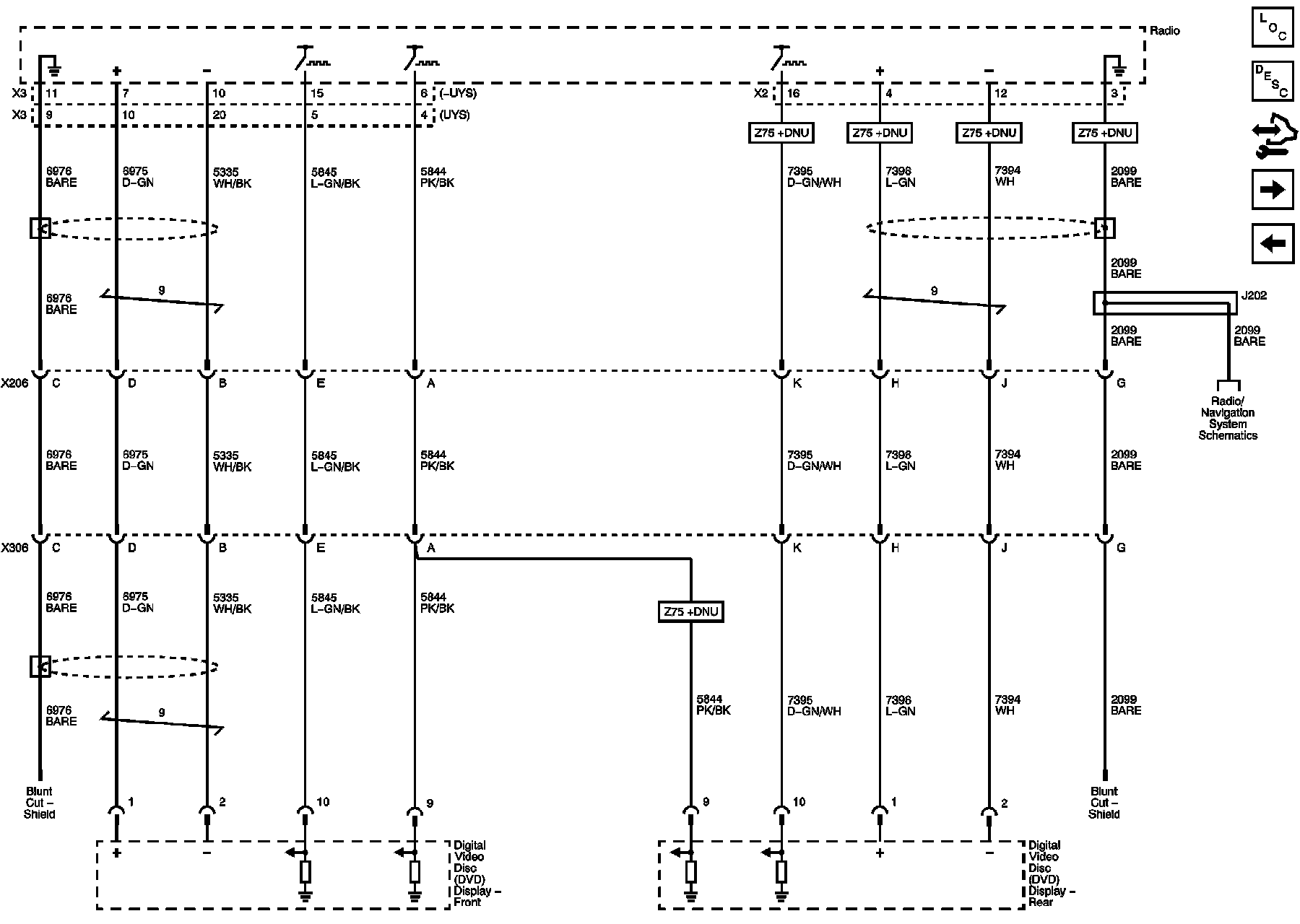

Video Signals

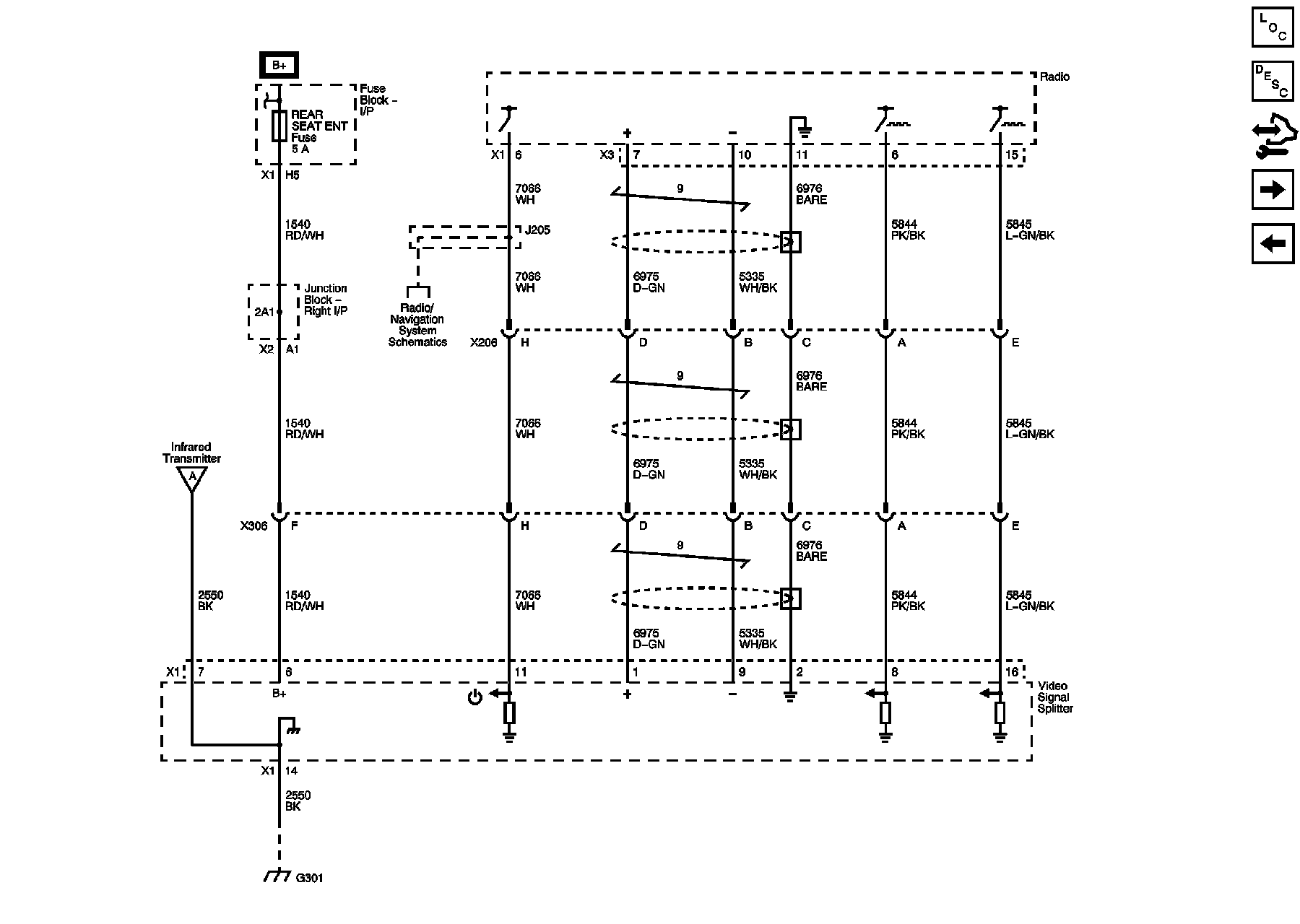

Video Splitter Power, Ground and Video Input (X88 or Z88, with DNU)






Video Signals (X88 or Z88, with DNU)

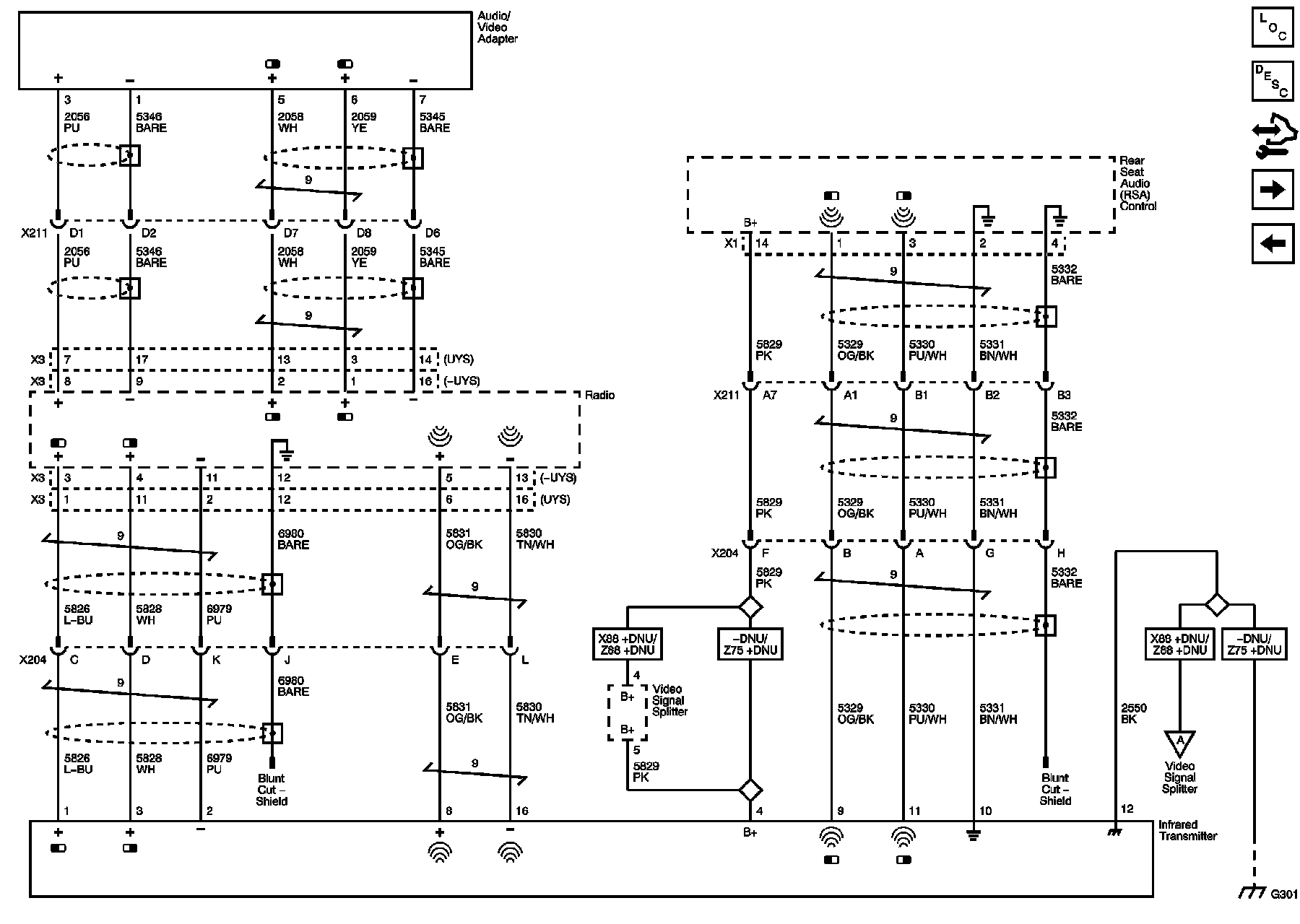

Audio Signals

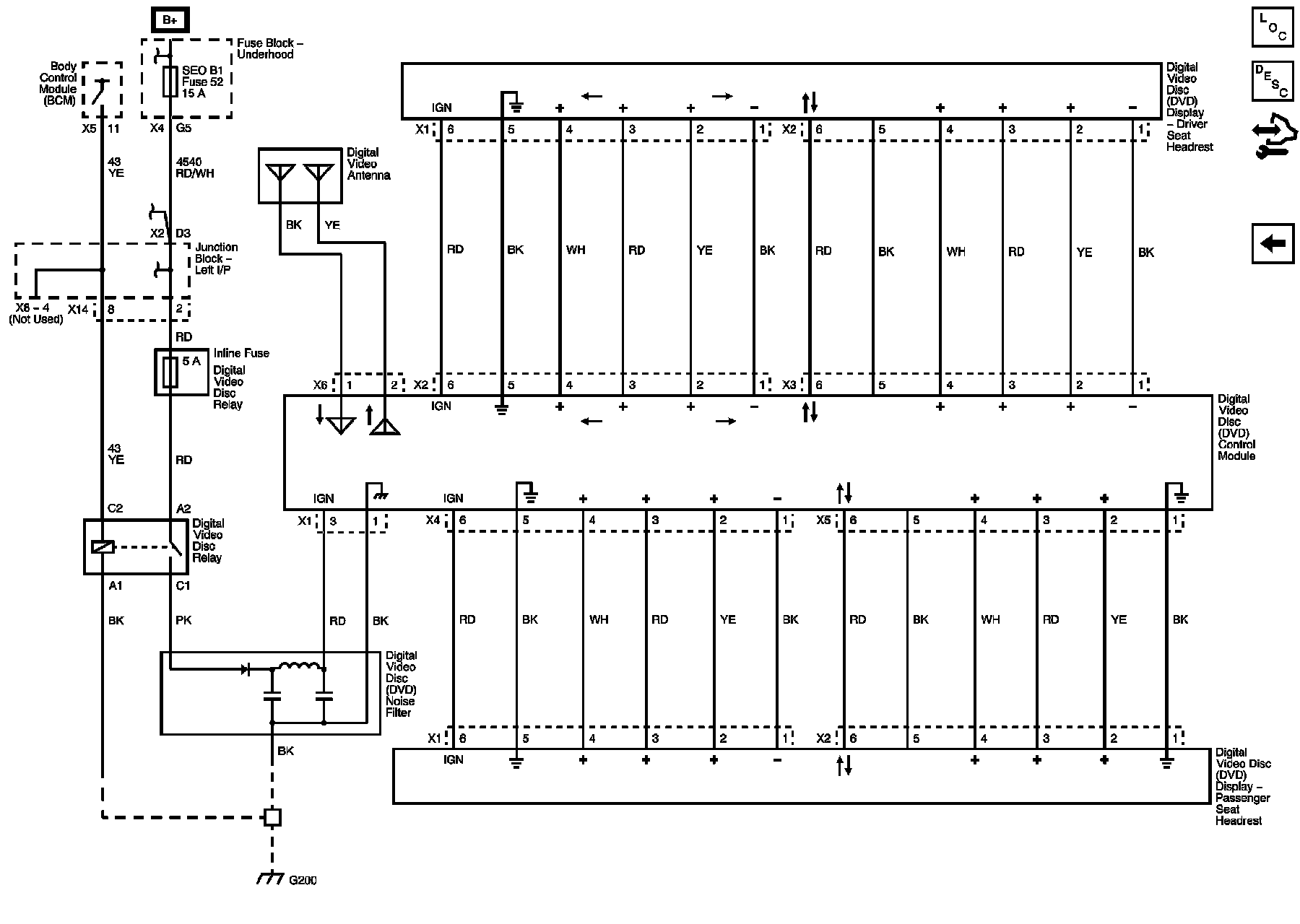

Dual DVD Headrest System (SPO Accessory - Headrest DVD)

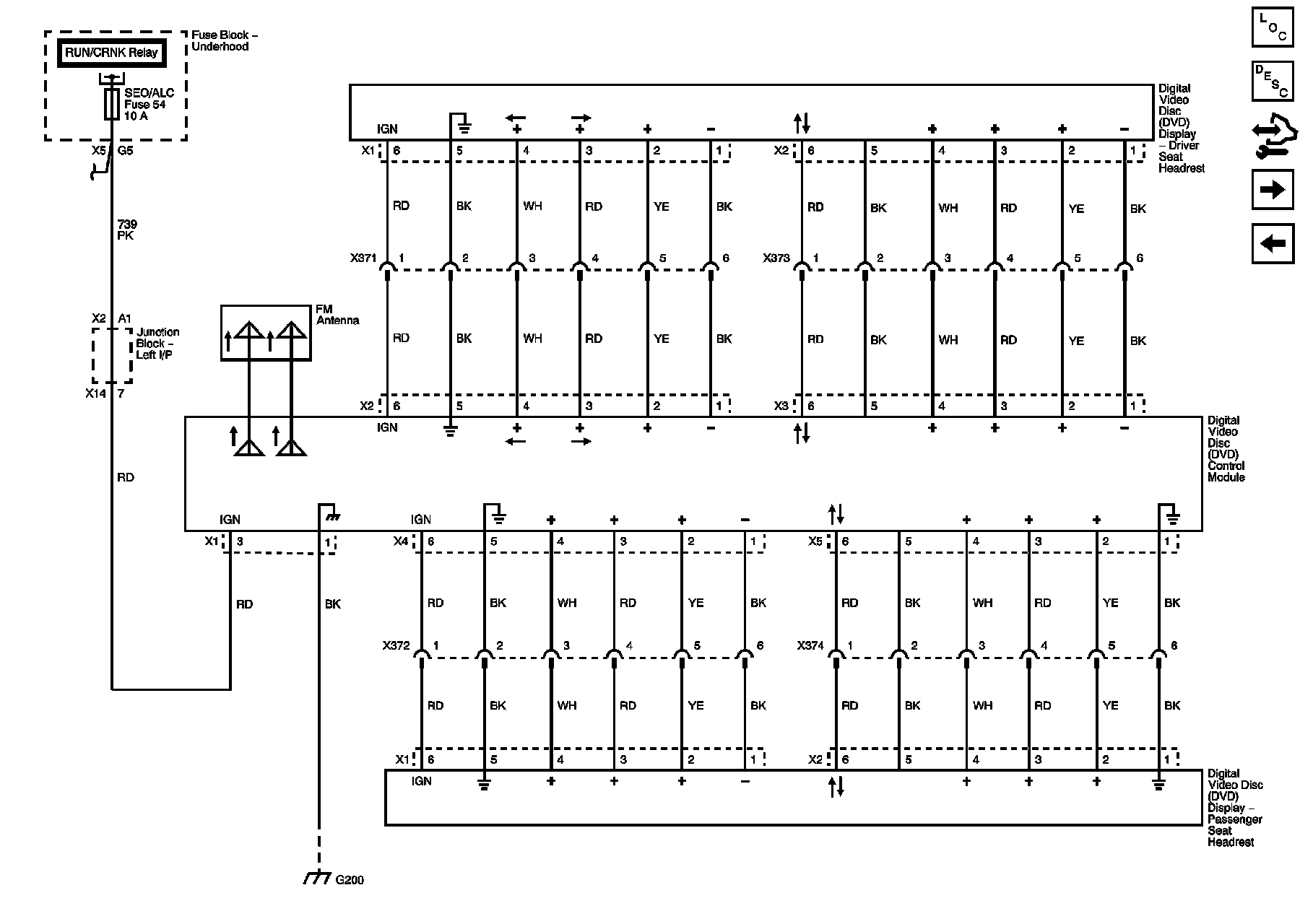

Dual DVD Headrest System (AYE)
