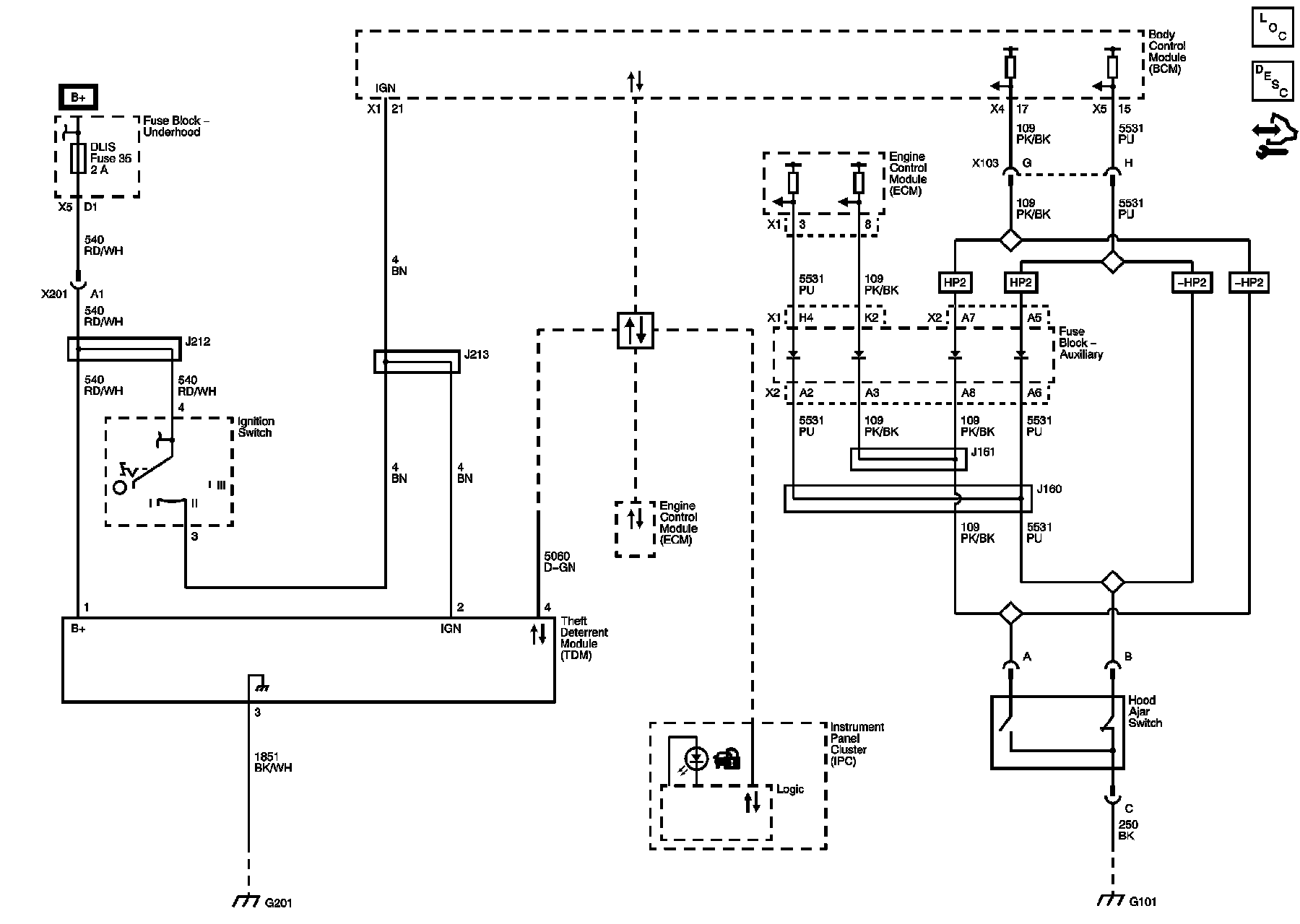

Home >> Cadillac >> 2013 >> Escalade/ESV AWD V8-6.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> Immobilizer Schematics
