Section 9 (Automatic Transmission - 6L80/6L90 - Wiring Schematic Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>
Transmission Range Signals and Driver Shift Request
Transmission Range Signals and Driver Shift Request
WARNING:
This page is about a different variant/trim than selected.

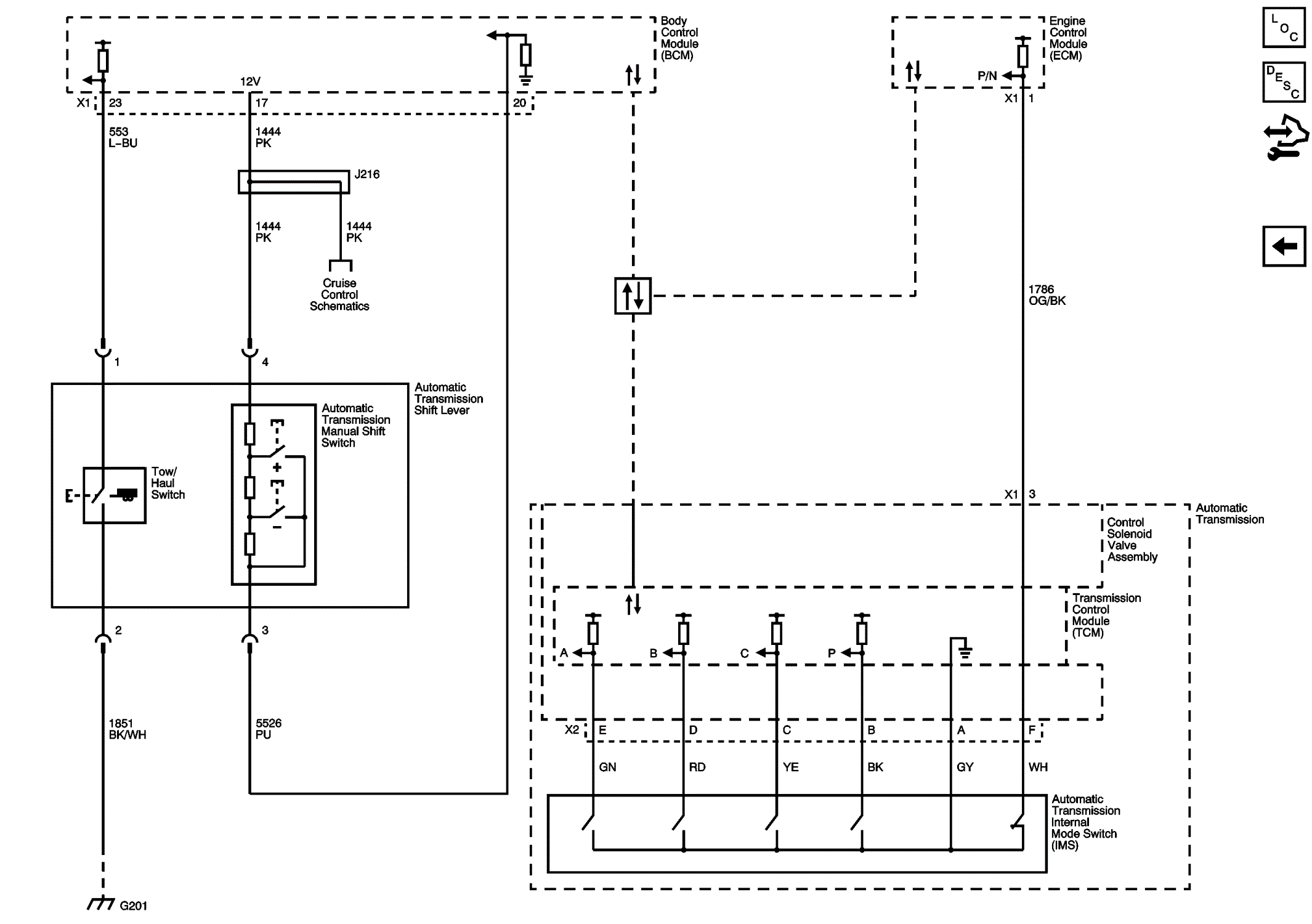

Fig 1: Transmission Range Signals and Driver Shift Request Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
