Section 9 (Automatic Transmission - 6L80/6L90 - Wiring Schematic Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>
Module Power, Ground, Serial Data, and Speed Signal
Module Power, Ground, Serial Data, and Speed Signal
WARNING:
This page is about a different variant/trim than selected.

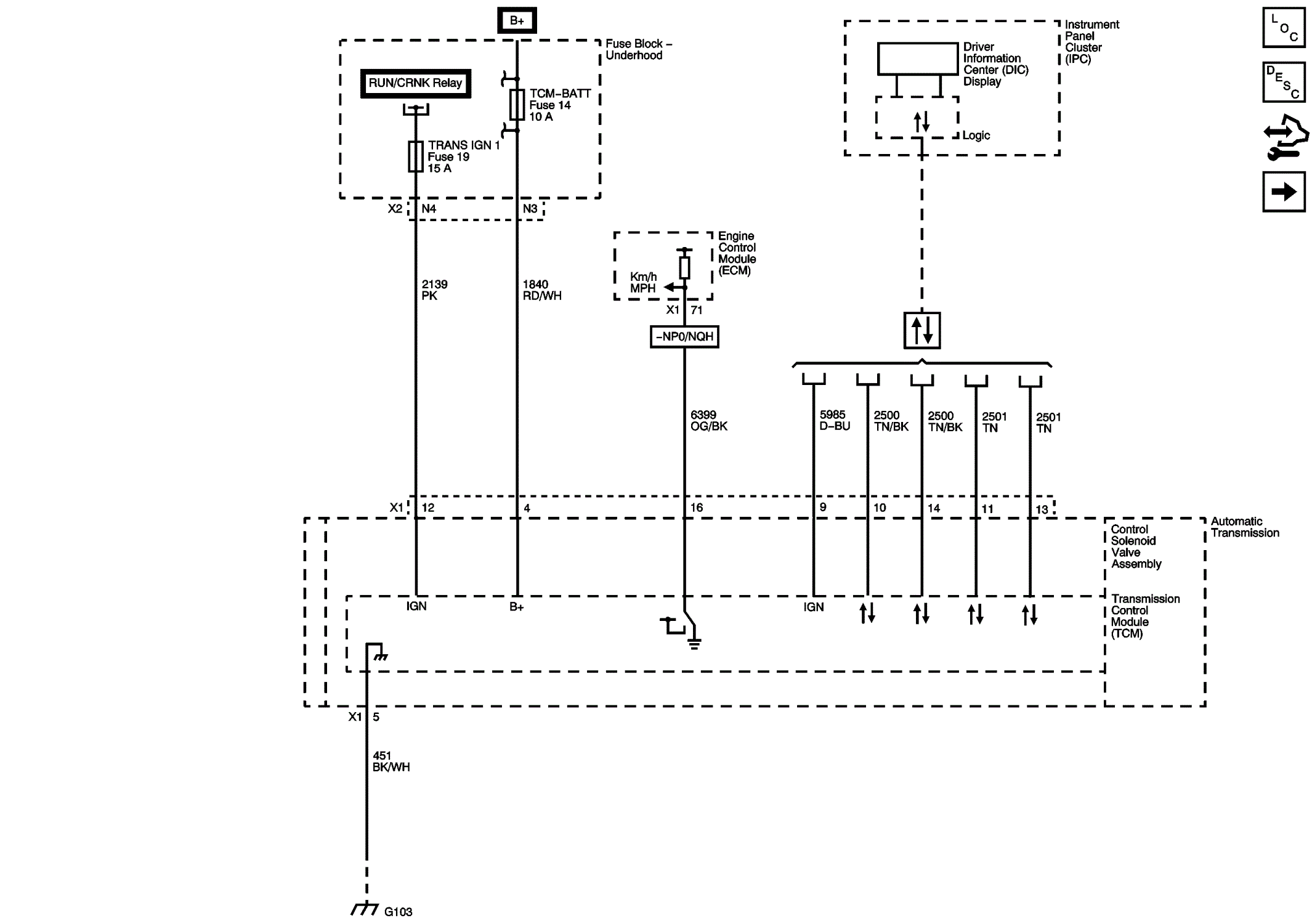

Fig 1: Module Power, Ground, Serial Data, and Speed Signal Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
