ISS, OSS, TFP, TFT, Pressure Controls and Shift Controls

WARNING: This page is about a different variant/trim than selected.

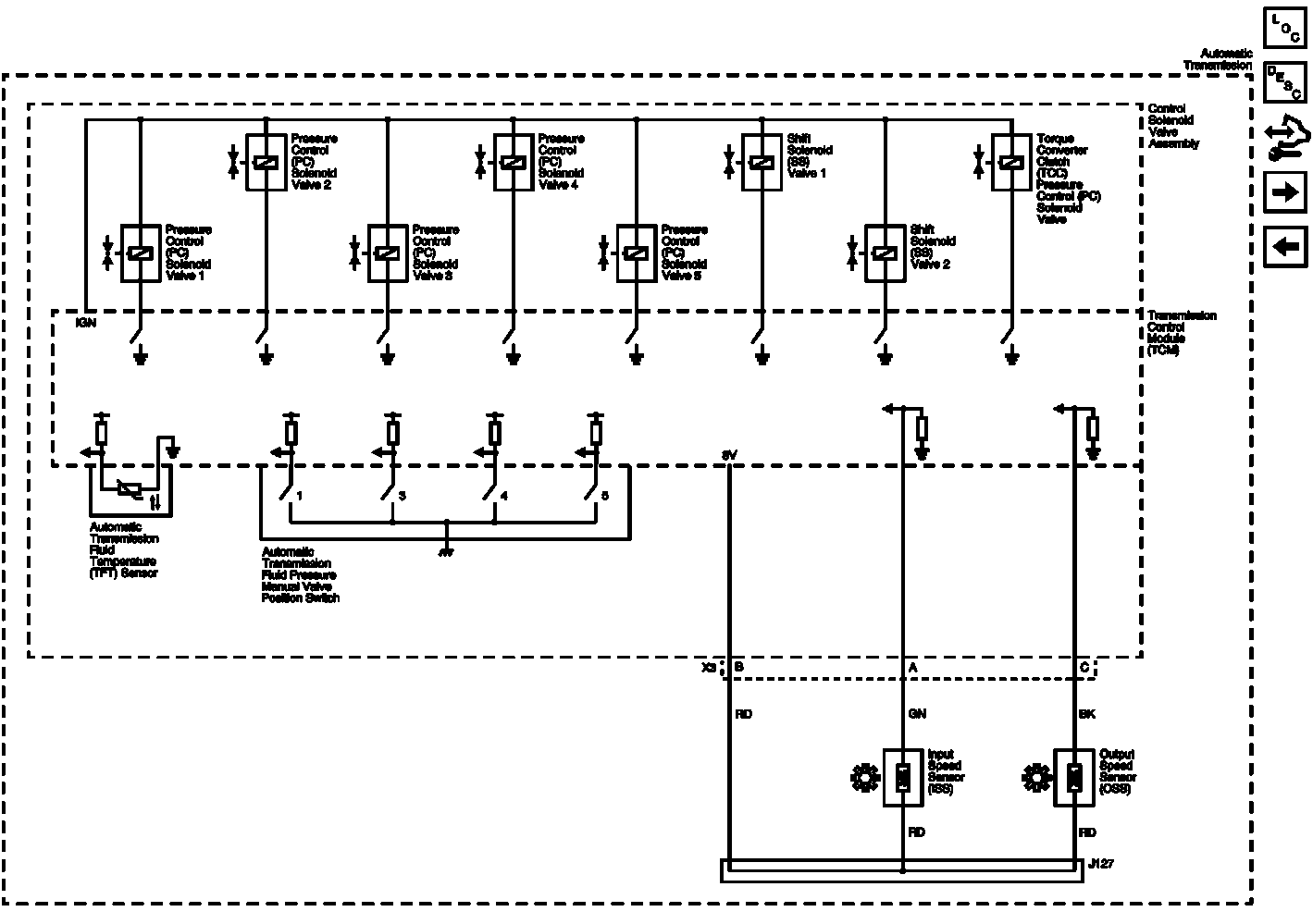

Fig 1: ISS, OSS, TFP, TFT, Pressure Controls and Shift Controls Wiring Schematic
GM2761878Courtesy of GENERAL MOTORS COMPANY
