Section 7 (Antilock Brake System - Non-Hybrid Less Than 3900 Kg (8600 Lb) GVW)
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Sensors
Antilock Brake System Wiring Schematics: Sensors
WARNING:
This page is about a different variant/trim than selected.

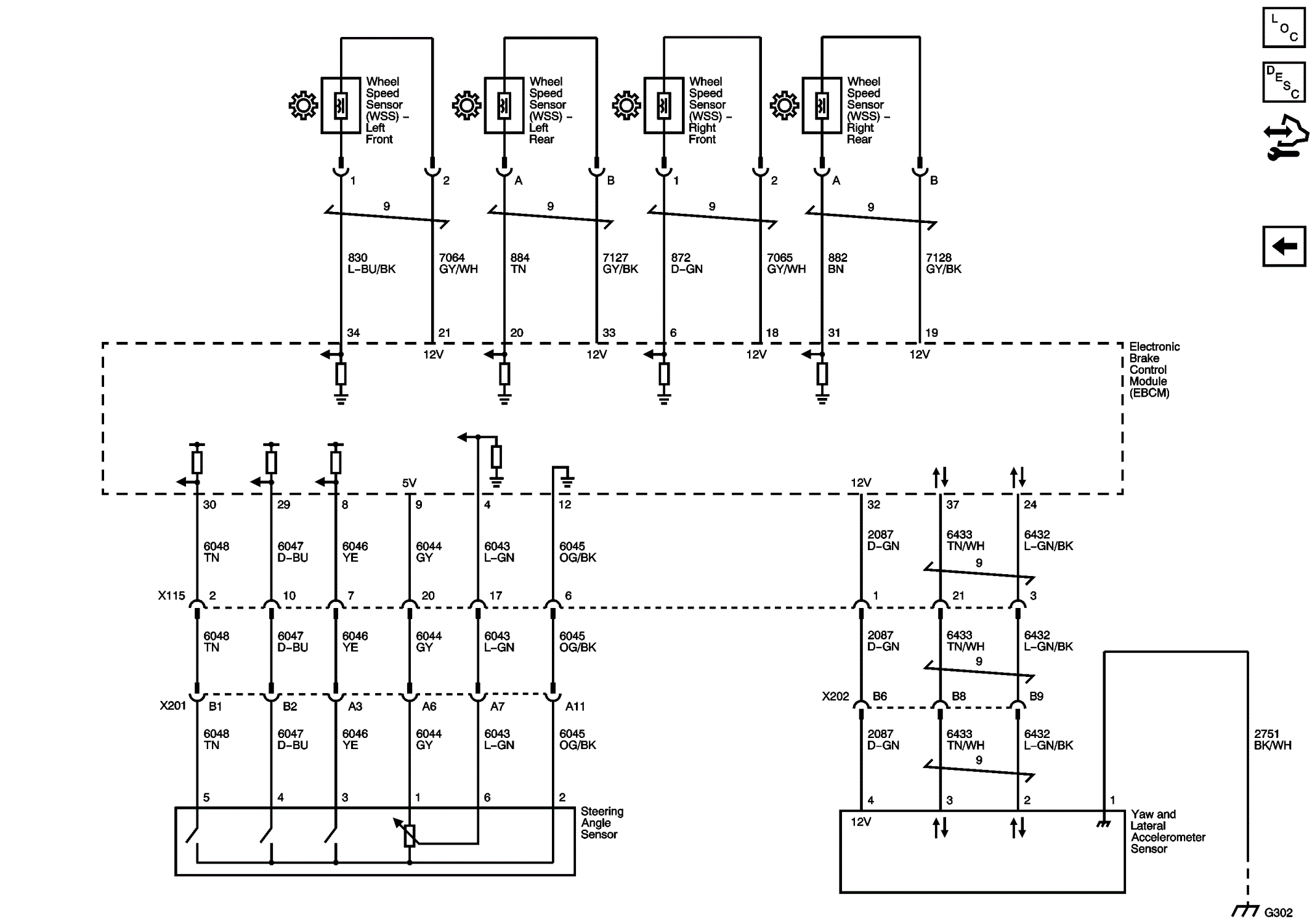

Fig 1: Sensors Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
