Ignition Controls - Sensors and Active Fuel Management Controls

WARNING: This page is about a different variant/trim than selected.

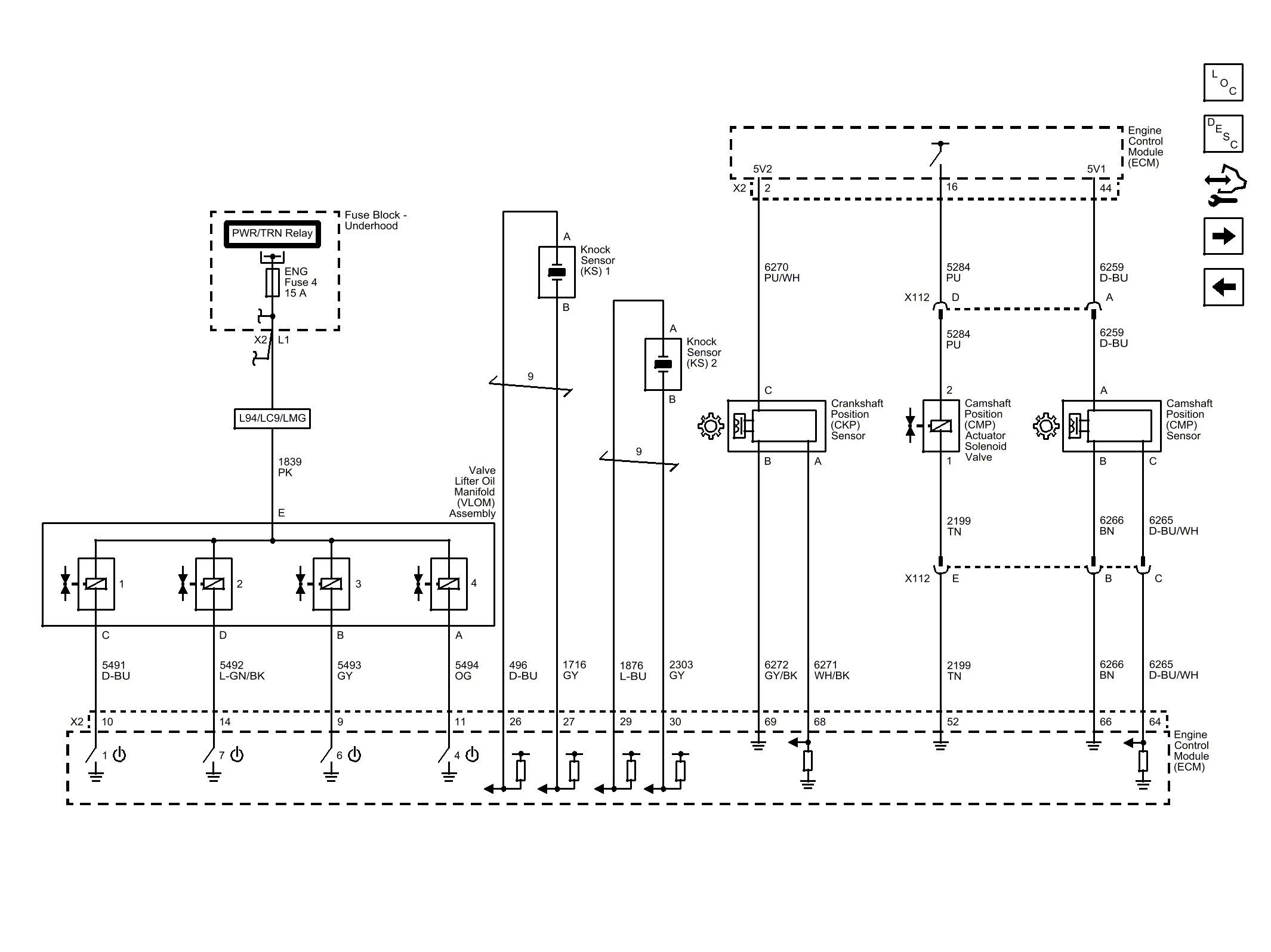

Fig 1: Ignition Controls - Sensors and Active Fuel Management Controls Wiring Schematic
GM2760248Courtesy of GENERAL MOTORS COMPANY
