Ignition Controls - Ignition System Coils 1, 3, 5, and 7

WARNING: This page is about a different variant/trim than selected.

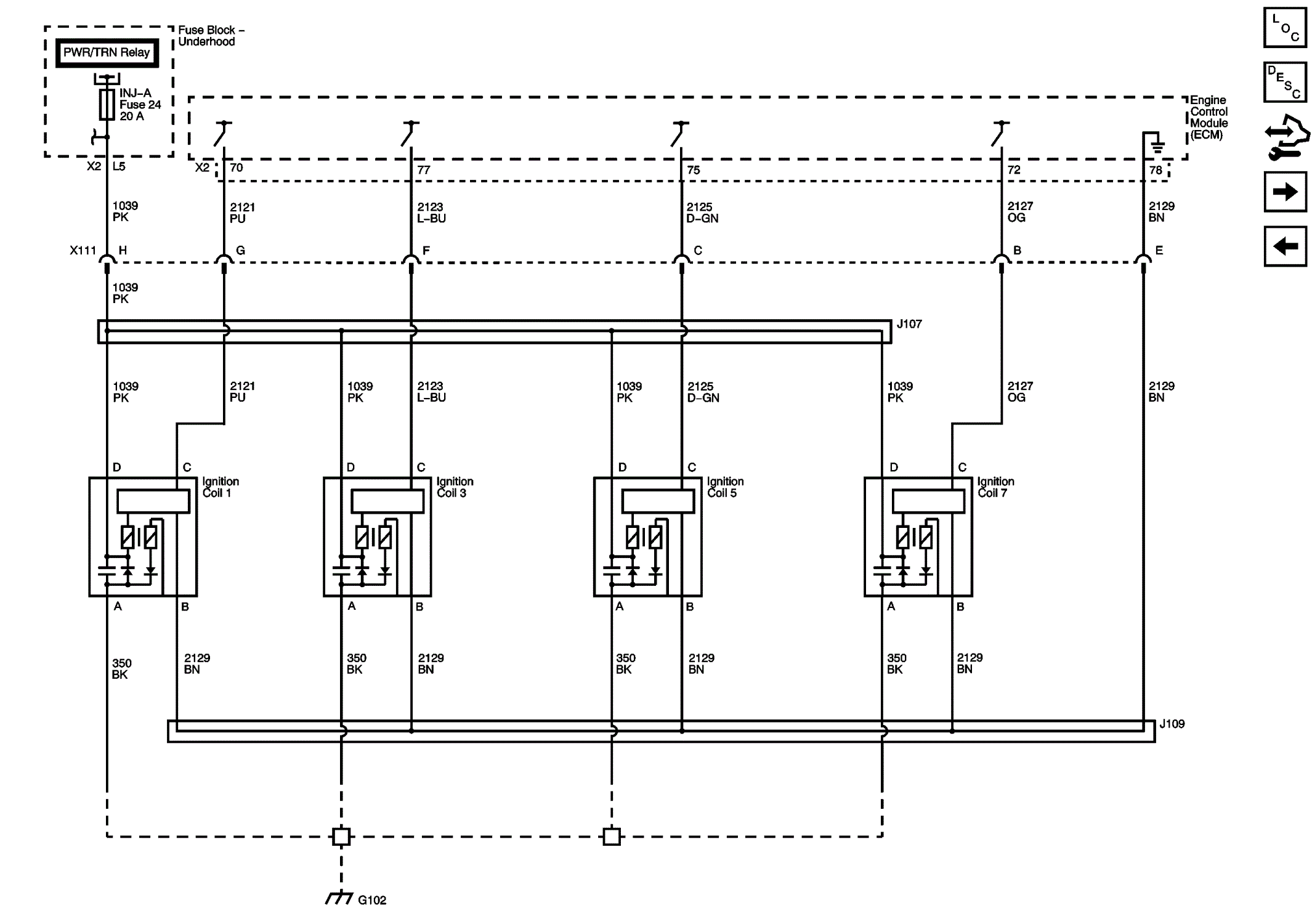

Fig 1: Ignition Controls - Ignition System Coils 1, 3, 5, and 7 Wiring Schematic
GM2759460Courtesy of GENERAL MOTORS COMPANY
