Fuel Controls - Fuel Pump Controls (L96)

WARNING: This page is about a different variant/trim than selected.

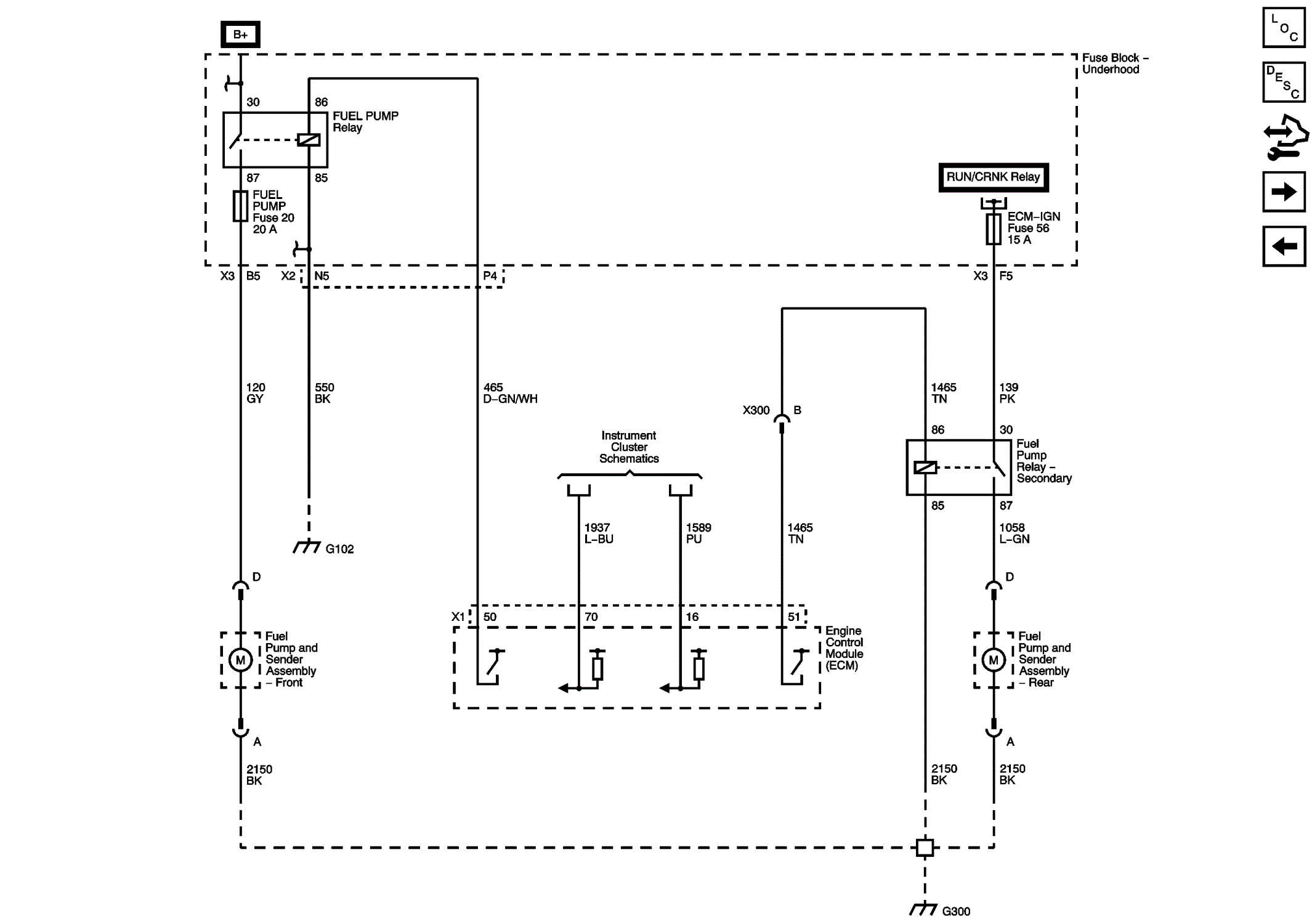

Fig 1: Fuel Controls - Fuel Pump Controls Wiring Schematic (L96)
GM2760249Courtesy of GENERAL MOTORS COMPANY
