Section 10 (Engine Controls/Fuel - 5.3L, 6.0L, 6.2L - Wiring Schematic Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Fuel Injectors
Fuel Controls - Fuel Injectors
WARNING:
This page is about a different variant/trim than selected.

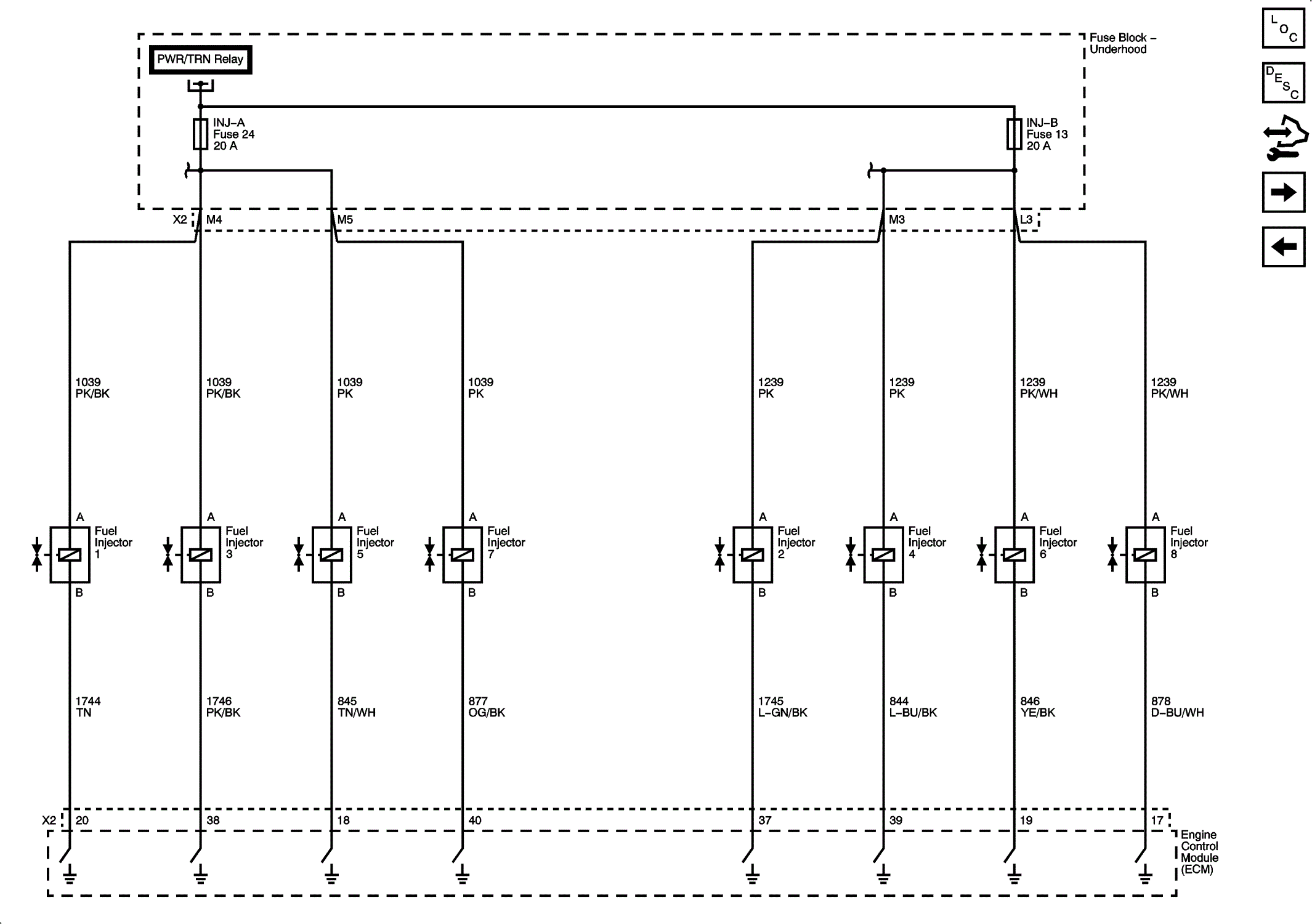

Fig 1: Fuel Controls - Fuel Injectors Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
