Controlled/Monitored Subsystem References

WARNING: This page is about a different variant/trim than selected.

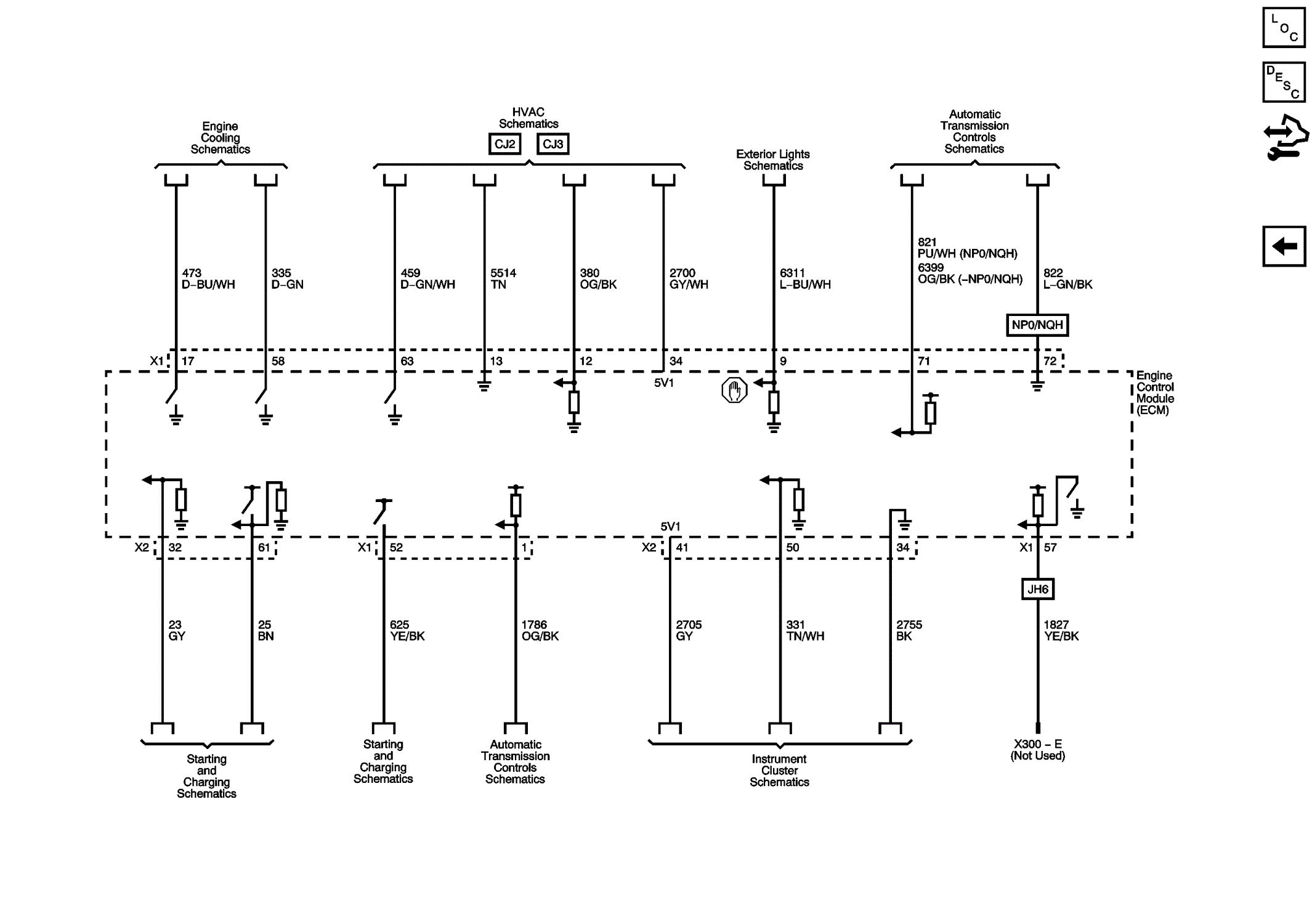

Fig 1: Controlled/Monitored Subsystem References Wiring Schematic
GM2760280Courtesy of GENERAL MOTORS COMPANY
