TRLR BCK/UP, TRLR STOP LT, TRLR STOP RT, and VEH BCK/UP Fuses

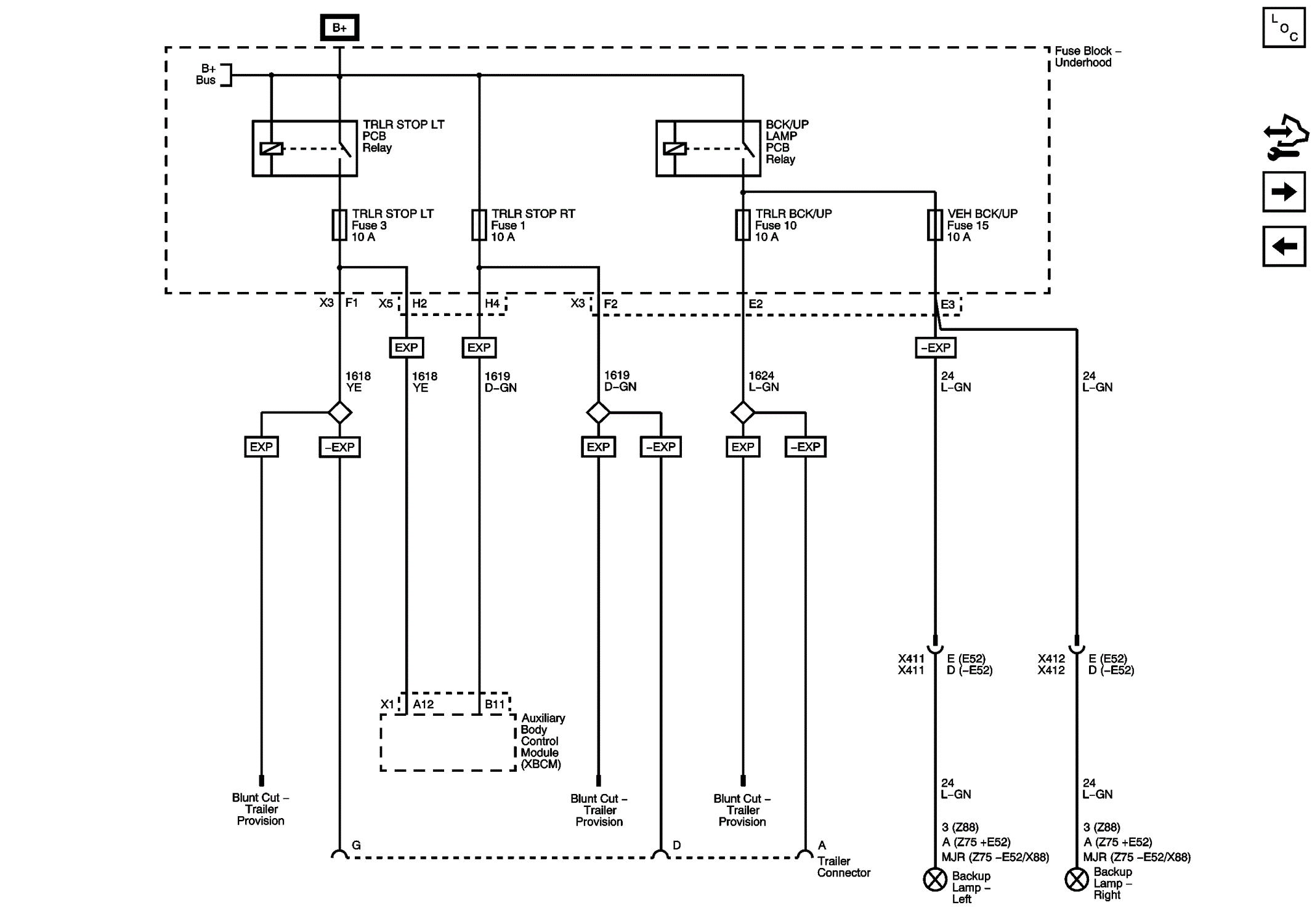

Fig 1: TRLR BCK/UP, TRLR STOP LT, TRLR STOP RT, and VEH BCK/UP Fuses Wiring Schematic

GM2760751

Courtesy of GENERAL MOTORS COMPANY
