LCK 1, LCK 2, UNLCK 1, UNLCK 2, INFO and RSE Fuses

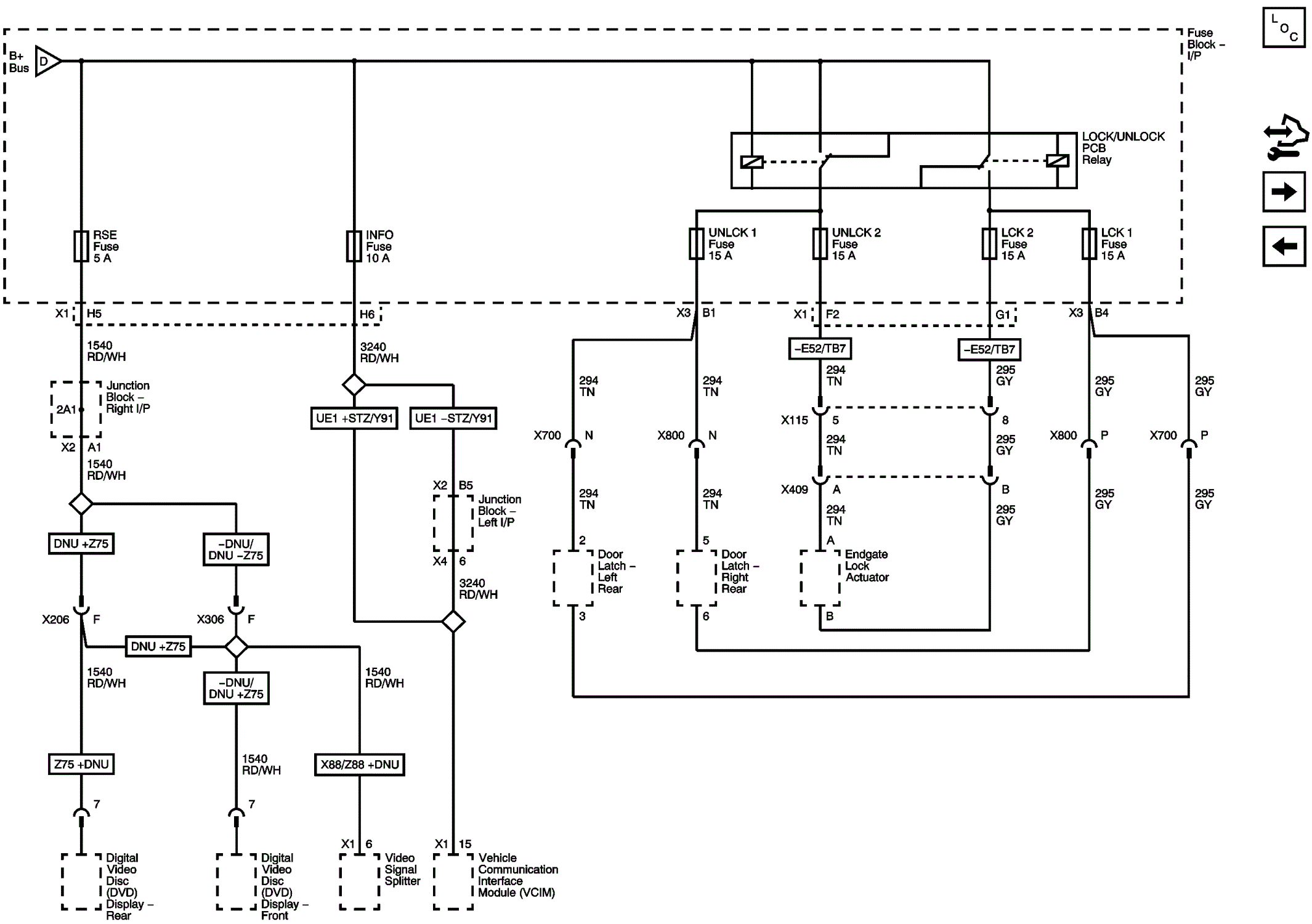

Fig 1: LCK 1, LCK 2, UNLCK 1, UNLCK 2, INFO and RSE Fuses Wiring Schematic

GM2760336

Courtesy of GENERAL MOTORS COMPANY
