FOG LAMP, HI HEADLAMP - LT, and HI HEADLAMP - RT

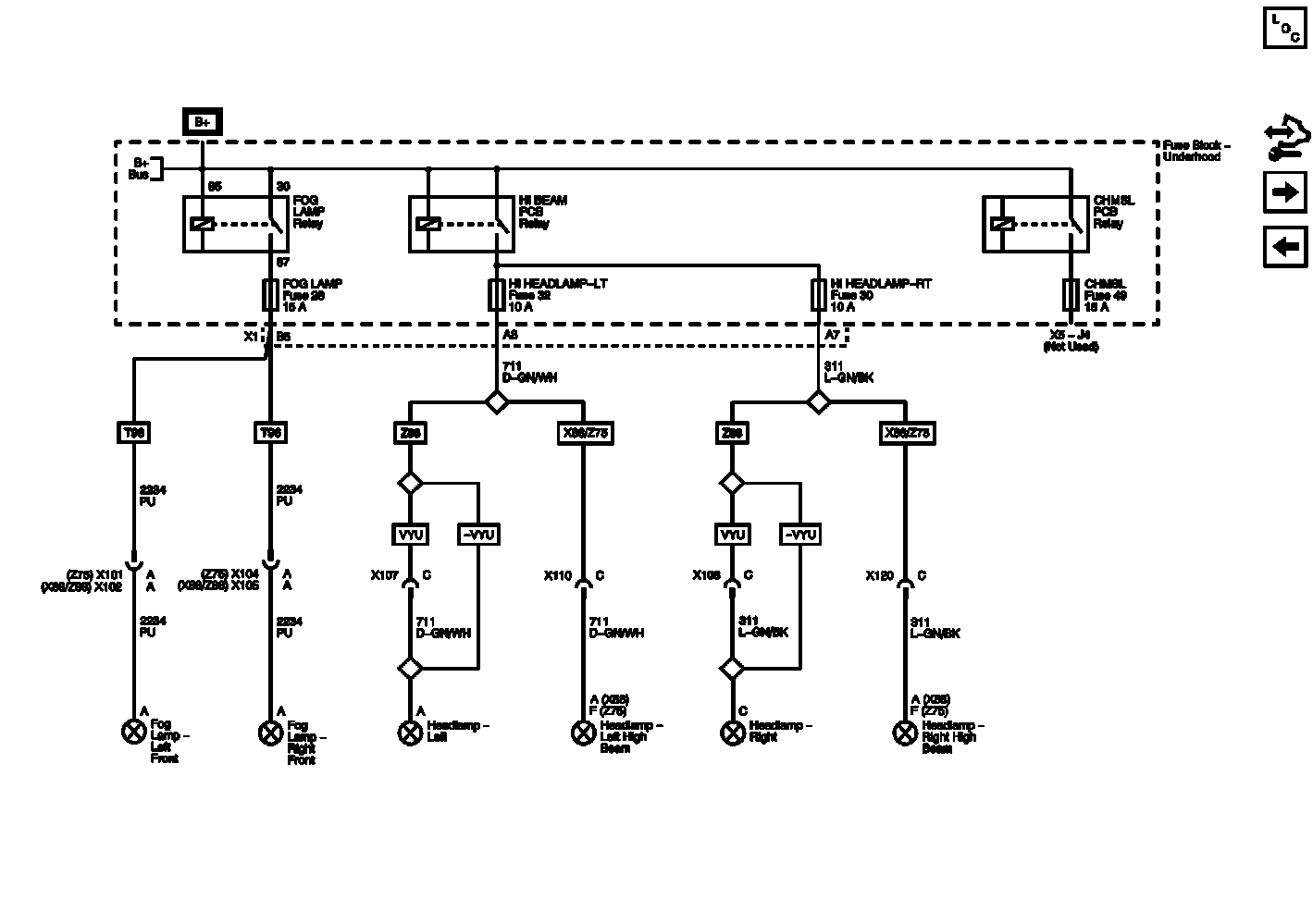

Fig 1: FOG LAMP, HI HEADLAMP - LT, and HI HEADLAMP - RT Wiring Schematic

GM2761311

Courtesy of GENERAL MOTORS COMPANY
