ECM-BATT, FSCM, HVAC BATT, IPC, LTR, S/ROOF, and TCM-BATT Fuses

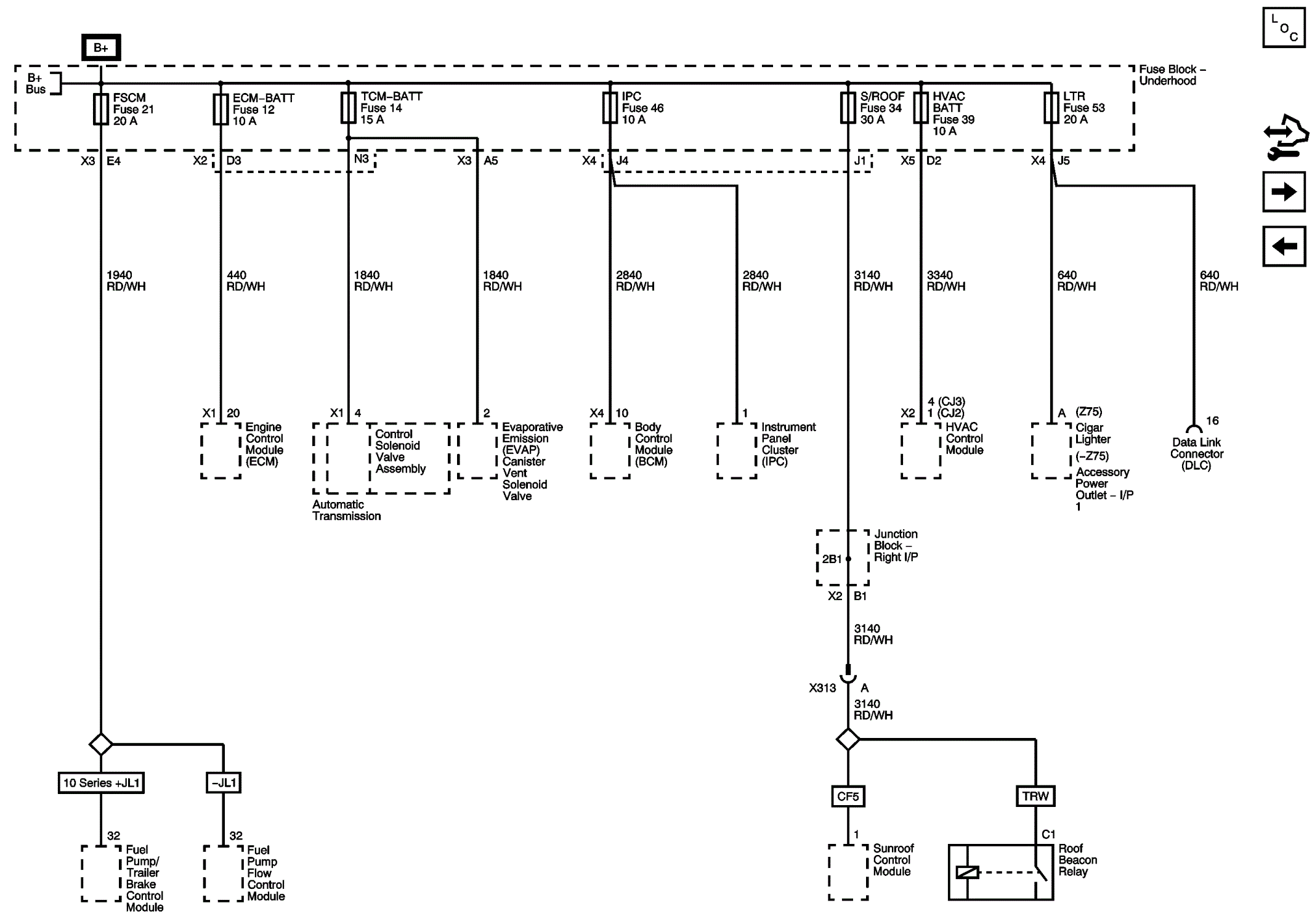

Fig 1: ECM-BATT, FSCM, HVAC BATT, IPC, LTR, S/ROOF, and TCM-BATT Fuses Wiring Schematic

GM2760338

Courtesy of GENERAL MOTORS COMPANY
