EAP and MBEC 1 Fuses; AUX WDO, DRIVER SEAT 2, PASS SEAT 1 and RT DOORS Circuit Breakers

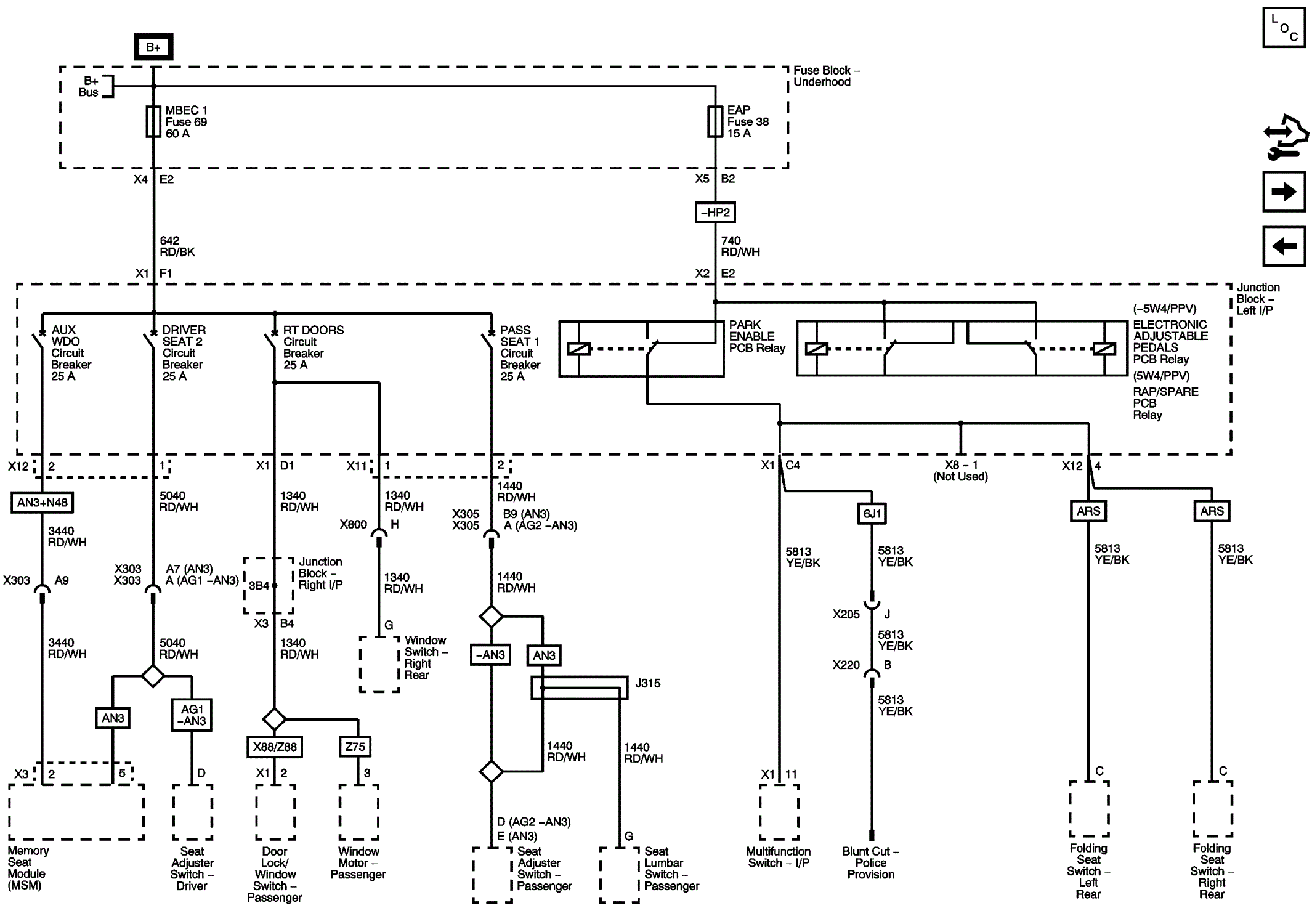

Fig 1: EAP and MBEC 1 Fuses; AUX WDO, DRIVER SEAT 2, PASS SEAT 1 and RT DOORS Circuit Breakers Wiring Schematic
GM2760601Courtesy of GENERAL MOTORS COMPANY
