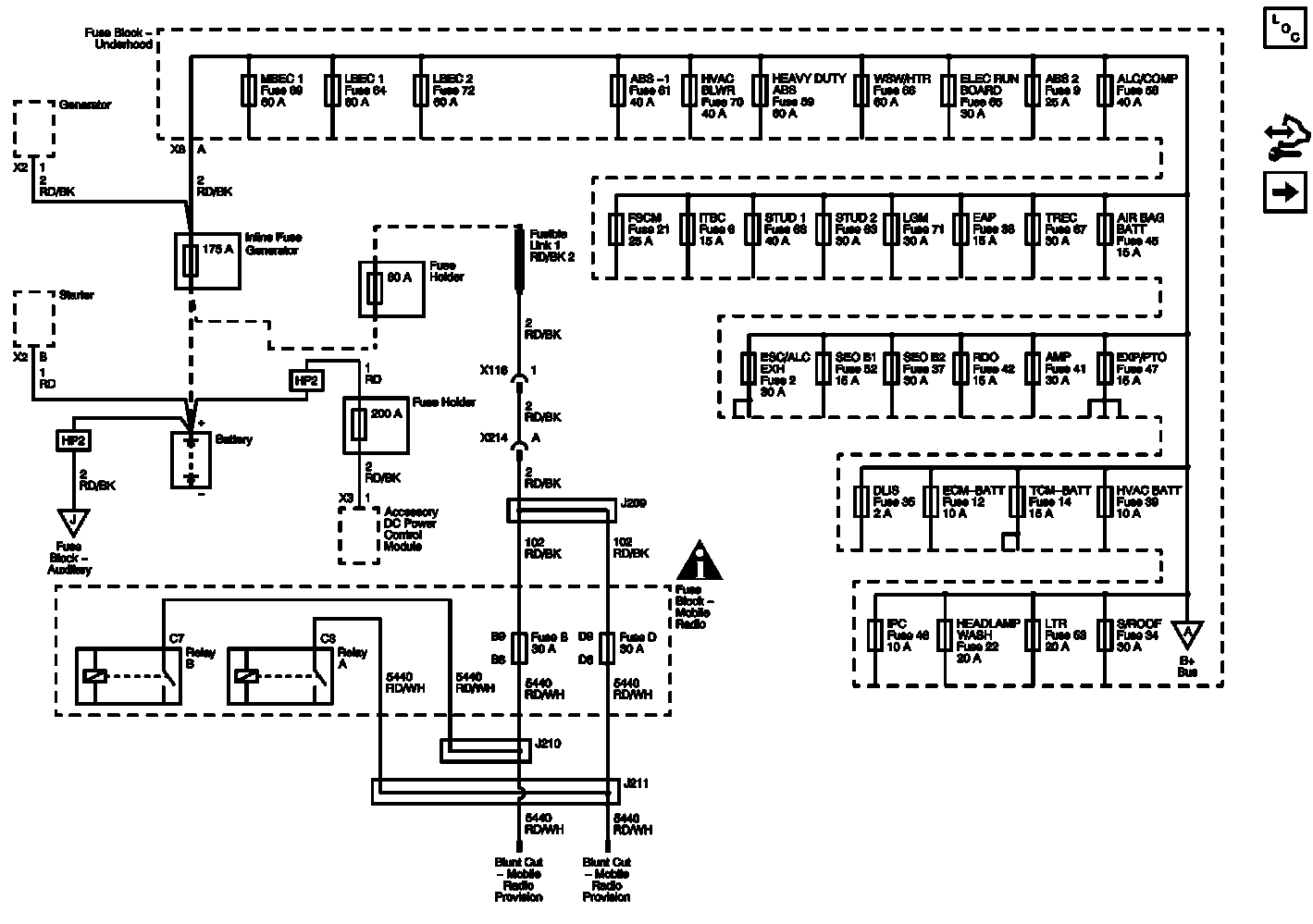

Home >> Cadillac >> 2013 >> Escalade Hybrid, RWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematic and Routing Diagrams >> Power Distribution Wiring Schematics >> B+ Bus (1 of 3)
