AUX PWR, AUX PWR 2, LBEC 2, PDM, and REAR WPR Fuses

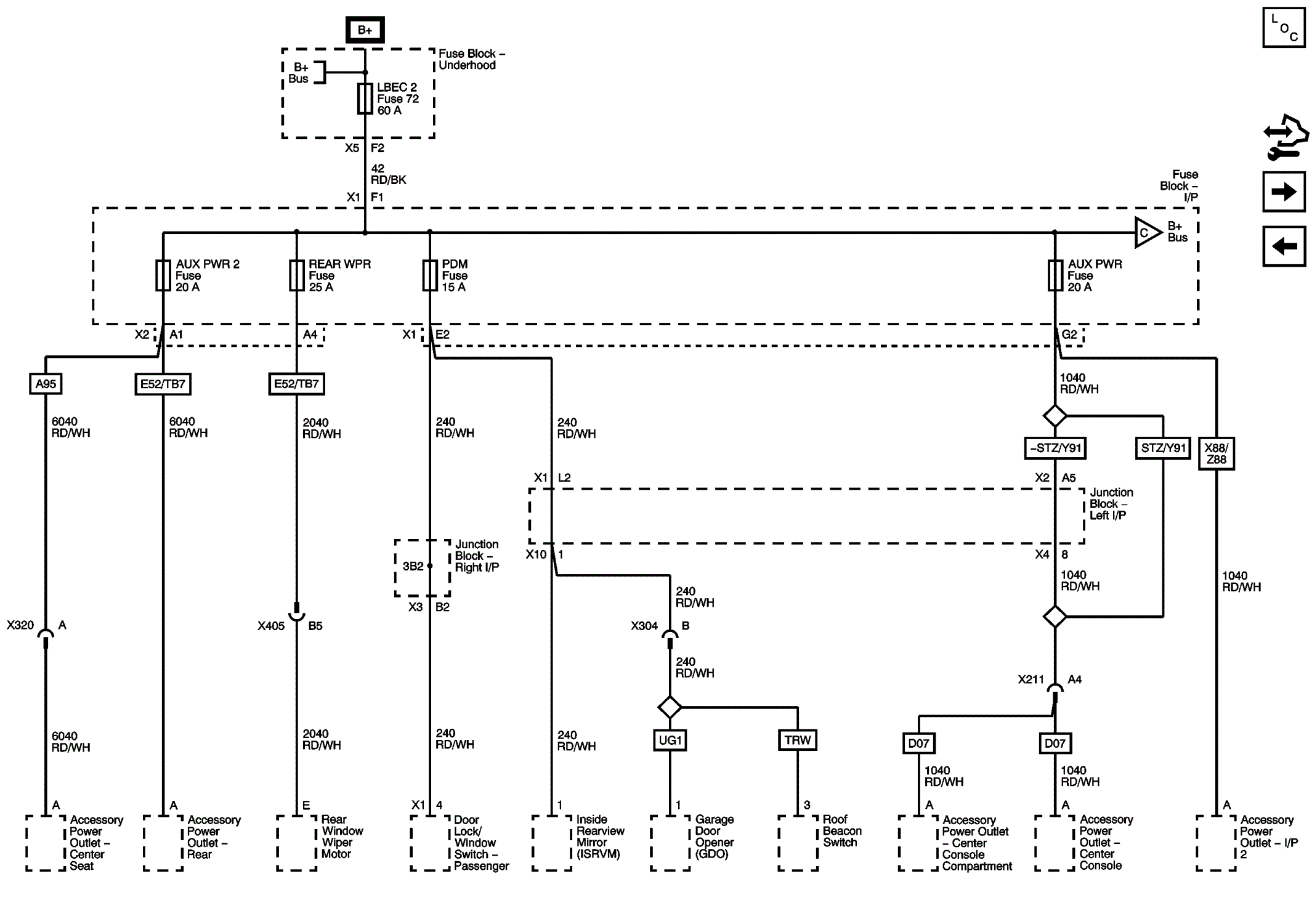

Fig 1: AUX PWR, AUX PWR 2, LBEC 2, PDM, and REAR WPR Fuses Wiring Schematic
GM2760334Courtesy of GENERAL MOTORS COMPANY
