AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/PTO, and TREC Fuses

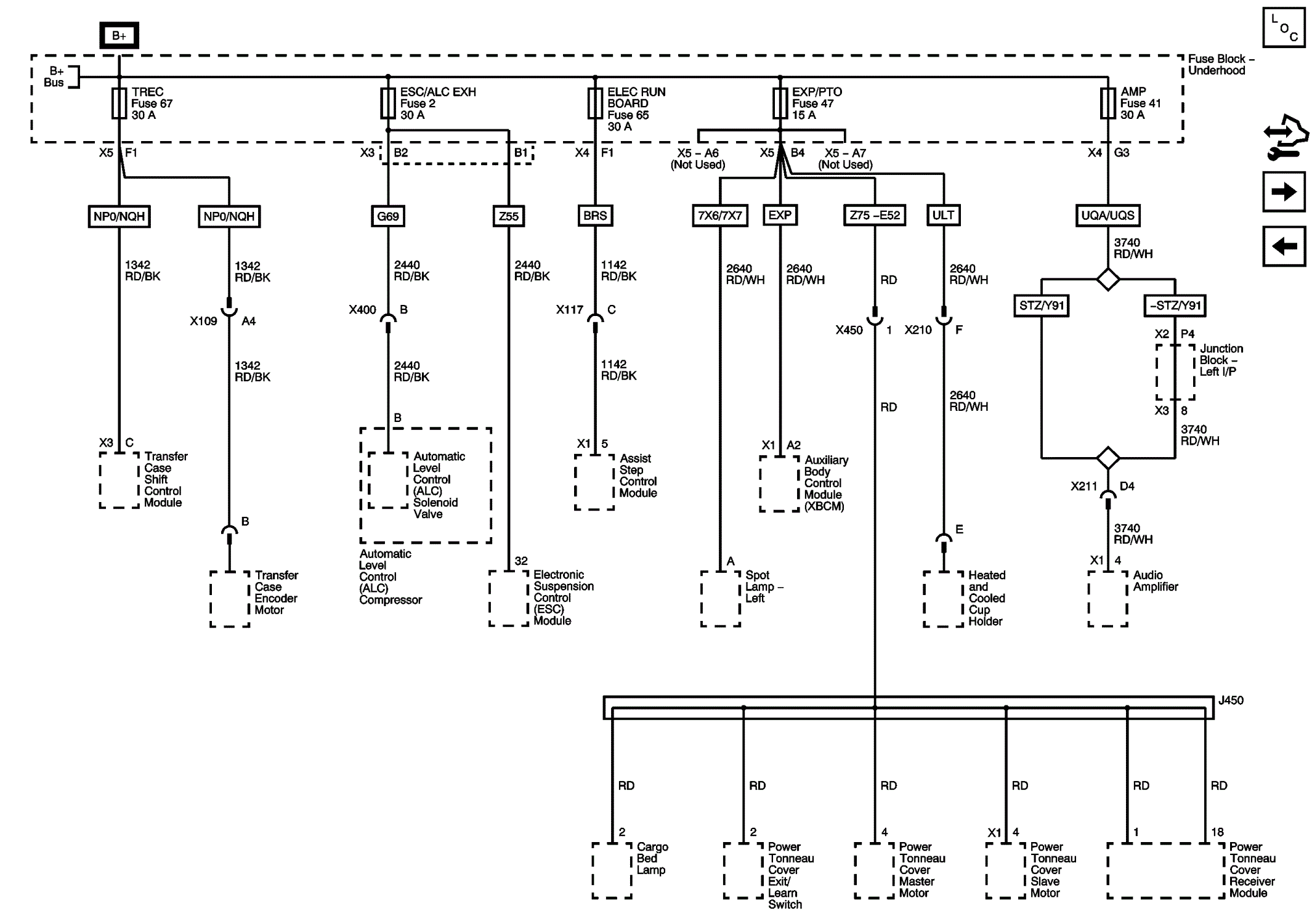

Fig 1: AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/PTO, and TREC Fuses Wiring Schematic

GM2760339

Courtesy of GENERAL MOTORS COMPANY
