ALC/COMP, BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 1, LGM, REAR HVAC and RT STOP TRN Fuses

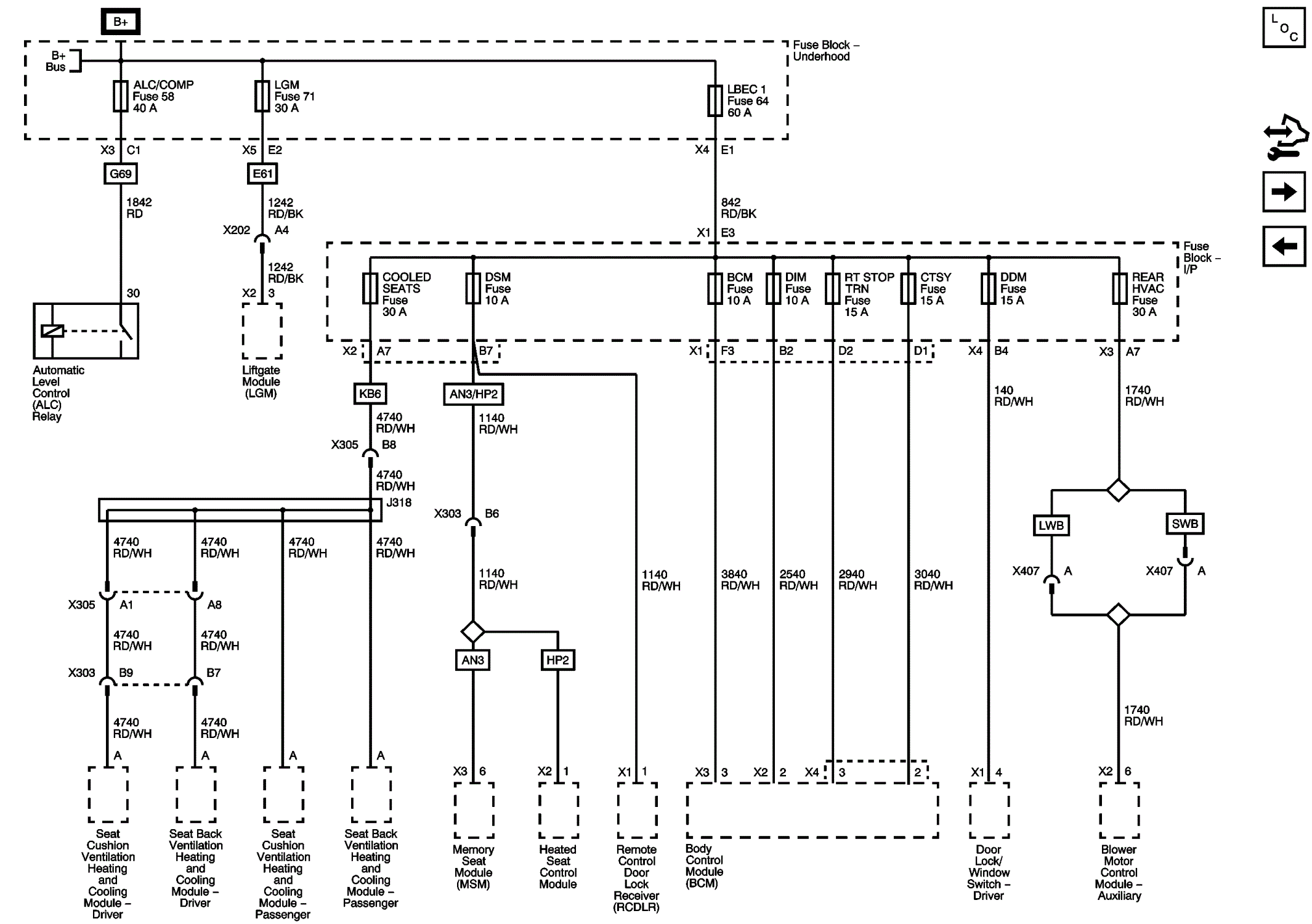

Fig 1: ALC/COMP, BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 1, LGM, REAR HVAC and RT STOP TRN Fuses Wiring Schematic
GM2760337Courtesy of GENERAL MOTORS COMPANY
