A/C CMPRSR, FRT WASH, FUEL PUMP, HORN, REAR DEFOG, and REAR WASH Fuses

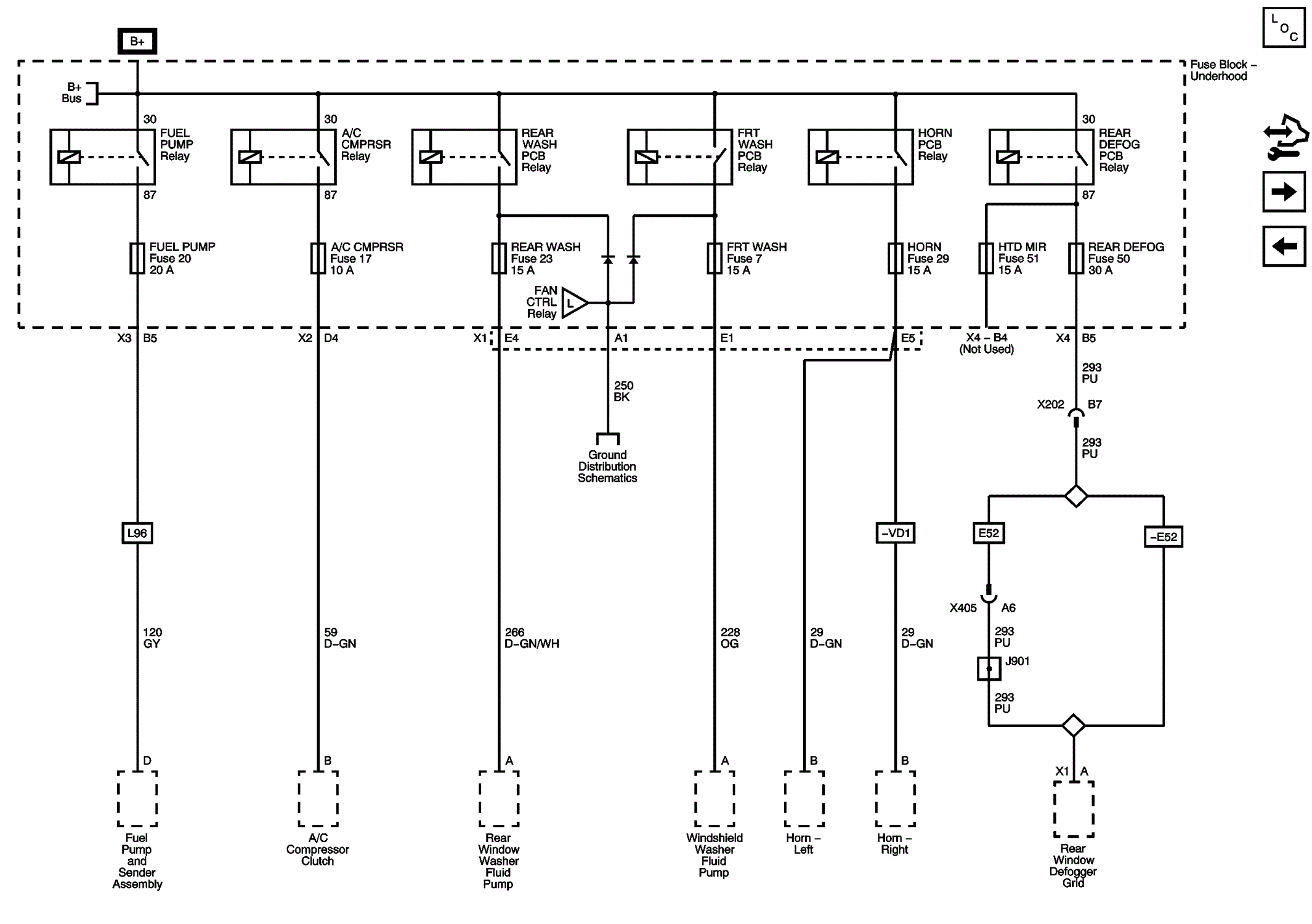

Fig 1: A/C CMPRSR, FRT WASH, FUEL PUMP, HORN, REAR DEFOG, and REAR WASH Fuses Wiring Schematic

GM2761325

Courtesy of GENERAL MOTORS COMPANY
