Ground Distribution Wiring Schematics: G400

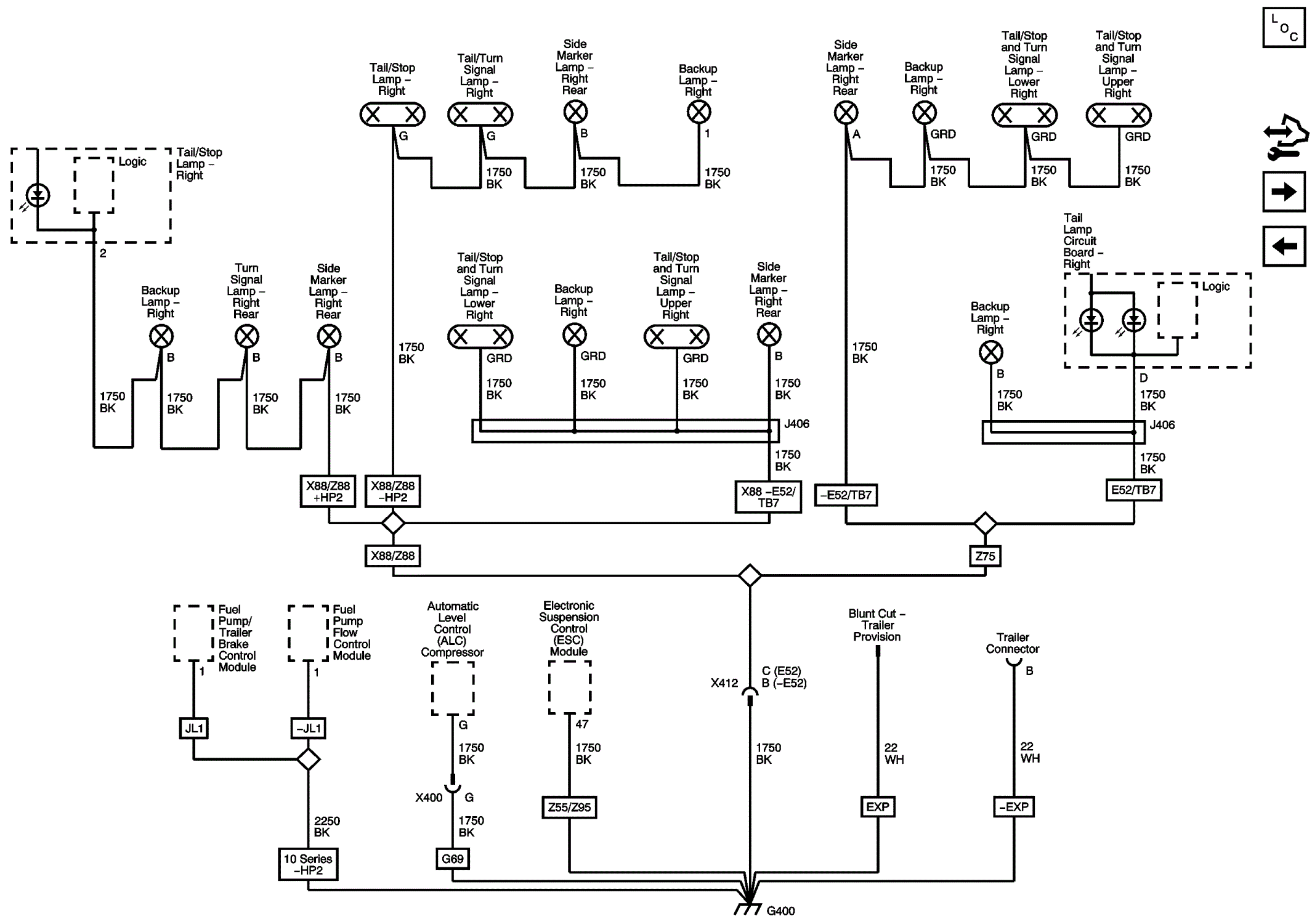

Fig 1: G400 Wiring Schematic

GM2761363

Courtesy of GENERAL MOTORS COMPANY
