Ground Distribution Wiring Schematics: G201

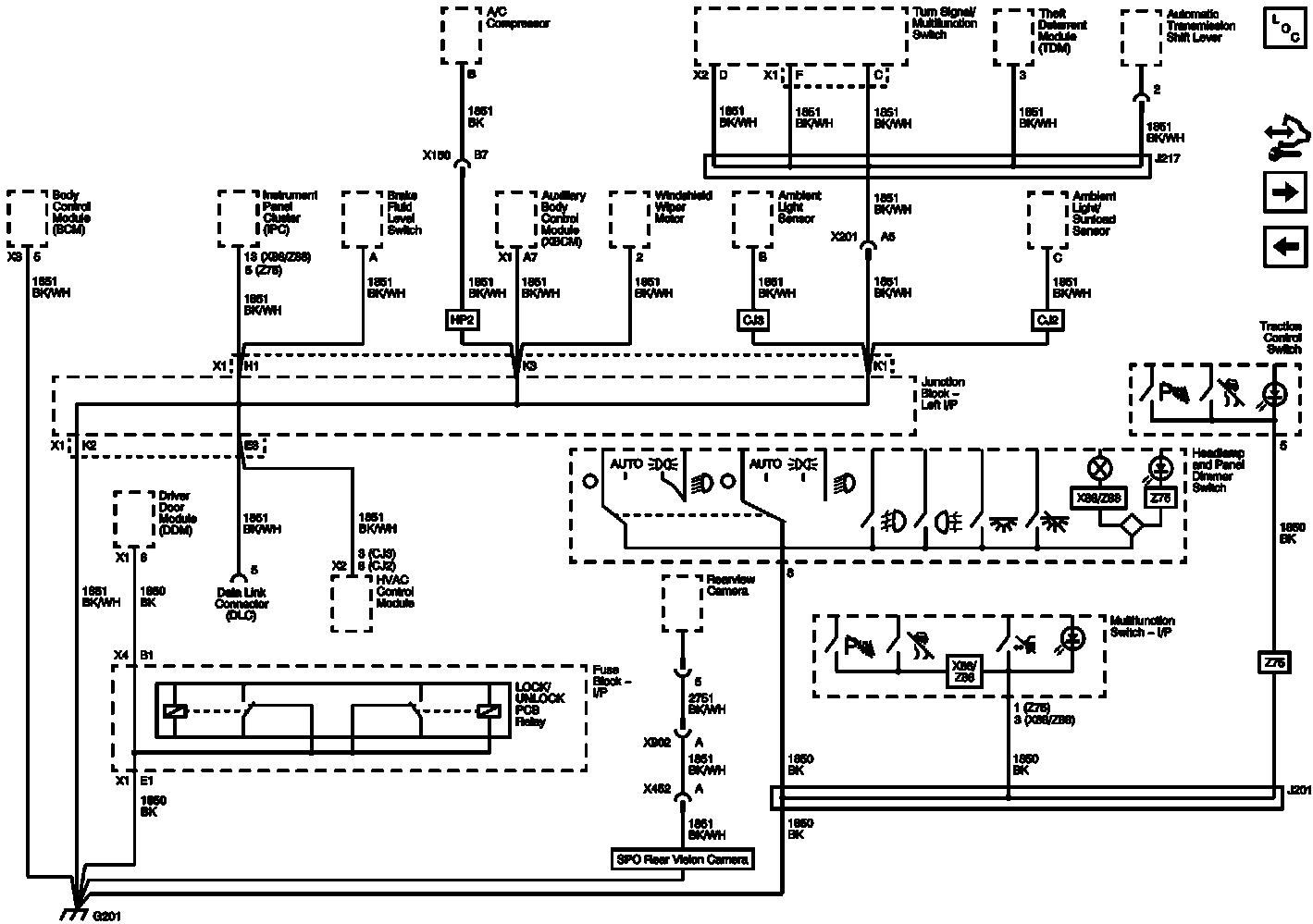

Fig 1: G201 Wiring Schematic

GM2761359

Courtesy of GENERAL MOTORS COMPANY
