G101 (Z88 or Z75 with 10 Series and without HP2)

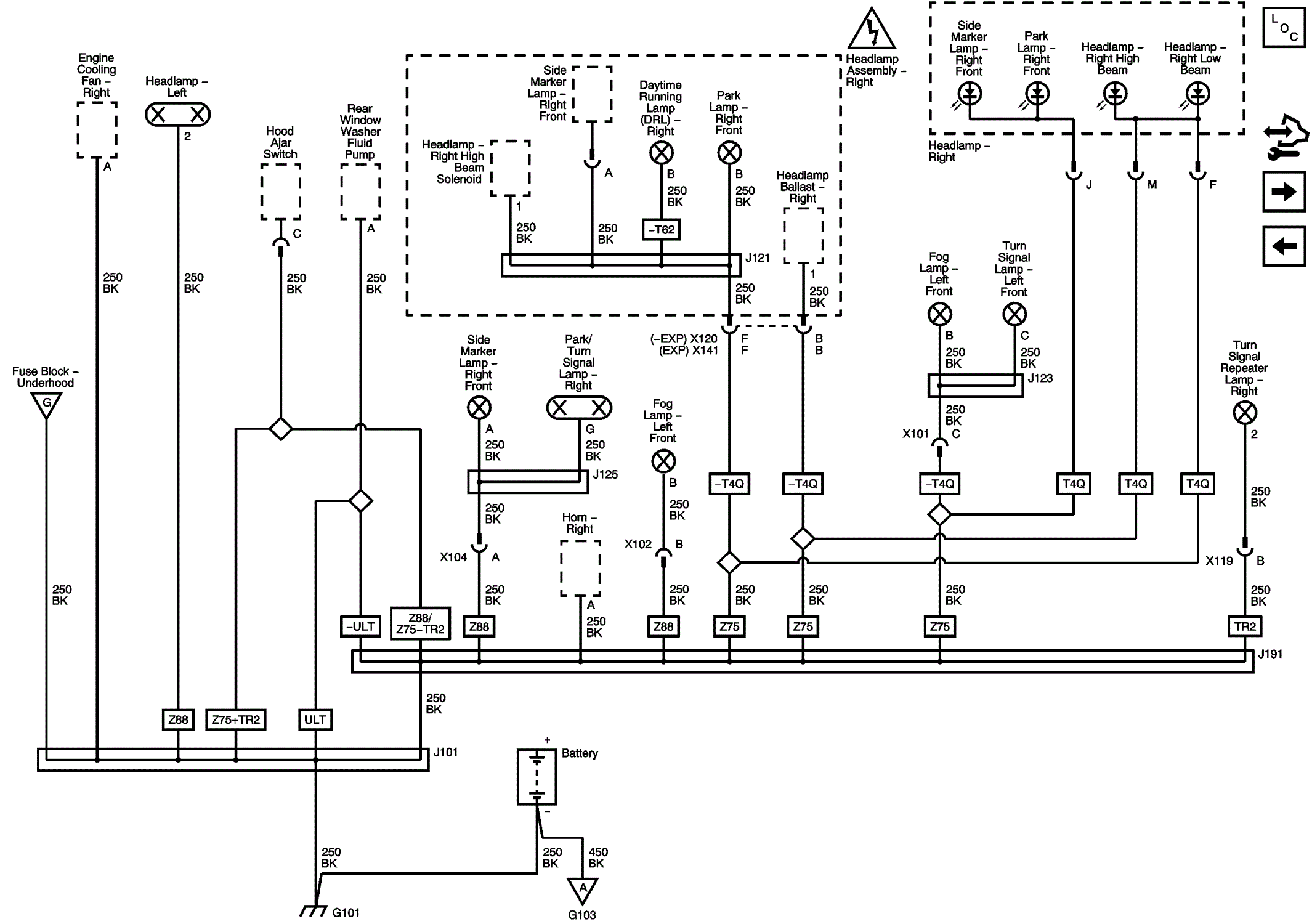

Fig 1: G101 Wiring Schematic (Z88 or Z75 with 10 Series and without HP2)

GM2761347

Courtesy of GENERAL MOTORS COMPANY
