Ground Distribution Wiring Schematics: G100

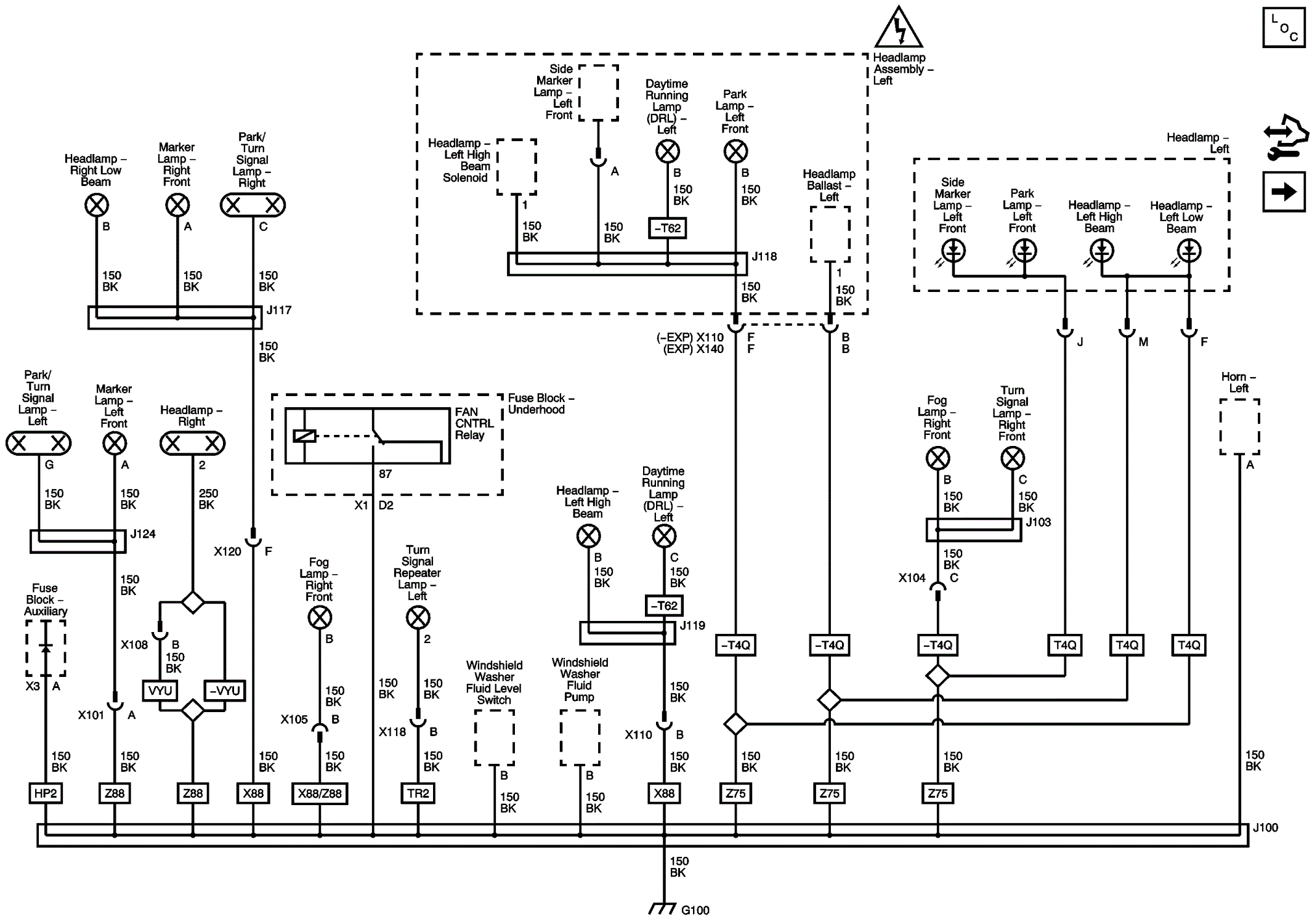

Fig 1: G100 Wiring Schematic

GM2761342

Courtesy of GENERAL MOTORS COMPANY
