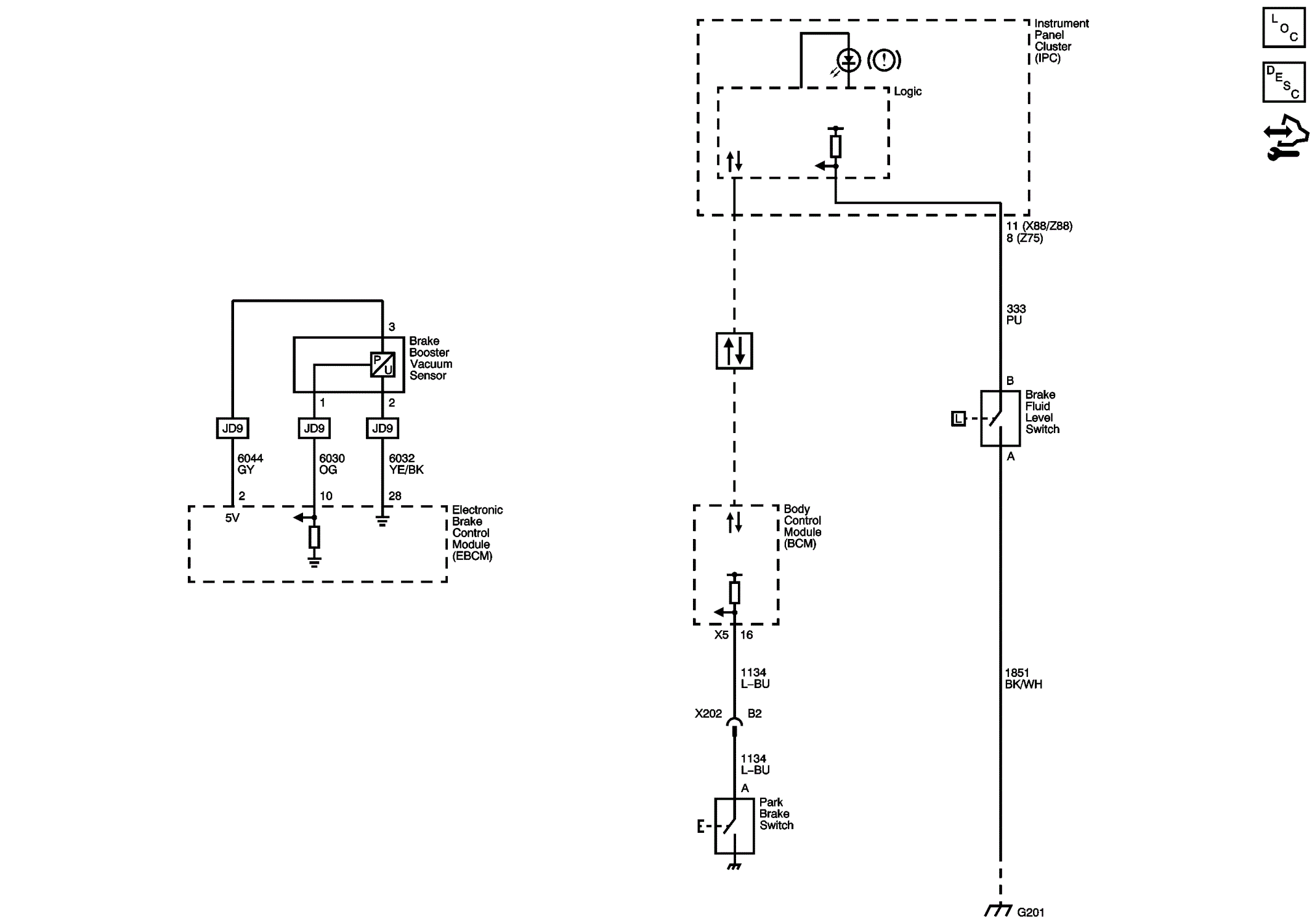

Home >> Cadillac >> 2013 >> Escalade Hybrid, RWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brake
