Knee Bolster Replacement (Cadillac)

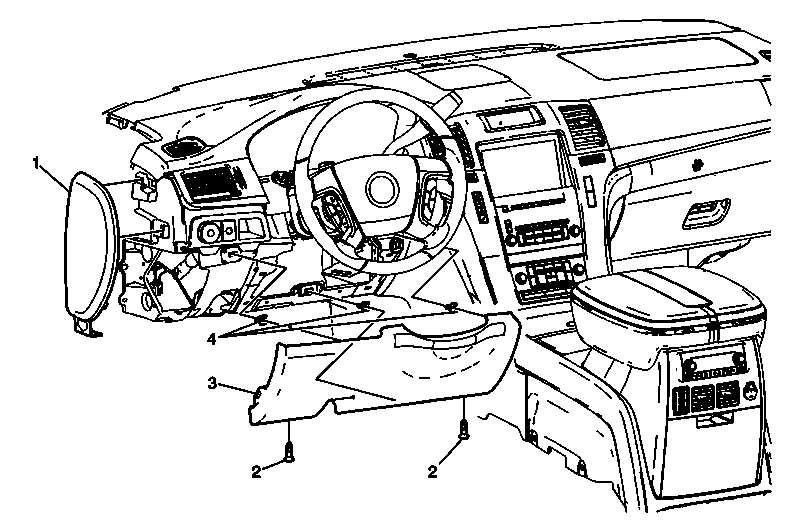

Fig 1: View Of Knee Bolster Assembly & Components (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the park brake release handle. Refer to Parking Brake Release Handle Assembly Replacement .
1	Left Outer Trim Cover TIP: Refer to Instrument Panel Outer Trim Cover Replacement (Except Cadillac) , Instrument Panel Outer Trim Cover Replacement (Cadillac) .
2	Knee Bolster Assembly Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Knee Bolster Assembly Procedure Disconnect the electrical connections, if applicable. If replacing the knee bolster assembly, transfer all necessary components.
4	Retainer Clip (Qty: 4)
