Section 2 (Automatic Transmission - 2ML70 - Description And Operation)
>>
Description and Operation
>>
Automatic Transmission Hydraulic Diagrams
>>
Power Off Low Default
>>
Power Off Low Default - A/T System Hydraulic Diagram
Power Off Low Default - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.

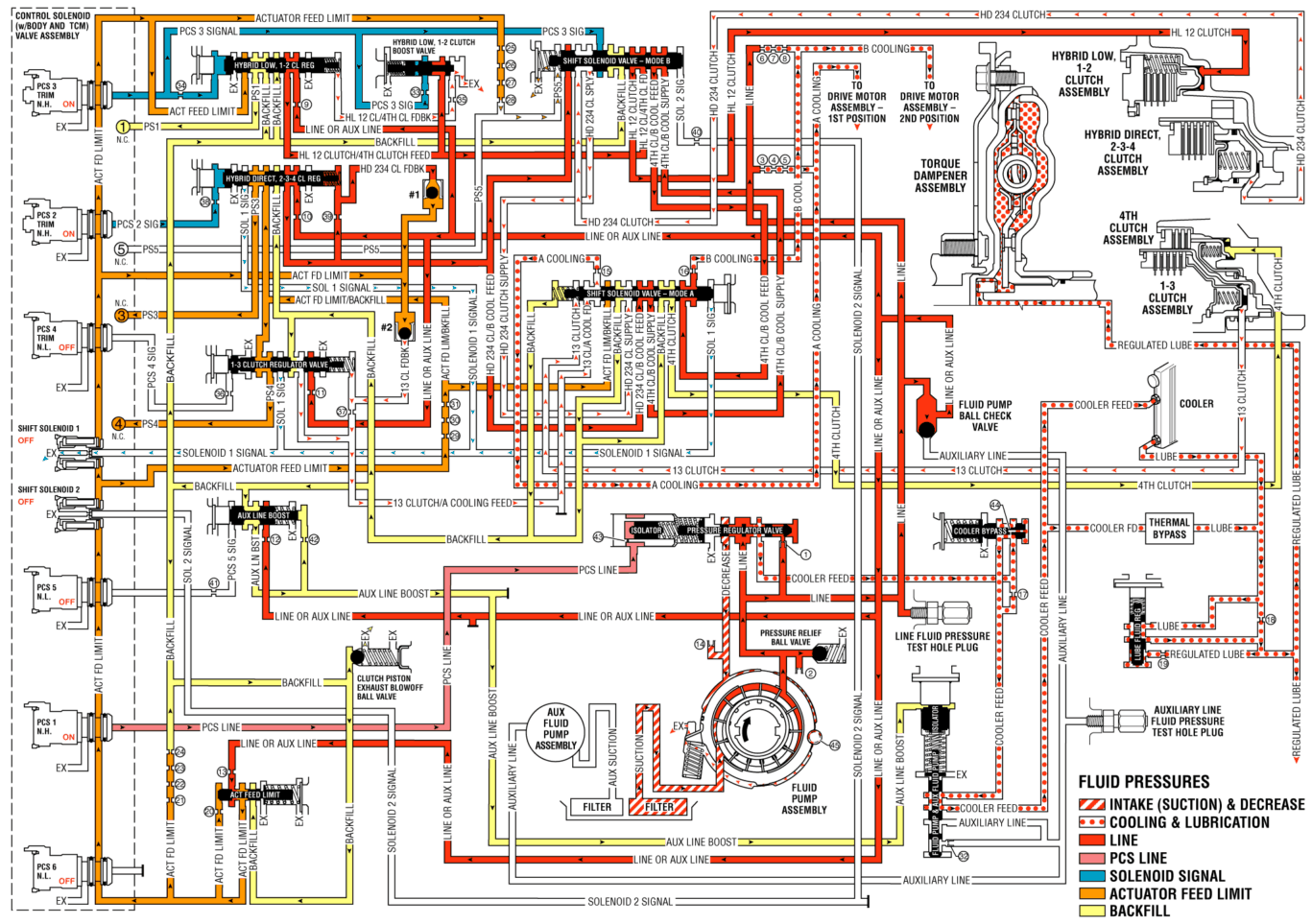

Fig 1: Power Off Low Default
Courtesy of GENERAL MOTORS COMPANY
