Removal Procedure

WARNING: This page is about a different variant/trim than selected.

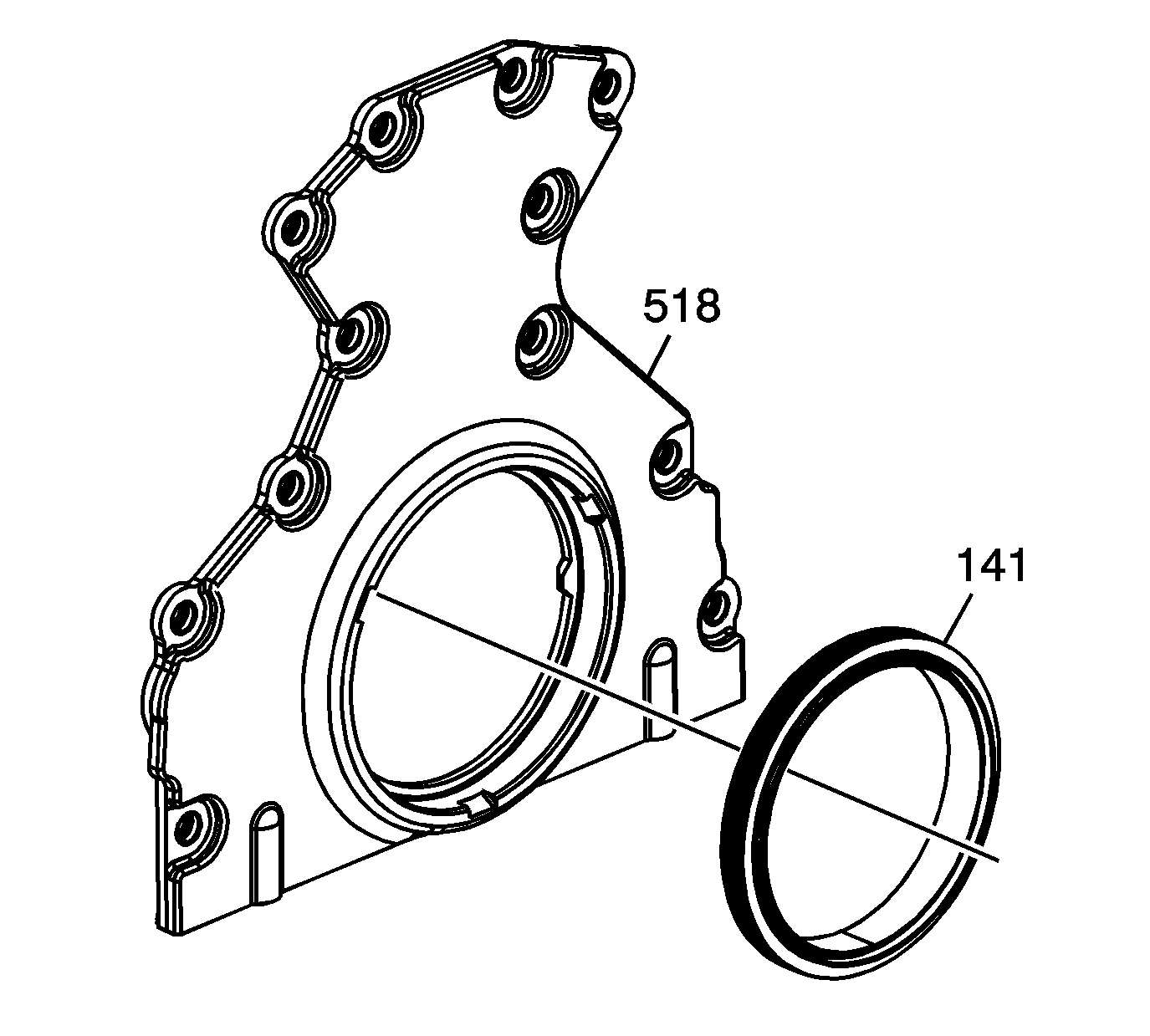

    Fig 1: Crankshaft Rear Oil Seal & Housing
    GM1552461Courtesy of GENERAL MOTORS COMPANY
  1. Remove the automatic transmission flexplate. Refer to Automatic Transmission Flex Plate Replacement .
  2. Remove and discard the crankshaft rear oil seal (141).
