Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Rear

WARNING: This page is about a different variant/trim than selected.

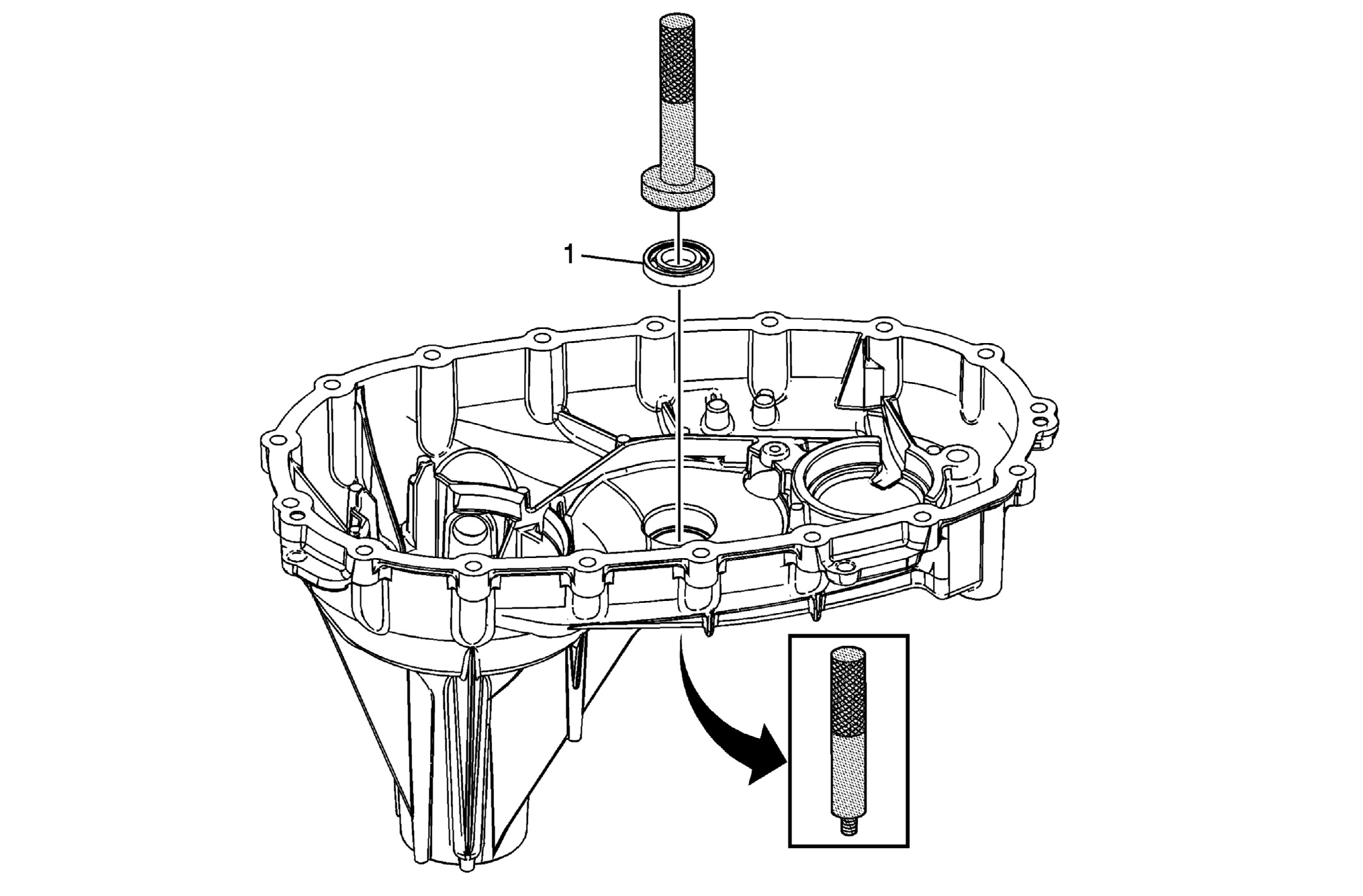

Fig 1: View Of Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ensure the bearing is installed squarely into the bearing bore.
1	Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly Procedure Ensure the printing on the bearing is facing upward. A suitable adapter is required to use with the J 8092 driver to install. Press the bearing until the bearing bottoms on the rear case half. Special Tools J 8092 Universal Driver For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Ensure the bearing is installed squarely into the bearing bore.

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly

Procedure

Special Tools
J 8092 Universal Driver
For equivalent regional tools, refer to Special Tools .
