High/Low Clutch
WARNING: This page is about a different variant/trim than selected.

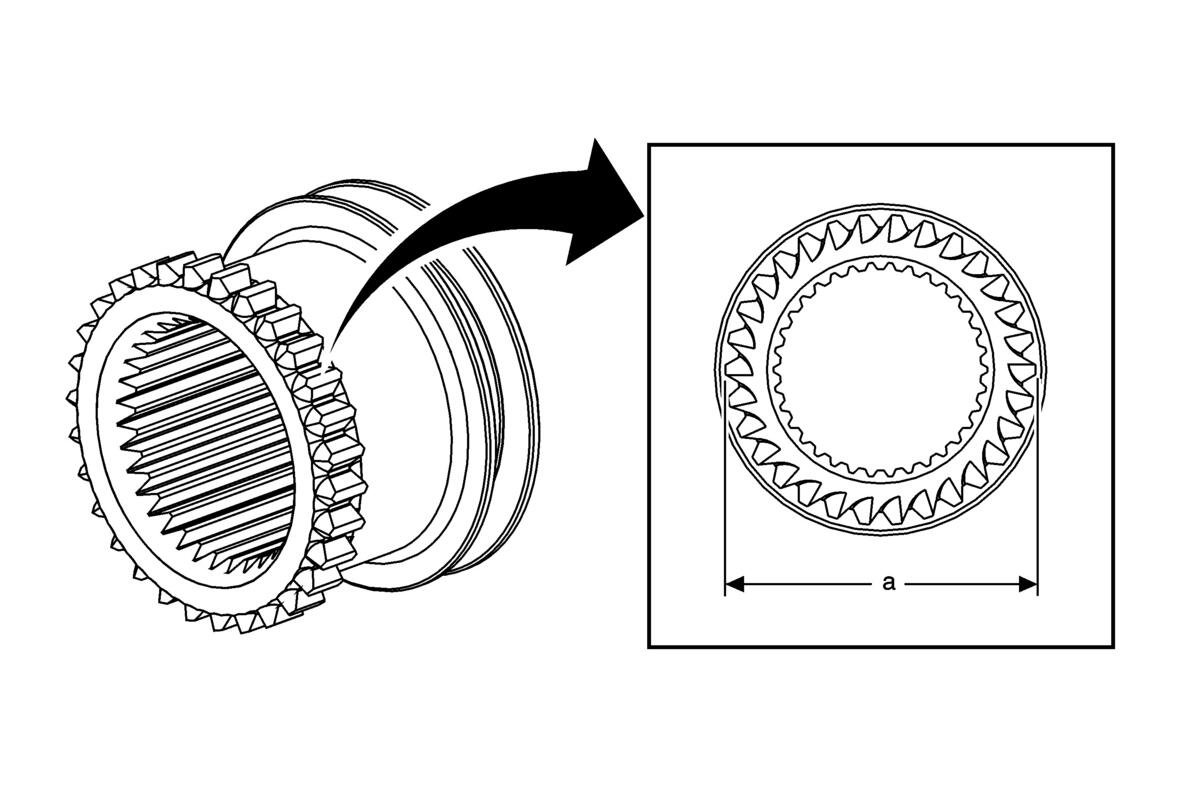

The first design high/low clutch can be identified as having a 30 tooth design with a gear tooth outside diameter (a) of 65.50 mm (2.58 in).
The second design high/low clutch can be identified as having a 29 tooth design with a gear tooth outside diameter (a) of 63.25 mm (2.49 in).
