Antilock Brake System Wiring Schematics: Sensors

WARNING: This page is about a different car, the 2013 GMC Yukon XL and 2013 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

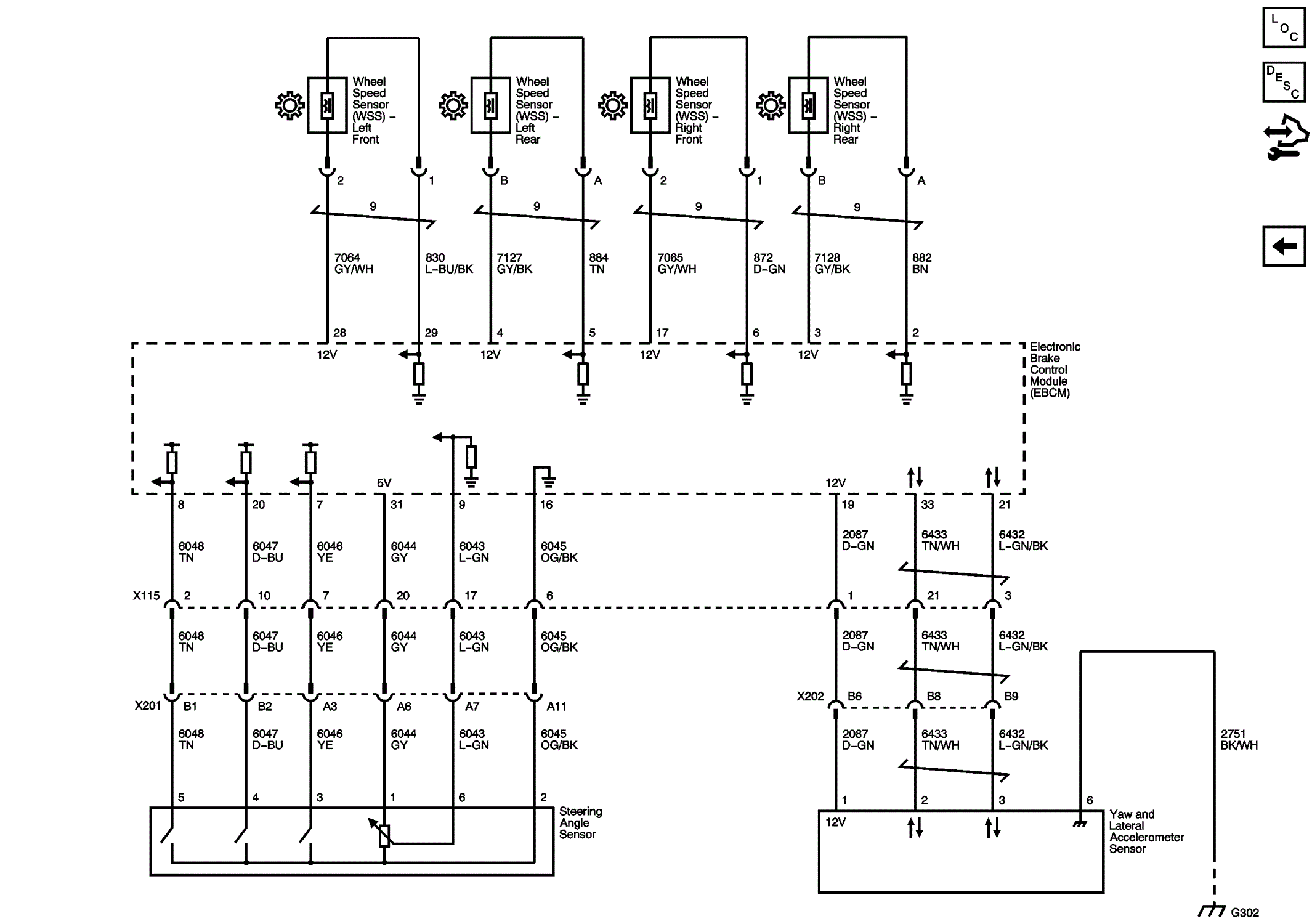

Fig 1: Antilock Brake System Sensors Wiring Schematic
GM2759083Courtesy of GENERAL MOTORS COMPANY
