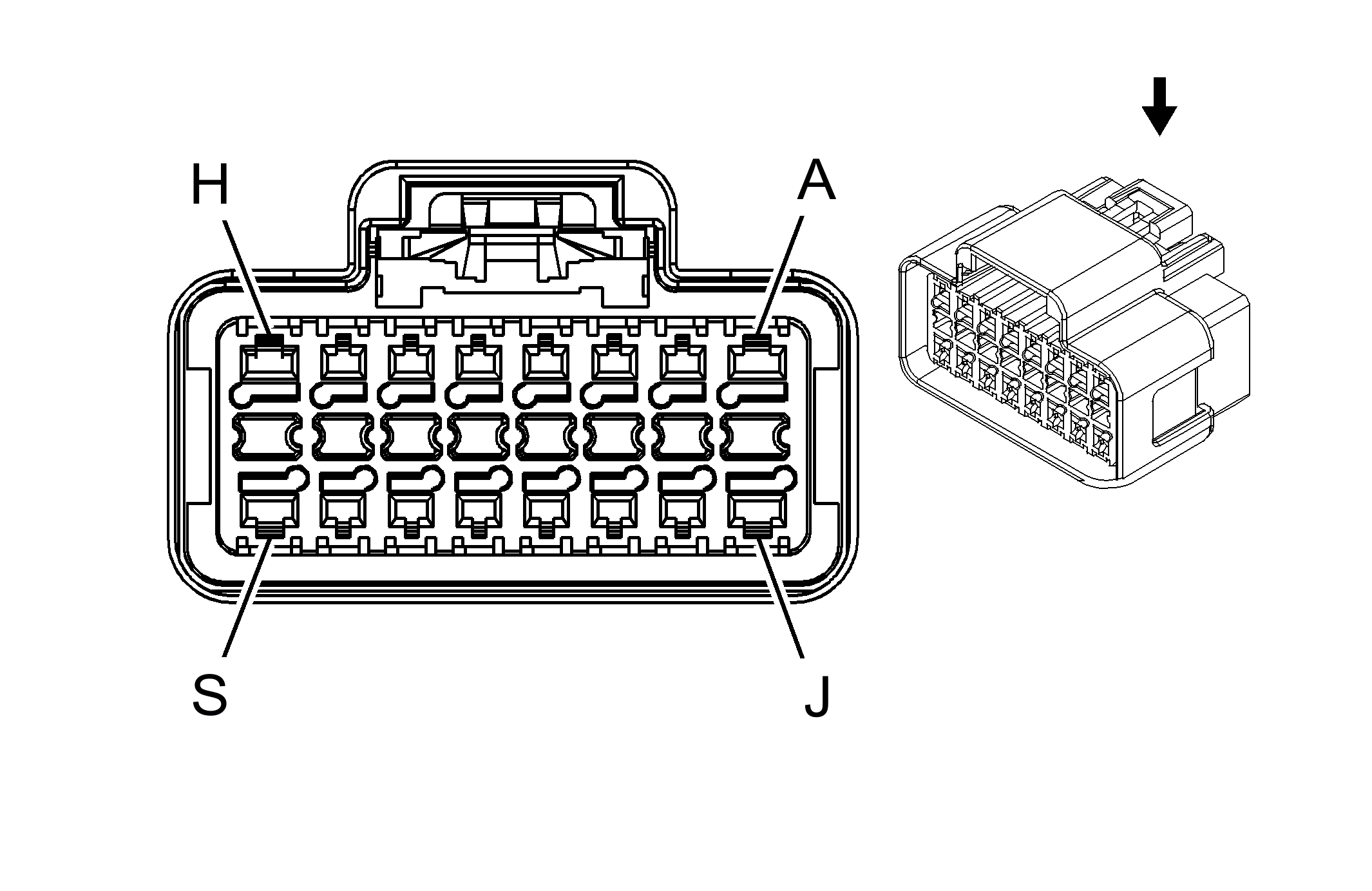

X205 Brake/Clutch Harness to Instrument Panel Harness Connector End View
Connector Part Information
- Harness Type: Brake/Clutch
- OEM Connector: 13677819
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F GT FBT 150/280 Series (BK)
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15336224
- Service Connector: 88986321
- Description: 16-Way M GT 150, 280 Series, Sealed (BK)
|
Terminal Part Information
- Pins: B-G, K-N, P, R
- Terminated Lead: 13575492
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
- Pins:A, H, J, S
- Terminated Lead: 13575497
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Terminal Part Information
- Pins: B-G, K-N, P, R
- Terminated Lead: 13327129
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 15304702/19
- Core/Insulation Crimp: Pins - B-G, L-N, P, R: E/C
- Core/Insulation Crimp: Pin - K: E/4
- Pins: A, H, J, S
- Terminated Lead: 13575505
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-5 (PU)
- Terminal/Tray: 15304722/8
- Core/Insulation Crimp: E/C
|
X205 Brake/Clutch Harness to Instrument Panel Harness
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| A |
0.5 YE |
5361 |
Brake Apply Sensor Signal |
A |
0.5 YE |
5361 |
Brake Apply Sensor Signal |
| - |
- |
Not Used (HP2) |
| B |
0.35 L-BU |
1162 |
Accelerator Pedal Position (APP) Sensor 2 Signal |
B |
0.35 L-BU |
1162 |
Accelerator Pedal Position (APP) Sensor 2 Signal |
| C |
0.35 TN |
1274 |
5-Volt Reference |
C |
0.35 TN |
1274 |
5-Volt Reference |
| D |
0.35 D-BU |
1161 |
Accelerator Pedal Position (APP) Sensor 1 Signal |
D |
0.35 D-BU |
1161 |
Accelerator Pedal Position (APP) Sensor 1 Signal |
| E |
0.35 PU |
1272 |
Low Reference |
E |
0.35 PU |
1272 |
Low Reference |
| F |
0.35 TN |
552 |
12-Volt Reference |
F |
0.35 TN |
552 |
12-Volt Reference |
| G |
0.35 GY |
598 |
Ignition Voltage |
G |
0.35 GY |
598 |
12-Volt Reference (HP2) |
| H |
0.35 YE |
6817 |
Ignition Voltage |
H |
0.35 YE |
6817 |
Ignition Voltage |
| - |
- |
Not Used (HP2) |
| J |
0.5 WH |
5359 |
Brake Apply Sensor Supply Voltage |
J |
0.5 WH |
5359 |
Brake Apply Sensor Supply Voltage |
| - |
- |
Not Used (HP2) |
| K |
0.5 BN |
5360 |
Low Reference |
K |
0.5 BN |
5360 |
Low Reference |
| - |
- |
Not Used (HP2) |
| L |
0.35 WH/BK |
1164 |
5-Volt Reference |
L |
0.35 WH/BK |
1164 |
5-Volt Reference |
| M |
0.35 BN |
1271 |
Low Reference |
M |
0.35 BN |
1271 |
Low Reference |
| N |
0.35 L-GN |
526 |
Stop Lamp Switch Signal |
N |
0.35 L-GN |
526 |
Stop Lamp Switch Signal |
| P |
0.35 L-BU/WH |
6311 |
Cruise/ETC/TCC Brake Signal |
P |
0.35 L-BU/WH |
6311 |
Cruise/ETC/TCC Brake Signal |
| R |
0.35 PK |
239 |
Run/Crank Ignition 1 Voltage |
R |
0.35 PK |
239 |
Run/Crank Ignition 1 Voltage |
| S |
0.5 YE/BK |
5813 |
Park Enable (5W4 or PPV) |
S |
0.5 YE/BK |
5813 |
Park Enable (5W4 or PPV) |
