X115 Chassis Harness to Instrument Panel Harness Connector End View

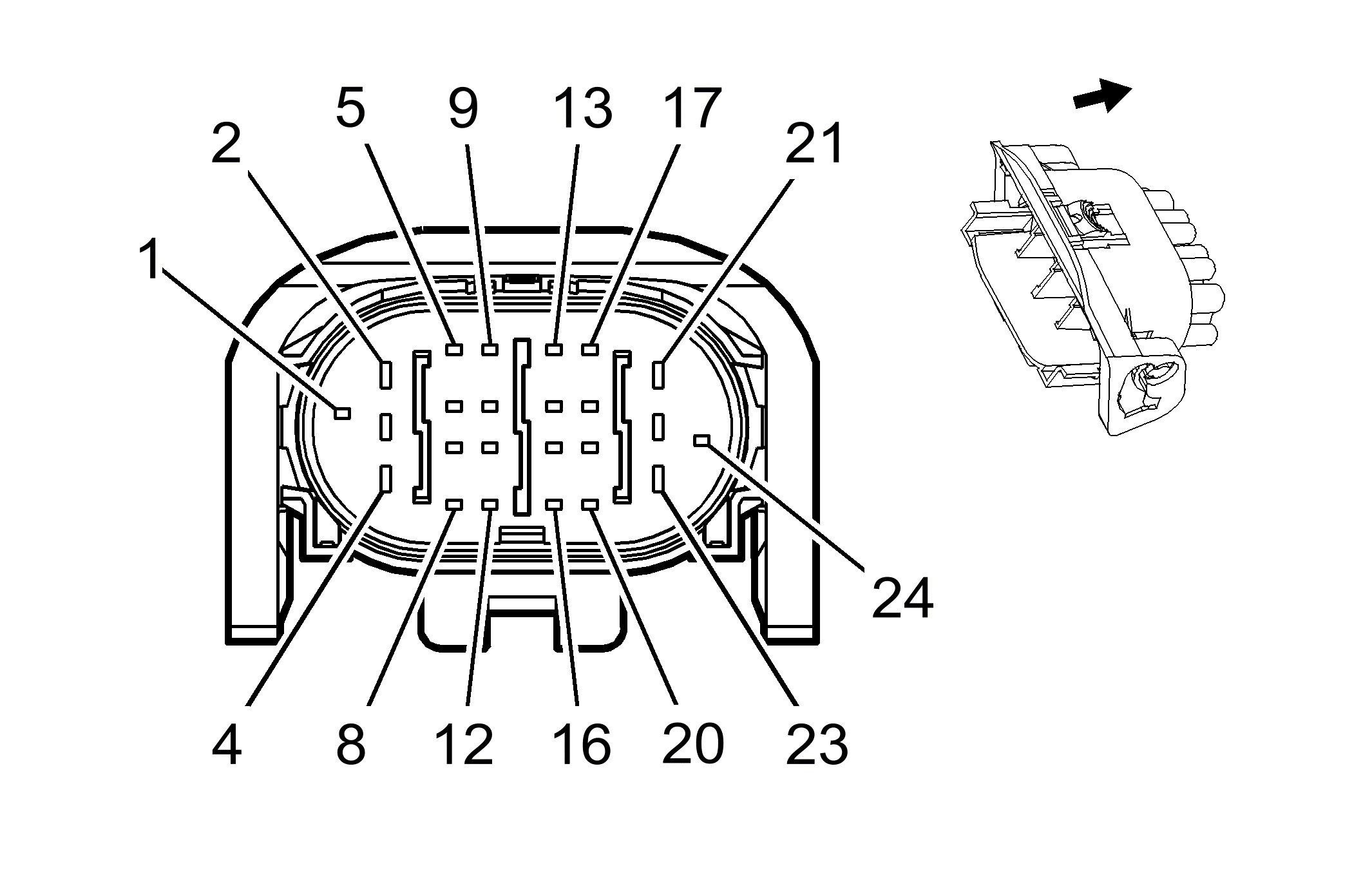

Connector Part Information Harness Type: Instrument Panel OEM Connector: 13706562 Service Connector: Pending Description: 24-Way F GT 150 280 Series Sealed (GY)

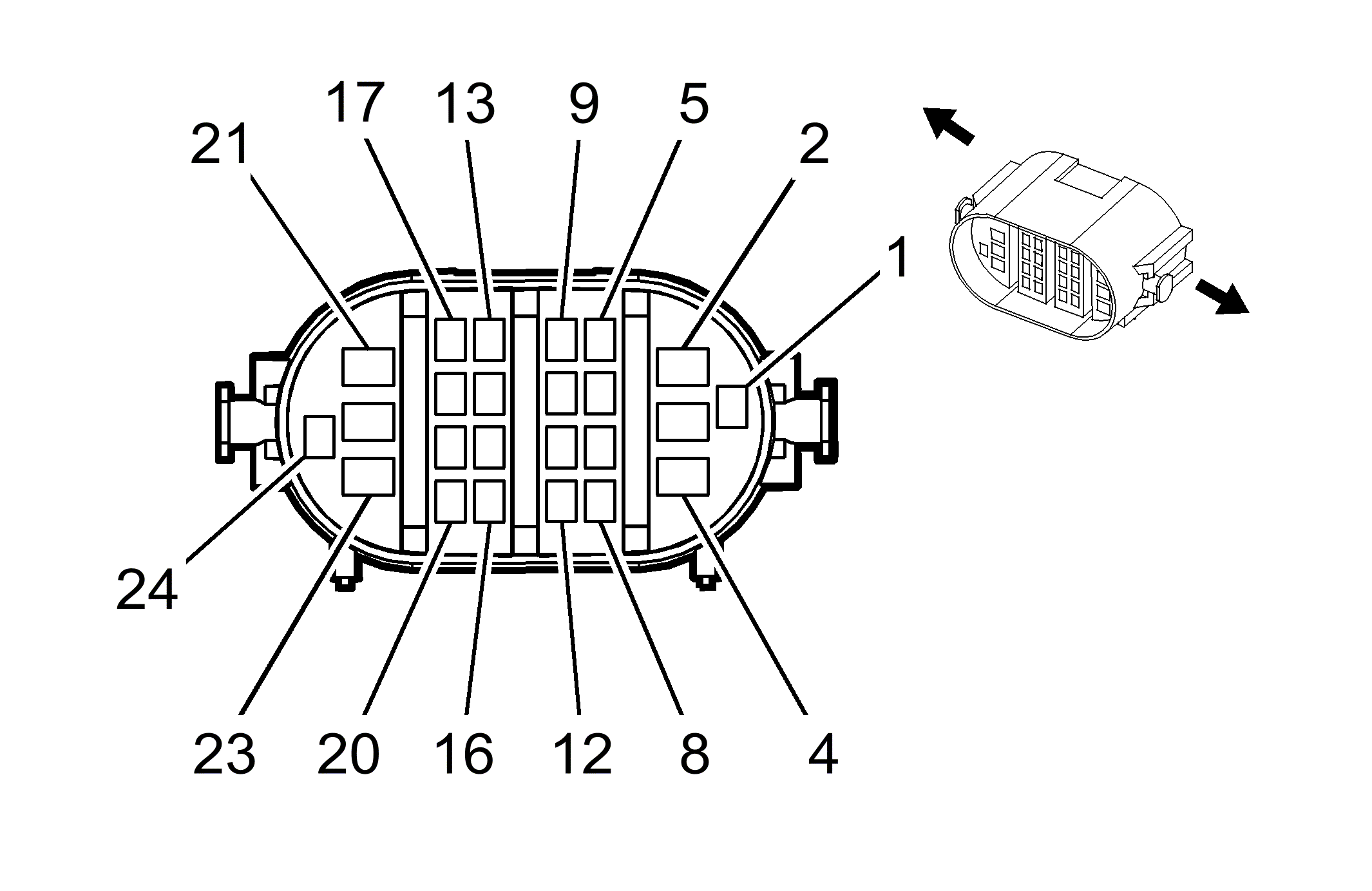

Connector Part Information Harness Type: Chassis OEM Connector: 13706569 Service Connector: Pending Description: 24-Way M GT 150 280 Series Sealed (GY)

Terminal Part Information Pins: 1, 5 (EXP), 6, 7, 8 (T79), 9-11, 13, 14, 16-20, 24 Terminated Lead: Pending Release Tool: J-38125-29 Diagnostic Test Probe: J-35616-2A (GY) Terminal/Tray: 15496531/8 Core/Insulation Crimp: E/A Pins: 5 (without E52), 8 (without E52), 15 Terminated Lead: Pending Release Tool: J-38125-29 Diagnostic Test Probe: J-35616-2A (GY) Terminal/Tray: 15496531/8 Core/Insulation Crimp: 2/A Pins: 2, 3, 21, 23 Terminated Lead: Pending Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Not Available Core/Insulation Crimp: Not Available Pin: 22 Terminated Lead: Pending Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Not Available Core/Insulation Crimp: Not Available

Terminal Part Information Pins: 1, 5 (EXP), 6, 7, 8 (T79), 9-11, 13, 14, 16-20, 24 Terminated Lead: 13575397 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-3 (GY) Terminal/Tray: 15326269/19 Core/Insulation Crimp: E/4 Pins: 5 (without E52), 8 (without E52), 15 Terminated Lead: 13576364 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-3 (GY) Terminal/Tray: 15326269/19 Core/Insulation Crimp: E/1 Pins: 2, 3, 21 Terminated Lead: Pending Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 15304731/19 Core/Insulation Crimp: E/5 Pin: 22 Terminated Lead: Pending Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 15304732/8 Core/Insulation Crimp: A/5 Pin: 23 Terminated Lead: 13580826 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 15304731/19 Core/Insulation Crimp: C/5

X115 Chassis Harness to Instrument Panel Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 D-GN	2087	5-Volt Reference (except HP2)	1	0.5 D-GN	2087	5-Volt Reference (except HP2)
2	0.5 TN	6048	Steering Angle Sensor Phase C	2	0.35 TN	6048	Steering Angle Sensor Phase C
3	0.5 L-GN/BK	6432	CAN Bus Low Serial Data (except HP2)	3	0.5 L-GN/BK	6432	CAN Bus Low Serial Data (except HP2)
4	-	-	Not Used	4	-	-	Not Used
5	0.5 PU	7142	Trailer Fog Lamp (EXP)	5	0.5 PU	7142	Trailer Fog Lamp (EXP)
	0.8 TN	294	Door Lock Actuator Unlock Control (without E52)		0.8 TN	294	Door Lock Actuator Unlock Control (without E52)
6	0.5 OG/BK	6045	Low Reference	6	0.35 OG/BK	6045	Low Reference
7	0.5 YE	6046	Steering Angle Sensor Phase A	7	0.35 YE	6046	Steering Angle Sensor Phase A
8	0.8 GY	295	Door Lock Actuator Lock Control (without E52)	8	0.8 GY	295	Door Lock Actuator Lock Control (without E52)
	0.5 OG	122	Rear Fog Lamp Supply Voltage (T79)		0.5 OG	122	Rear Fog Lamp Supply Voltage (T79)
9	0.35 PU	5357	Right Tail Lamp Outage Detection Signal (Z75 with E52)	9	0.5 PU	5357	Right Tail Lamp Outage Detection Signal (Z75 with E52)
10	0.5 D-BU	6047	Steering Angle Sensor Phase B	10	0.35 D-BU	6047	Steering Angle Sensor Phase B
11	0.35 YE	5356	Left Tail Lamp Outage Detection Signal (Z75 with E52)	11	0.5 YE	5356	Left Tail Lamp Outage Detection Signal (Z75 with E52)
12	-	-	Not Used	12	-	-	Not Used
13	0.5 YE/BK	2500	High Speed GMLAN Serial Data Bus + (except HP2)	13	0.5 YE/BK	2500	High Speed GMLAN Serial Data Bus + (except HP2)
14	0.5 D-GN/WH	817	Vehicle Speed Signal	14	0.35 D-GN/WH	817	Vehicle Speed Signal
15	0.35 L-BU	1620	CHMSL Control (EXP)	15	0.8 L-BU	1620	CHMSL Control (EXP)
16	0.5 YE	2501	High Speed GMLAN Serial Data Bus - (except HP2)	16	0.5 TN	2501	High Speed GMLAN Serial Data Bus - (except HP2)
17	0.5 L-GN	6043	Steering Angle Sensor Signal	17	0.35 L-GN	6043	Steering Angle Sensor Signal
18	0.5 RD/WH	840	Battery Positive Voltage (UFT)	18	0.35 RD/WH	840	Battery Positive Voltage (UFT)
19	0.5 L-BU	5986	Serial Data Communication Enable (except HP2)	19	0.35 L-BU	5986	Serial Data Communication Enable (except HP2)
20	0.5 GY	6044	5-Volt Reference	20	0.35 GY	6044	5-Volt Reference
21	0.5 TN/WH	6433	CAN Bus High Serial Data (except HP2)	21	0.5 TN/WH	6433	CAN Bus High Serial Data (except HP2)
22	3 D-BU	47	Trailer Auxiliary Control	22	3 D-BU	47	Trailer Auxiliary Control
23	0.35 PK	7141	Trailer Connected Signal Trailer (EXP)	23	0.35 PK	7141	Trailer Connected Signal Trailer (EXP)
24	0.5 PK	739	Ignition Voltage (G69)	24	0.35 PK	739	Ignition Voltage (G69)
