X109 Engine Harness to Instrument Panel Harness Connector End View (except HP2 and without NQH or NP0)

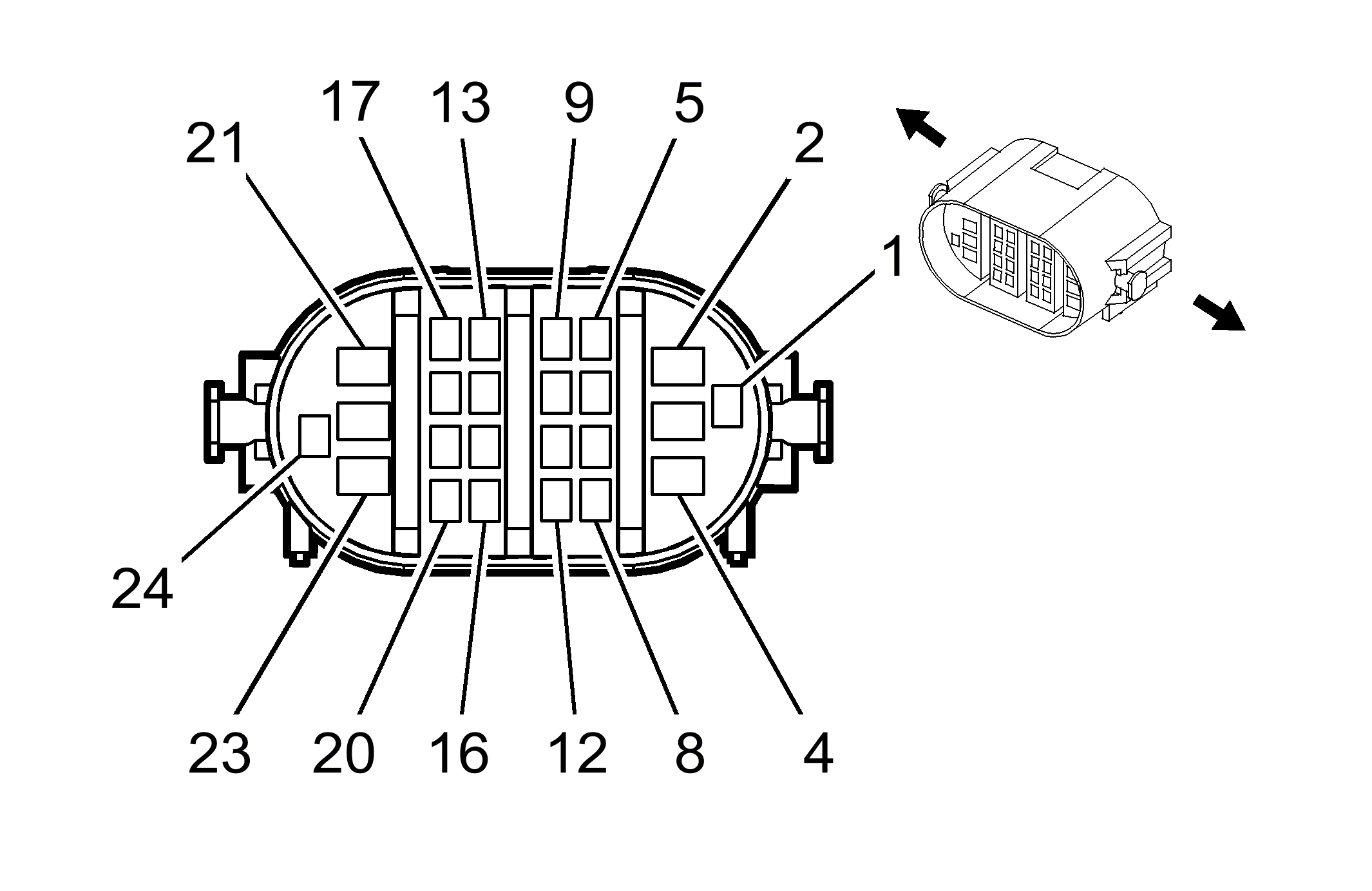

GM2706644

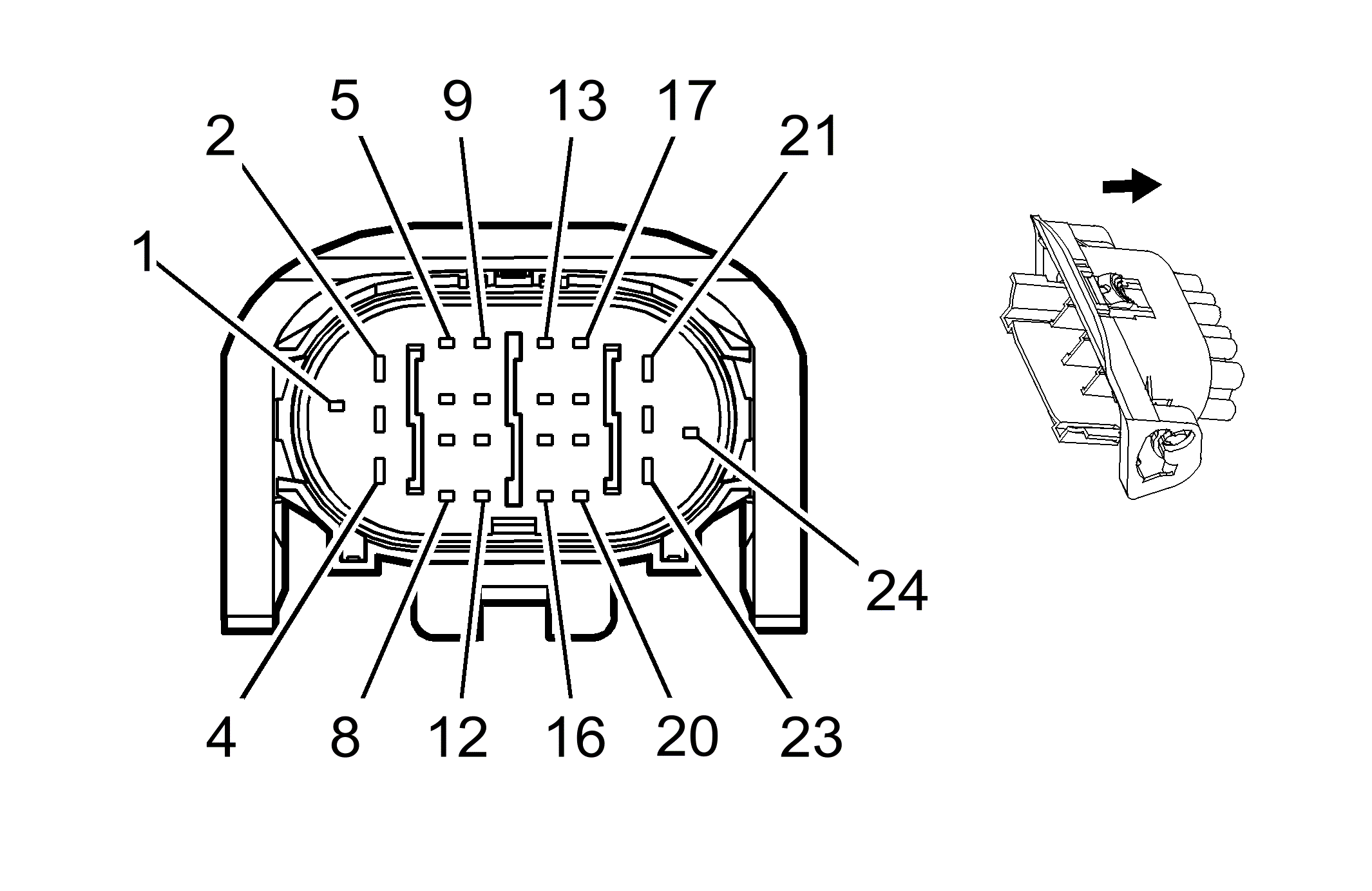

GM2706635
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13706561
  • Service Connector: Pending
  • Description: 24-Way F GT 150 280 Series Sealed (BK)
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13706568
  • Service Connector: Pending
  • Description: 24-Way M GT 150 280 Series Sealed (BK)
Terminal Part Information
  • Pins: 1, 6-9, 11-16, 19, 20
  • Terminated Lead: Pending
  • Release Tool: J-38125-29
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 15496531/8
  • Core/Insulation Crimp: E/A
  • Pins: 2-4, 21-23
  • Terminated Lead: Pending
  • Release Tool: J-38125-29
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Terminal Part Information
  • Pins: 1, 6, 7, 9, 12, 15, 16, 20
  • Terminated Lead: 13576363
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 15326269/19
  • Core/Insulation Crimp: E/4
  • Pins: 2-4, 21, 23
  • Terminated Lead: 13580825
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-5 (PU)
  • Terminal/Tray: 15304731/19
  • Core/Insulation Crimp: E/5
  • Pins: 8, 11, 13, 14, 19
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 15326269/19
  • Core/Insulation Crimp: E/4
  • Pin: 22
  • Terminated Lead: 13580826
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-5 (PU)
  • Terminal/Tray: 15304731/19
  • Core/Insulation Crimp: C/5
X109 Engine Harness to Instrument Panel Harness (except HP2 and without NQH or NP0)

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.35 WH/BK 5039 CKP Sensor High (Y91) 1 0.35 WH/BK 5039 CKP Sensor High (Y91)
2 0.5 WH 5359 Brake Apply Sensor Supply Voltage 2 0.5 WH 5359 Brake Apply Sensor Supply Voltage
3 0.5 BN 5077 Low Reference 3 0.5 BN 5077 Low Reference
4 0.35 D-BU 1161 Accelerator Pedal Position (APP) Sensor 1 Signal 4 0.35 D-BU 1161 Accelerator Pedal Position (APP) Sensor 1 Signal
5 - - Not Used 5 - - Not Used
6 0.35 PU 1272 Low Reference 6 0.35 PU 1272 Low Reference
7 0.35 PU/WH 5024 CKP Sensor Low (Y91) 7 0.35 PU/WH 5024 CKP Sensor Low (Y91)
8 0.5 PK 5076 Current Sensor Control 8 0.5 PK 5076 Current Sensor Control
9 0.35 L-BU 1162 APP Sensor 2 Signal 9 0.35 L-BU 1162 APP Sensor 2 Signal
10 - - Not Used 10 - - Not Used
11 0.5 WH 5075 Current Sensor Signal 11 0.5 WH 5075 Current Sensor Signal
12 0.35 TN 1274 5-Volt Reference 12 0.35 TN 1274 5-Volt Reference
13 0.5 TN 2501 High Speed GMLAN Serial Data Bus - 13 0.5 TN 2501 High Speed GMLAN Serial Data Bus -
14 0.5 YE 5361 Brake Apply Sensor Signal 14 0.5 YE 5361 Brake Apply Sensor Signal
15 0.35 BN 1271 Low Reference 15 0.35 BN 1271 Low Reference
16 0.5 BN/WH 419 Malfunction Indicator Lamp (MIL) Control 16 0.5 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
17-18 - - Not Used 17-18 - - Not Used
19 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus + 19 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus +
20 0.35 D-BU 5985 Accessory Wakeup Serial Data 20 0.35 D-BU 5985 Accessory Wakeup Serial Data
21 0.5 BN 5360 Low Reference 21 0.5 BN 5360 Low Reference
22 0.8 BK/WH 451 Ground 22 0.8 BK/WH 451 Ground
23 0.35 WH/BK 1164 5-Volt Reference 23 0.35 WH/BK 1164 5-Volt Reference
24 - - Not Used 24 - - Not Used
