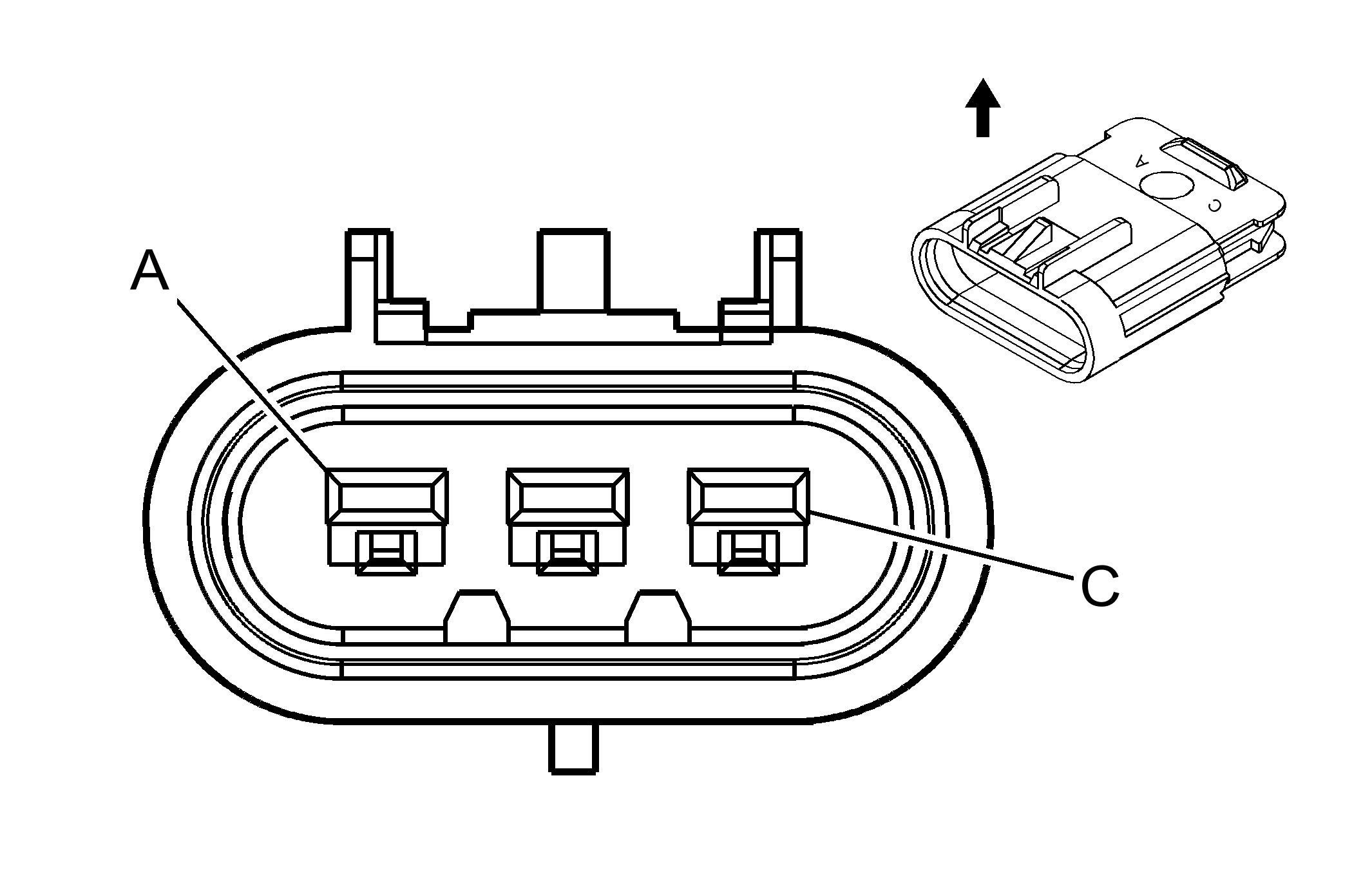

X108 Forward Lamp Harness to Forward Lamp Harness Connector End View (VYU)

Connector Part Information Harness Type: Forward Lamp OEM Connector: 15326614 Service Connector: 13506000 Description: 3-Way F GT 280 Series Sealed (BK)	Connector Part Information Harness Type: Forward Lamp OEM Connector: 15326623 Service Connector: 89046766 Description: 3-Way M 280 GT Series, Sealed (BK)
Terminal Part Information Terminated Lead: Pins A, B- 13575405 Terminated Lead: Pins C- 13327132 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-4A (PU) Terminal/Tray: 15304719/19 Core/Insulation Crimp: Pins A, B- 2/5 Core/Insulation Crimp: Pins C- E/5	Terminal Part Information Terminated Lead: Pins A, B- 13327135 Terminated Lead: Pins C- 13327134 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 15304731/19 Core/Insulation Crimp: Pins A, B- C/5 Core/Insulation Crimp: Pins C- E/5

X108 Forward Lamp Harness to Forward Lamp Harness (VYU)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
A	0.8 TN/WH	312	Right Headlamp Low Beam Control	A	0.8 TN/WH	312	Right Headlamp Low Beam Control
B	0.8 BK	150	Ground	B	0.8 BK	250	Ground
C	0.5 L-GN/BK	311	Right Headlamp High Beam Control	C	0.5 L-GN/BK	311	Right Headlamp High Beam Control
