Instrument Cluster Wiring Schematics: Indicators

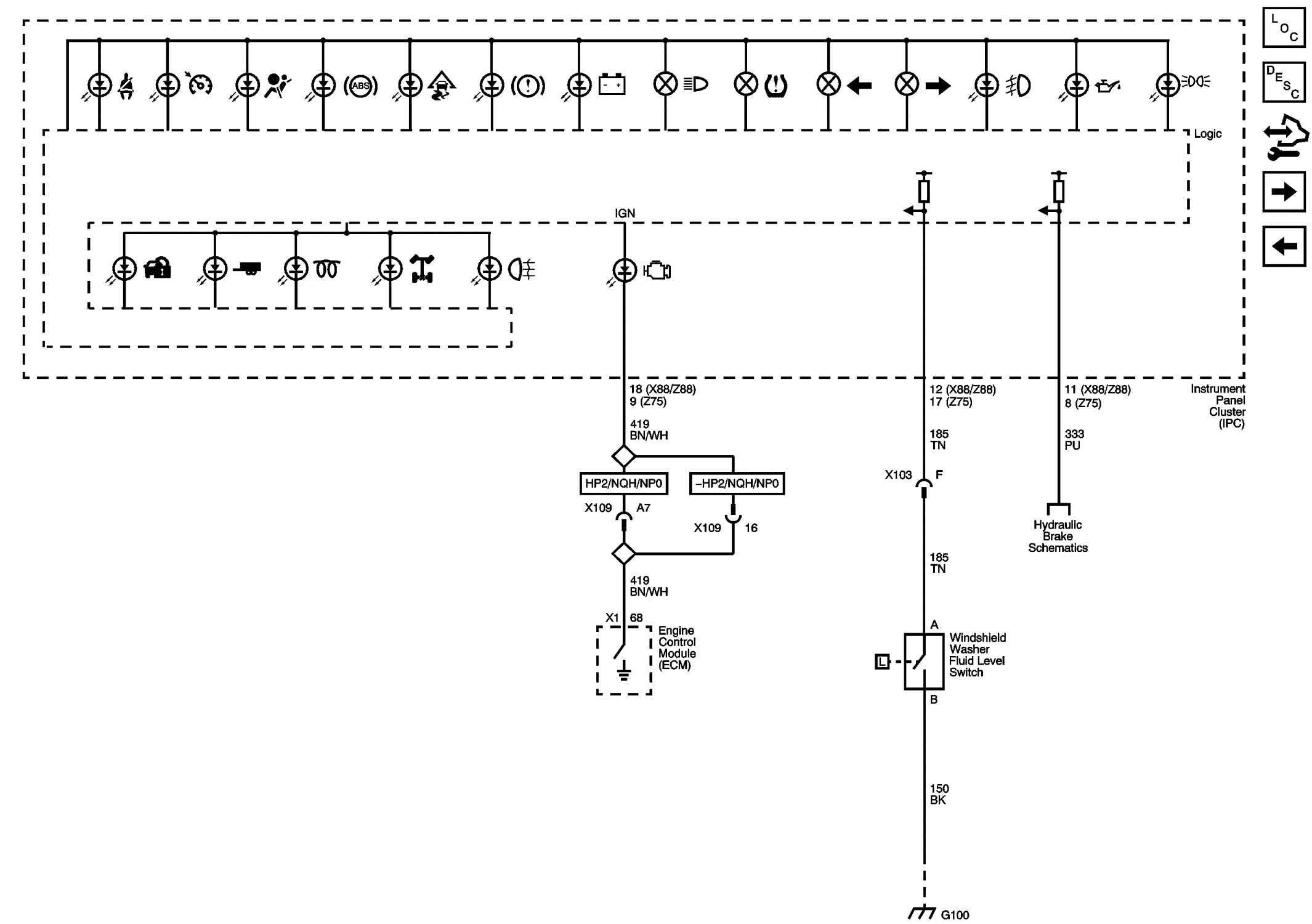

Fig 1: Indicators Wiring Schematic

GM2759444

Courtesy of GENERAL MOTORS COMPANY
