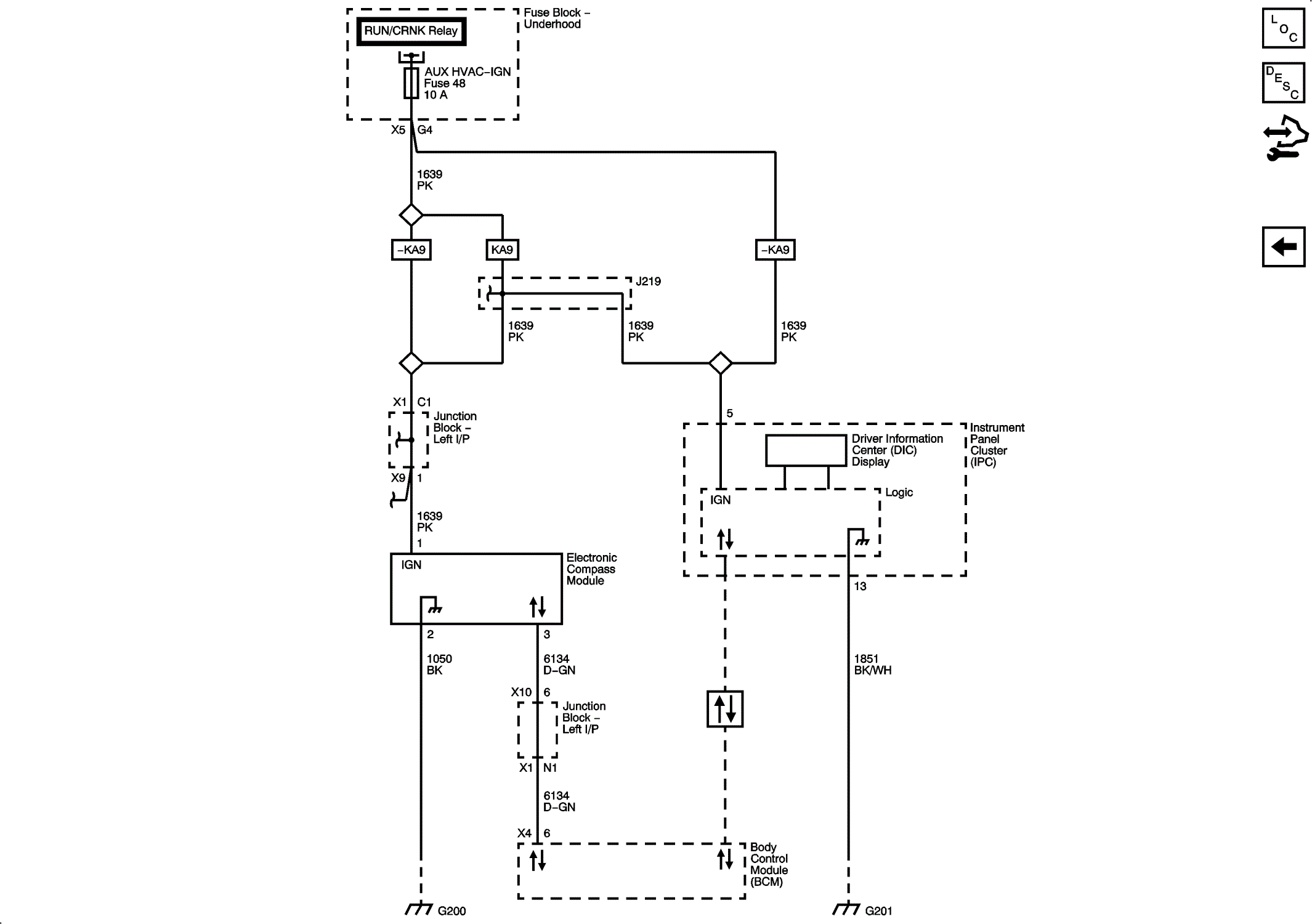

Home >> Cadillac >> 2013 >> Escalade Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Driver Information System Wiring Schematics >> Electronic Compass (DD8)
