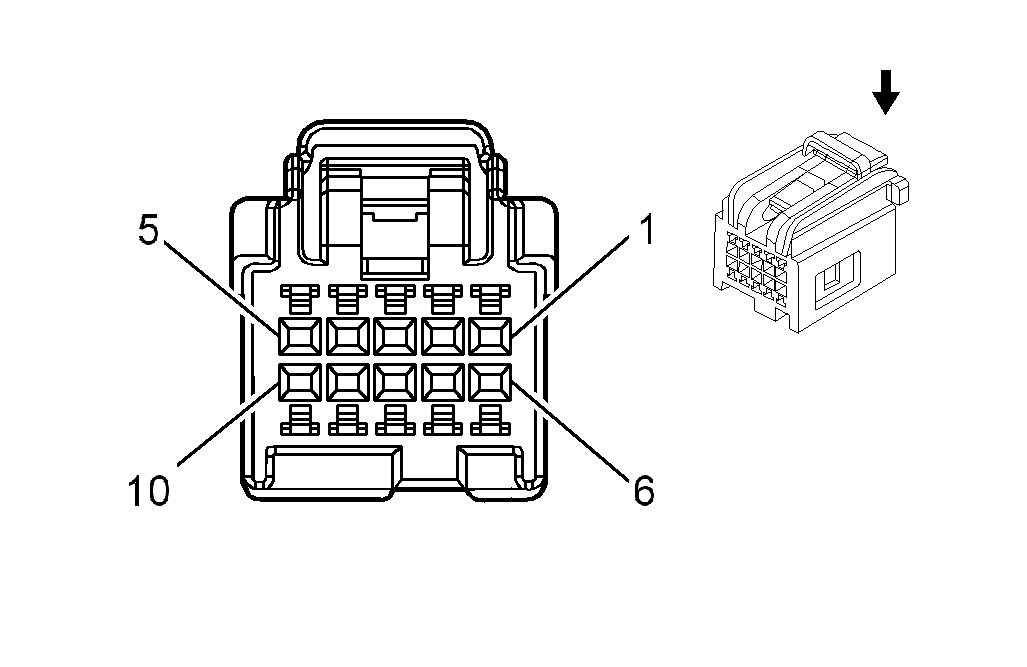

S48E Multifunction Switch - Center Console
 Courtesy of
|
Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13784020
- Service Connector:13584334
- Description: 10-Way F Micro HVT Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575550
- Release Tool: J-38125-559
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
|
S48E Multifunction Switch - Center Console
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
6817 |
LED Backlight Dimming Control |
| 2 |
0.35 BK |
1650 |
Ground |
| 3 |
0.35 PU/WH |
6816 |
LED Dimming Signal (UD5) |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 GY |
2555 |
Rear Park Assist Disable Signal (UD5) |
| 6 |
0.35 BN |
5852 |
Rear Park Assist LED Disable Signal (UD5) |
| 7 |
0.35 L-BU |
1788 |
Traction Control Switch Signal |
| 8 |
- |
- |
Not Used |
| 9 |
0.5 GY |
2093 |
5-Volt Reference 1 |
| 10 |
0.5 PK/WH |
2092 |
Fuel Economy Mode Switch Signal |
