K66 Traffic Data Receiver
 Courtesy of
|

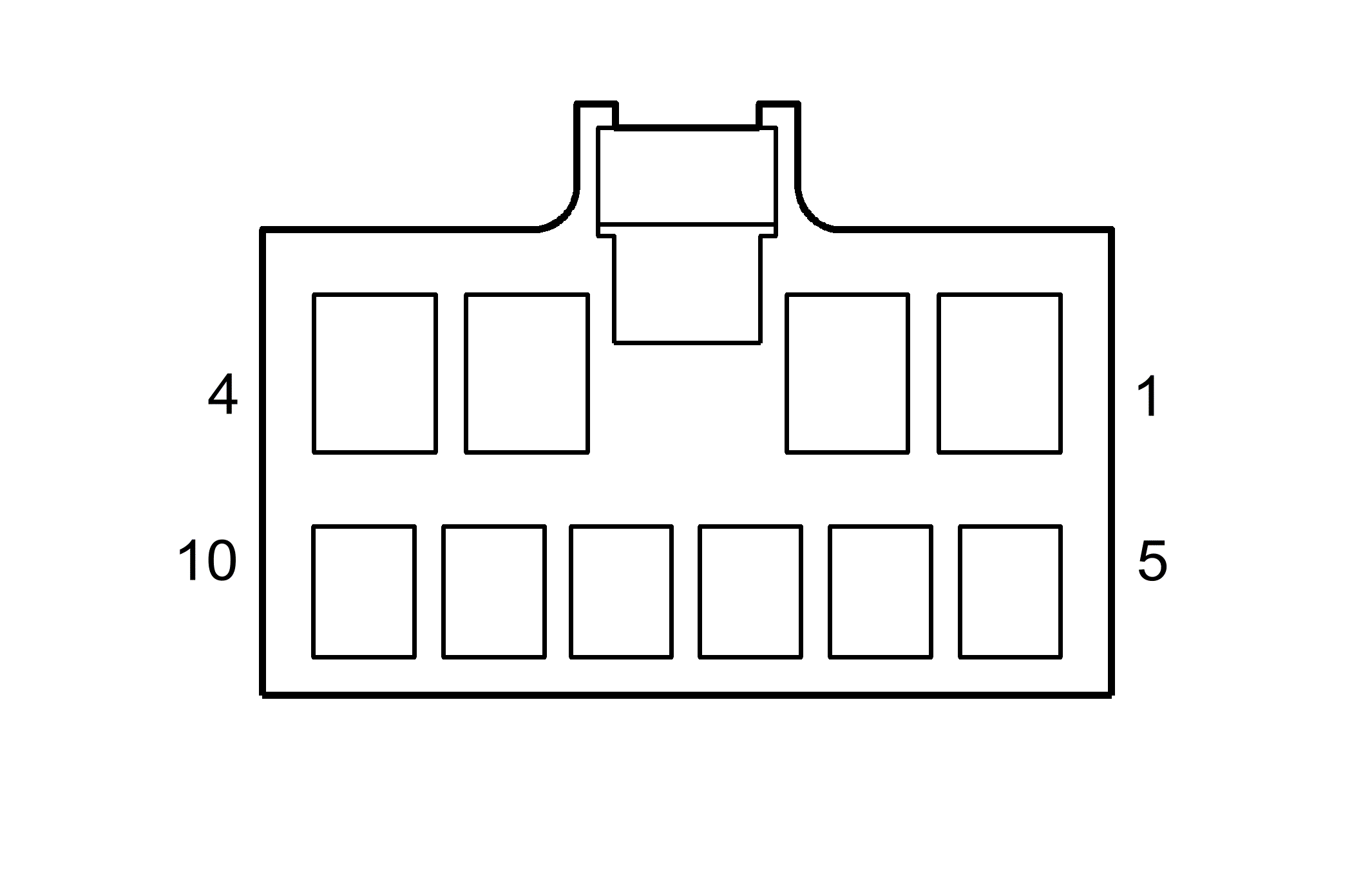

Connector Part Information
- Harness Type: Body
- OEM Connector: 10846596
- Service Connector: 89046791
- Description: 10-Way F 050 Series (NA)
|
Terminal Part Information
- Terminated Lead: 13575475
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-12 (BU)
- Terminal/Tray: 8100-0544/6
- Core/Insulation Crimp: J/J
|
K66 Traffic Data Receiver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BN |
5384 |
Traffic Information Signal (-) |
| 2 |
0.35 GY |
5383 |
Traffic Information Signal (+) |
| 3 |
0.5 RD/WH |
4840 |
Battery Positive Voltage |
| 4 |
0.8 RD/BK |
1002 |
RAP 1 Fuse Supply Voltage |
| 5 |
0.5 BK/WH |
1351 |
Ground |
| 6 |
0.35 YE |
5385 |
Traffic Information Request Signal |
| 7 |
0.35 BARE |
1782 |
Drain Wire |
| 8-10 |
- |
- |
Not Used |
