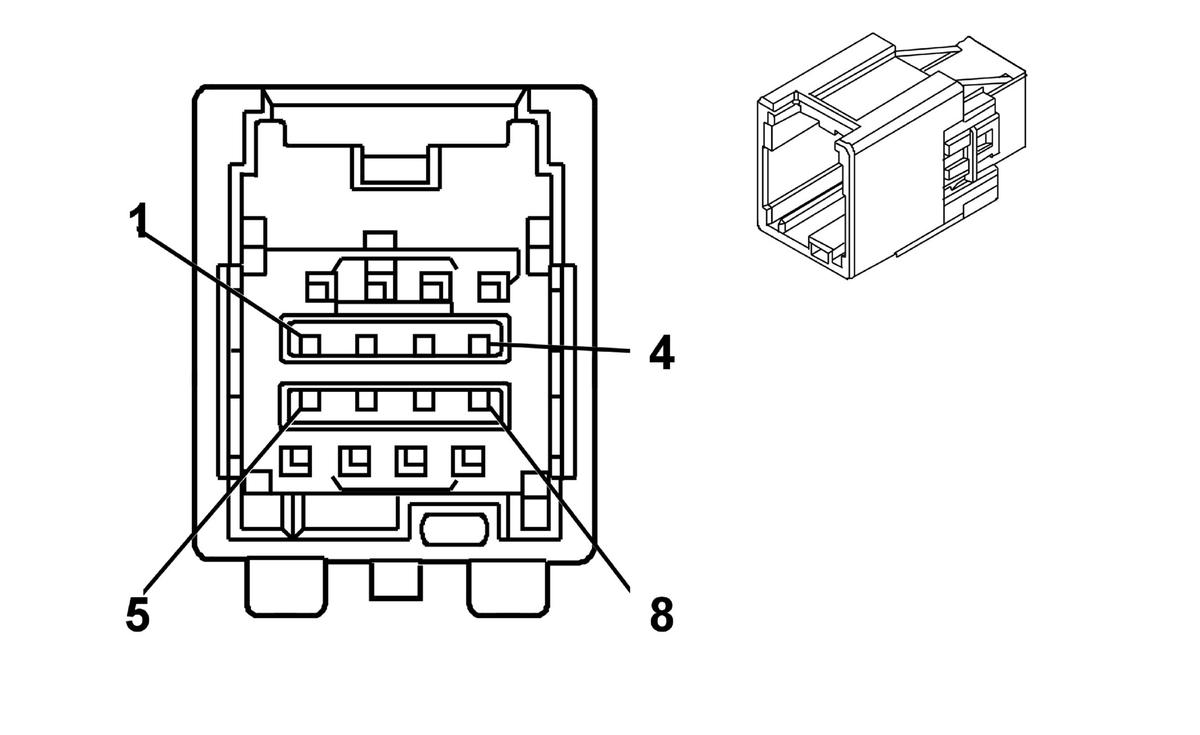

A9A Outside Rearview Mirror - Driver X2
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13640058
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way M Kaizen 64 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575826
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-65B (L-BU)
- Terminal/Tray: 7114-4618-02/27
- Core/Insulation Crimp: P/P
|
A9A Outside Rearview Mirror - Driver X2
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-BU |
3392 |
Reference Voltage |
| 2 |
0.35 GY |
3395 |
Driver Side Mirror Horizontal Position Signal |
| 3 |
0.35 BN |
3393 |
Low Reference |
| 4 |
0.35 D-GN |
3394 |
Driver Side Mirror Vertical Position Signal |
| 5 |
0.5 YE |
3411 |
Driver Side Outside Rearview Mirror Extend Control |
| 6 |
0.5 L-BU |
3412 |
Driver Side Outside Rearview Mirror Retract Control |
| 7-8 |
- |
- |
Not Used |
