Instrument Cluster Wiring Schematics: Gauges

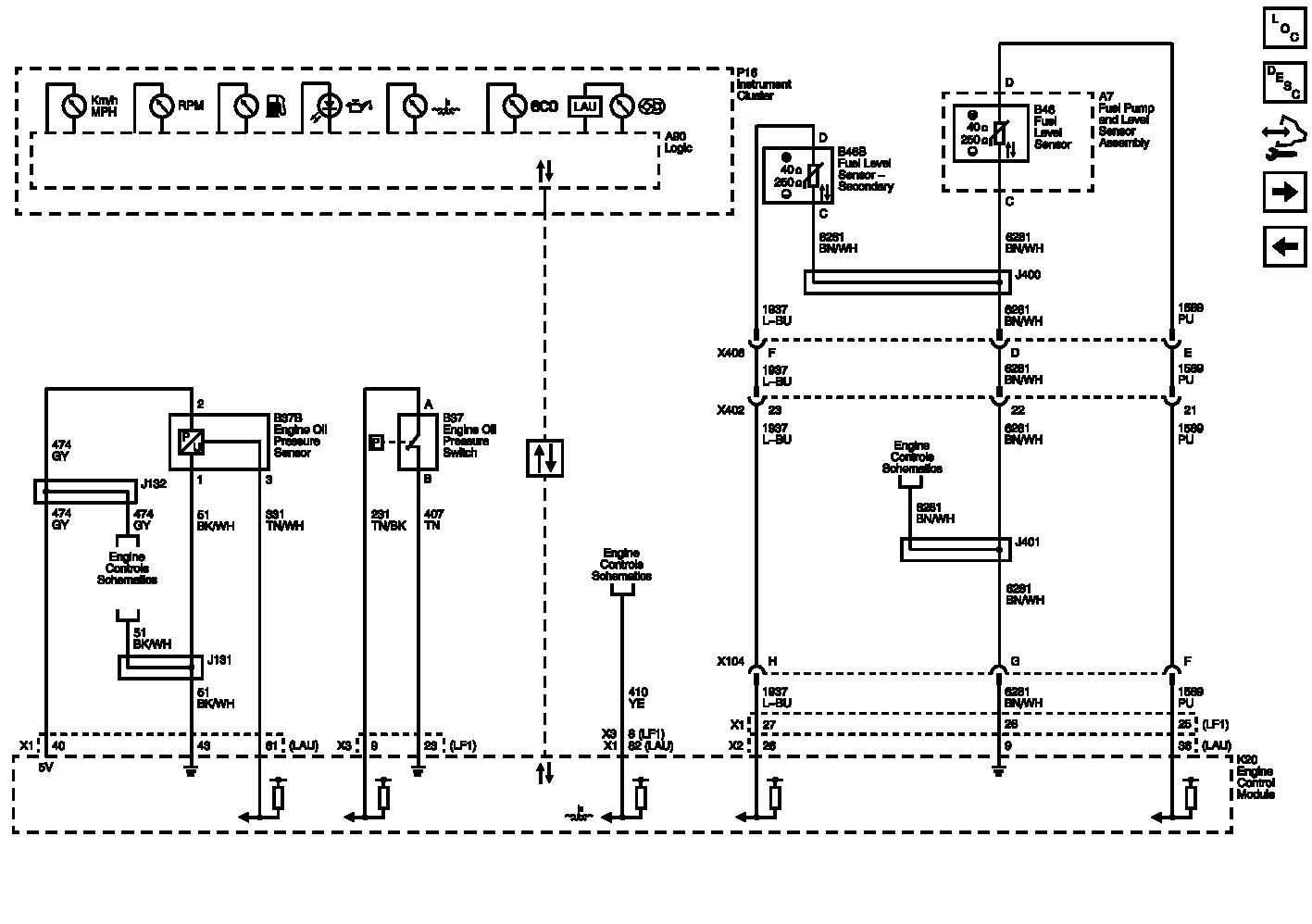

Fig 1: Instrument Cluster Gauges Wiring Schematic

GM2624738

Courtesy of GENERAL MOTORS COMPANY
