16. Front Output Shaft Drive Sprocket Bearing Replacement

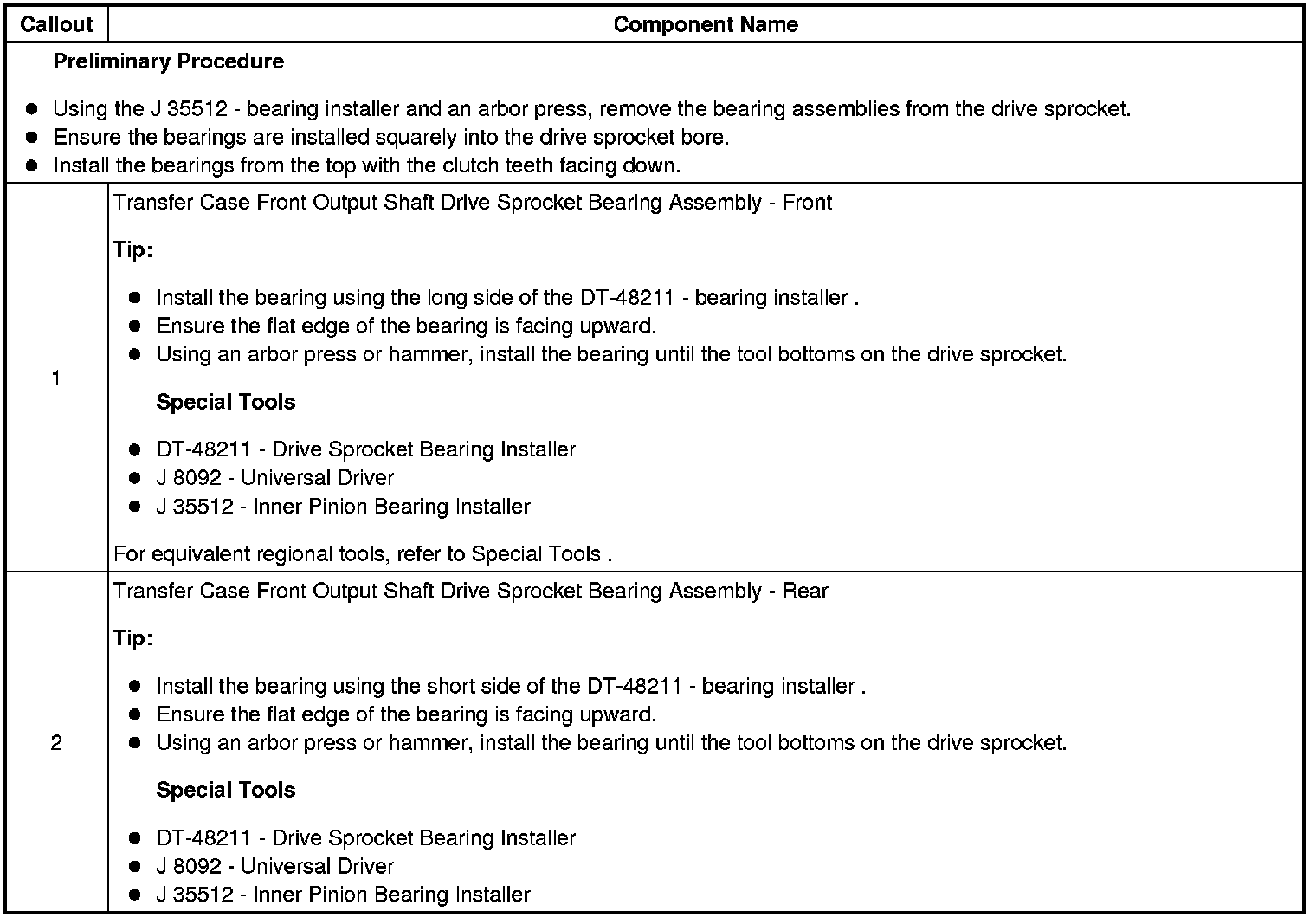

Front Output Shaft Drive Sprocket Bearing Replacement
