X407
>>
LWB With C69
LWB With C69
Inline Harness Connector End Views

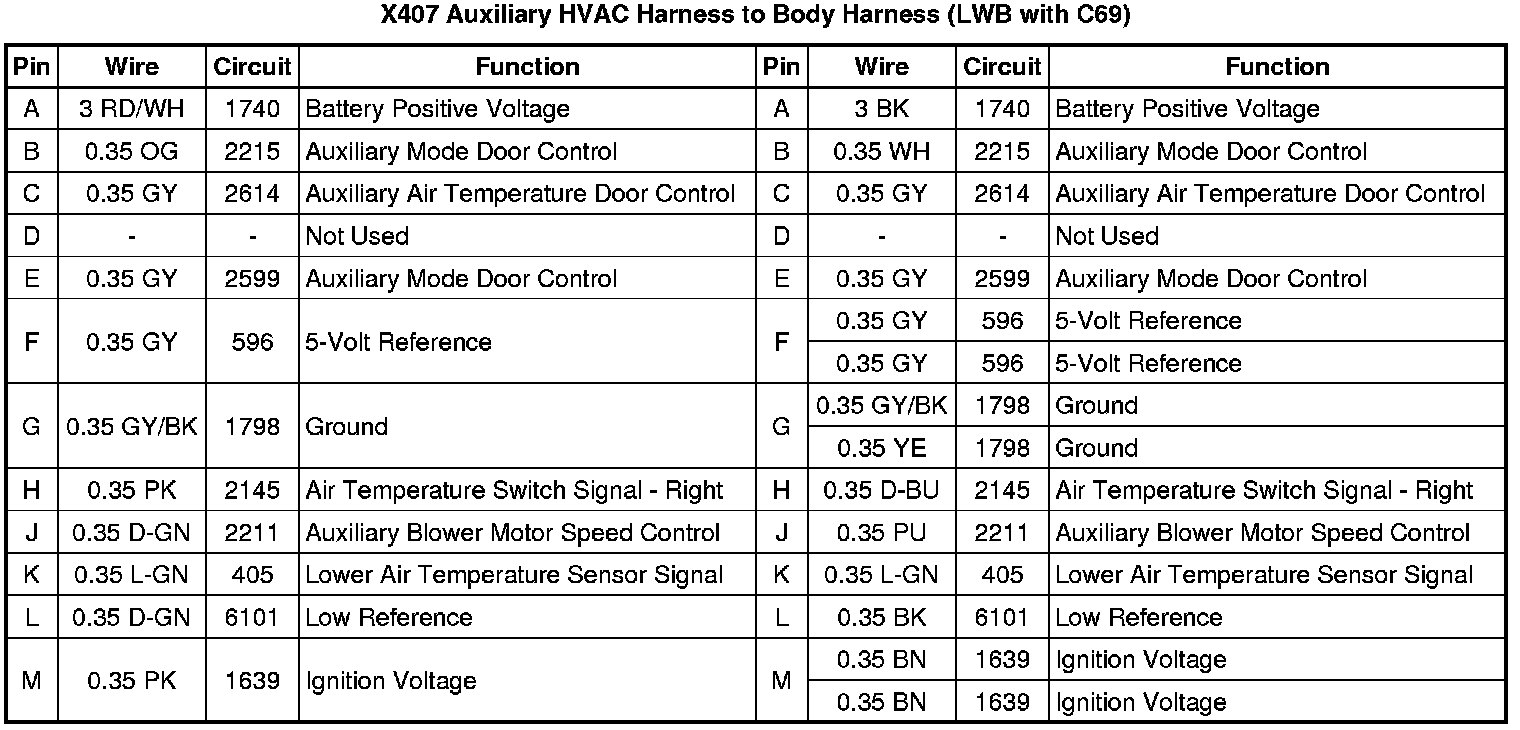

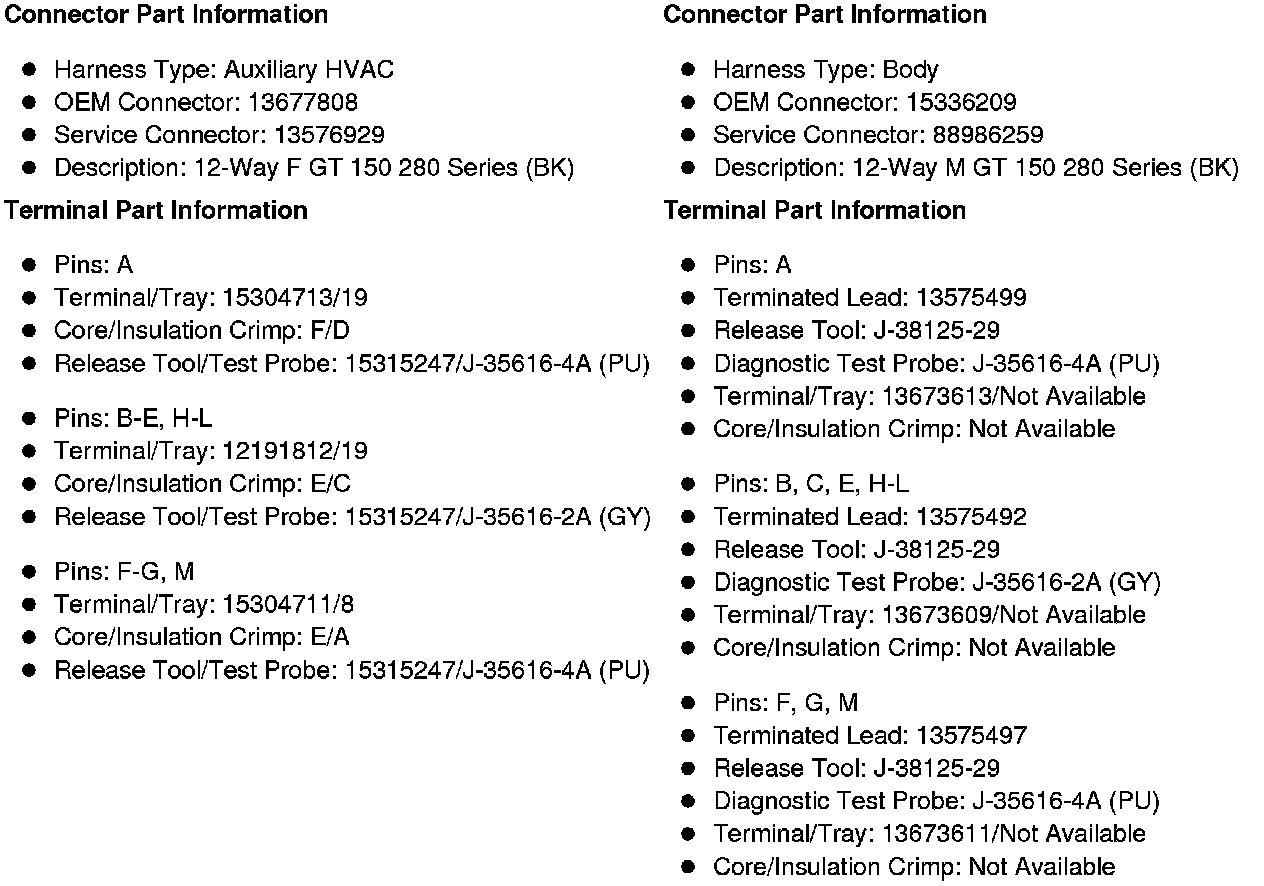

X407 Auxiliary HVAC Harness to Body Harness (LWB with C69)
