X104
>>
Z75 With T96
Z75 With T96
Inline Harness Connector End Views

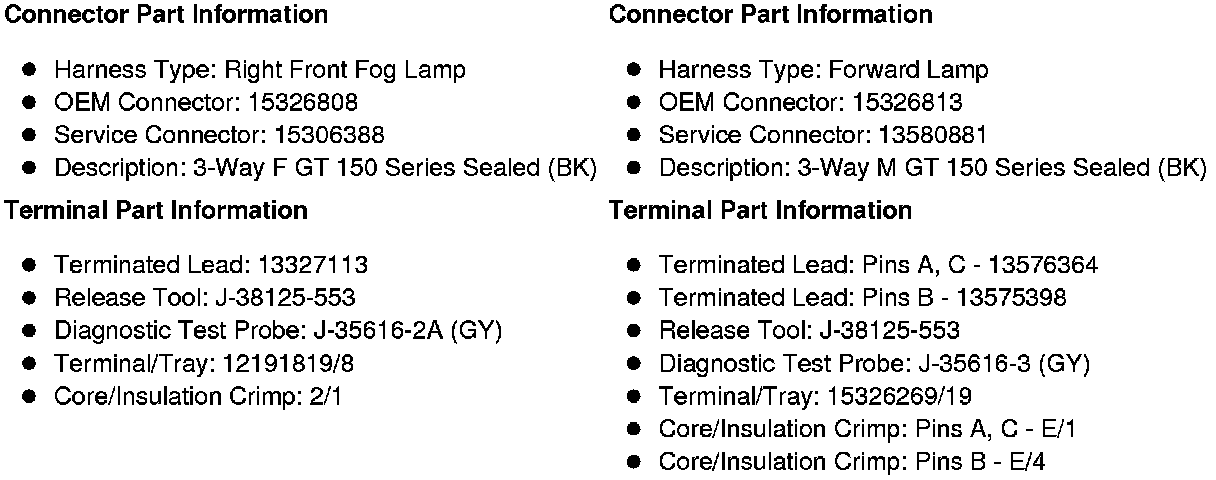

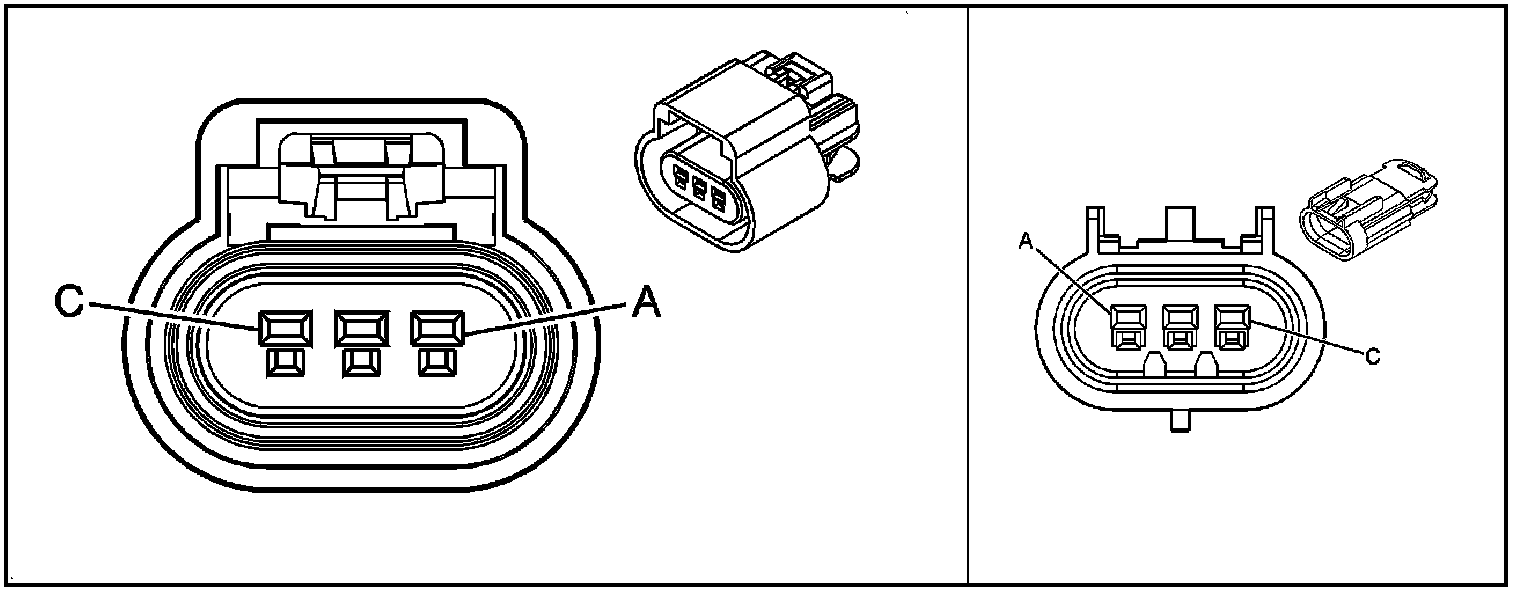

X104 Right Front Fog Lamp Harness to Forward Lamp Harness (Z75 with T96)
