12286A - Service Update For Inventory Vehicles Only - Rear Side Door Reveal Molding Contact - Expires February 28, 2015 (12286A)

Publication date: 2014-02-25
Reference number: 12286A
Supersedes refnos: 12286

12286A - SERVICE UPDATE FOR INVENTORY VEHICLES ONLY - REAR SIDE DOOR REVEAL MOLDING CONTACT - EXPIRES FEBRUARY 28, 2015

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 12286A, Date of Issue: February 25, 2014

Affected Model(s):	2012-2013 Cadillac Escalade ESV, Escalade EXT
Supercedes:	This service update involves vehicles in dealer inventory only. The expiration date has been extended to February 28, 2015. Please discard all copies of bulletin 12286.

Superceded Bulletin(s): 12286, Date of Issue: February 1, 2013

PURPOSE

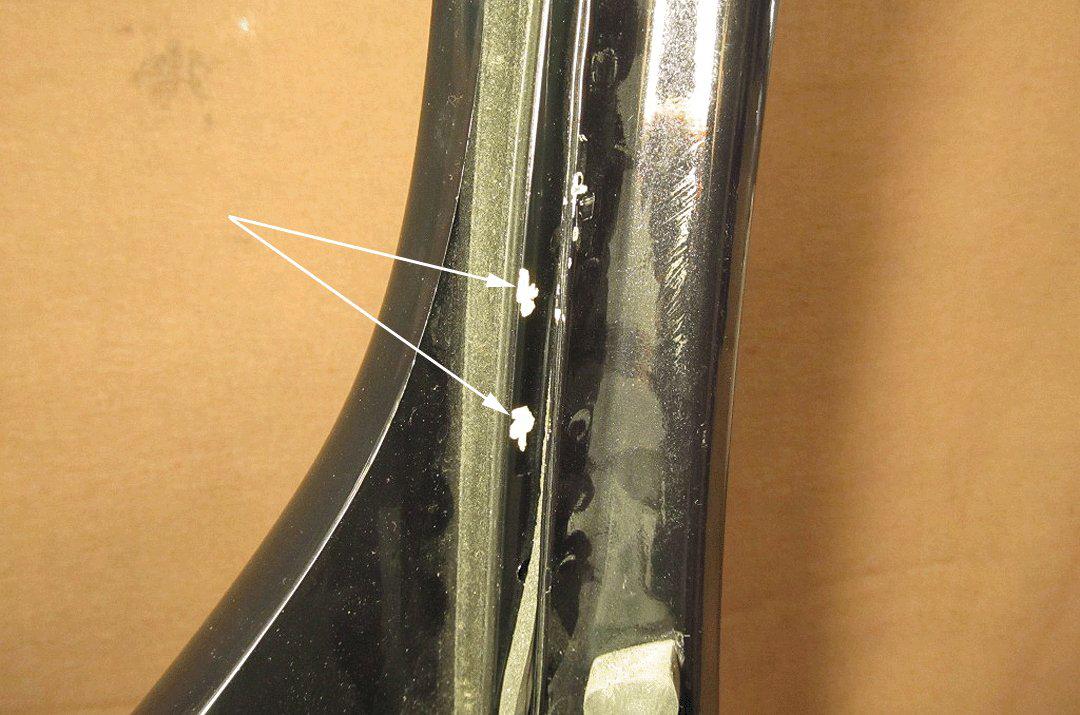

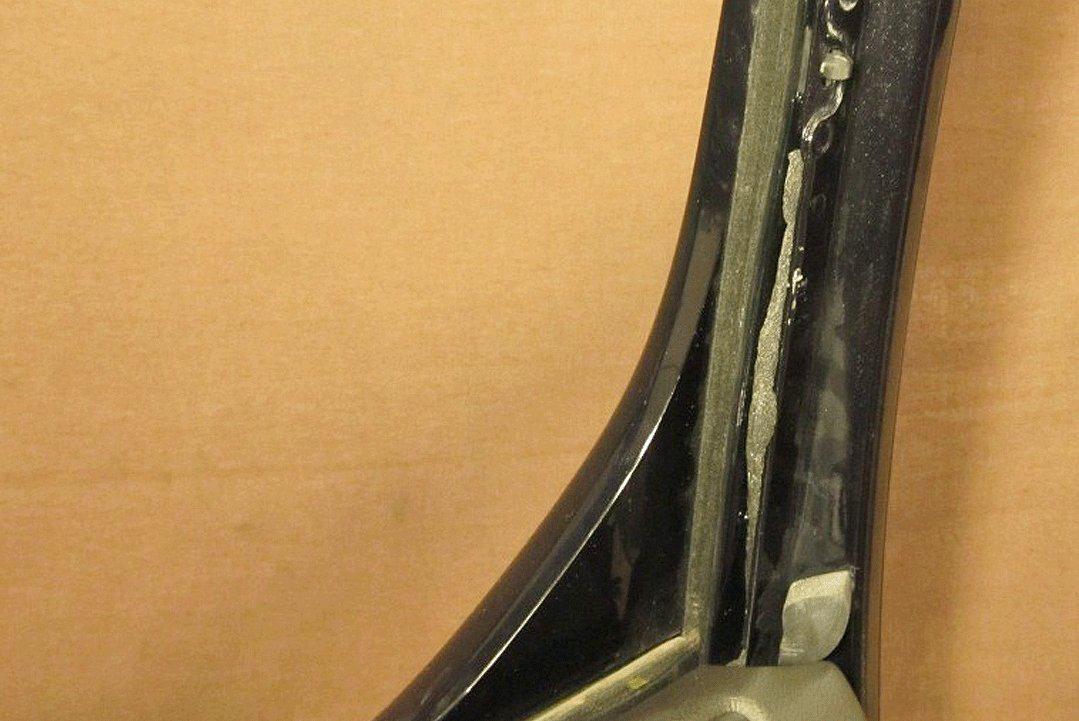

This bulletin provides a service procedure to install a rubber and a foam spacer to the backside of both rear side door window reveal moldings on certain 2012-2013 Cadillac Escalade ESV and Escalade EXT vehicles. On some of these vehicles, there may be inadequate clearance between the rear side door and the molding. During molding installation, paint damage may have occurred. In addition, when the molding is exposed to elevated temperatures, it could expand and cause paint damage.

This service procedure should be completed on involved vehicles currently in dealership inventory as soon as possible but no later than February 28, 2015, at which time this bulletin will expire.

VEHICLES INVOLVED

All involved vehicles are identified by VIN in the Global Warranty Management System - Investigate Vehicle History Application. Dealership technicians should always check this site to confirm vehicle involvement prior to beginning any required inspections and/or repairs. It is important to routinely use this tool to verify eligibility because not all similar vehicles may be involved regardless of description or option content.

Additionally, a list of involved vehicles currently in dealer inventory is available on the "Service Update Bulletin Information" link under the "Service" tab in GM GlobalConnect (US) or attached to the GlobalConnect message (Canada) used to release this bulletin.

PARTS INFORMATION

Parts required for this service update are to be obtained from the three sources below. Do NOT order parts from GMCC&A.

Rubber spacers, part number WPC695, are to be obtained from the Warranty Parts Center (WPC). A copy of a request form can be found at the back of this bulletin. Send the completed form to the WPC via email or fax. Export locations should obtain rubber spacers from their local GM Aftersales Department.
Sponge Rubber Weatherstrip, part number P46490, is currently available from Kent Industries (1-888-YES-KENT).
Automotive Adhesion Promoter, part number 06396, is currently available from www.3M.com/automotive

Part Number	Description	Quantity/Vehicle
WPC695	Rubber Spacer (2 spacers per sheet / Enough to repair 2 doors)	1
P46490	*Kent Industries 3/8" x 5/16" Sponge Rubber Weatherstrip	As Required
06396	*3M Automotive Adhesion Promoter	As Required

* We believe this source and their products to be reliable. There may be additional manufacturers of such products/materials. General Motors does not endorse, indicate any preference for, or assume any responsibility for the products or material from this firm or for any such items that may be available from other sources.

SERVICE PROCEDURE

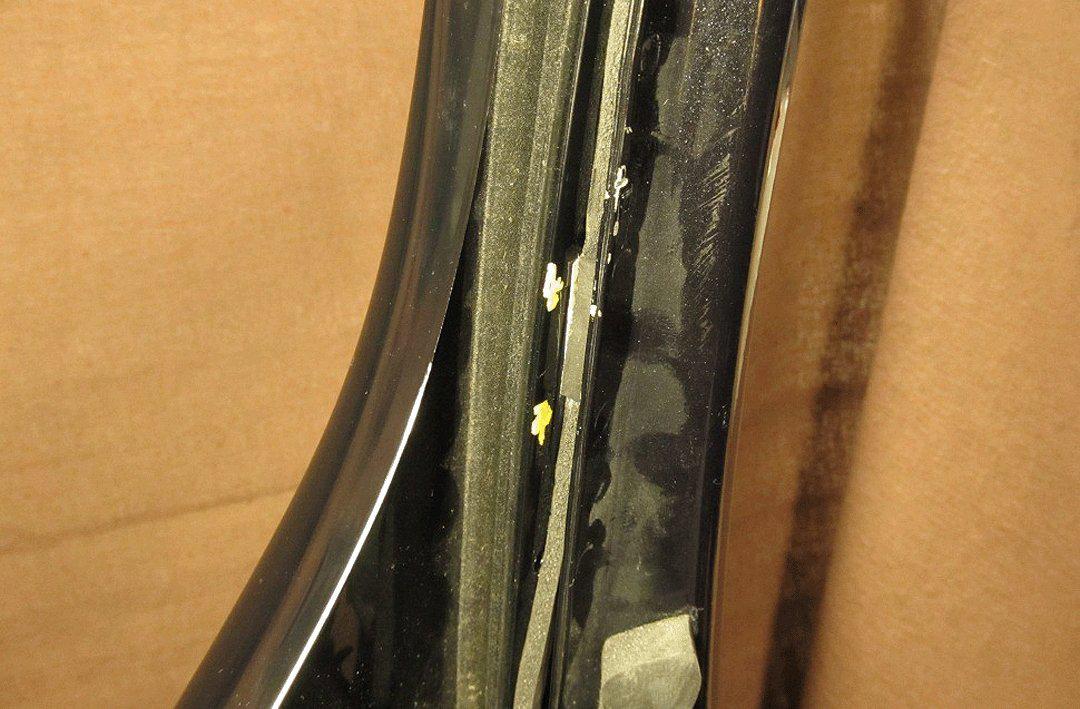

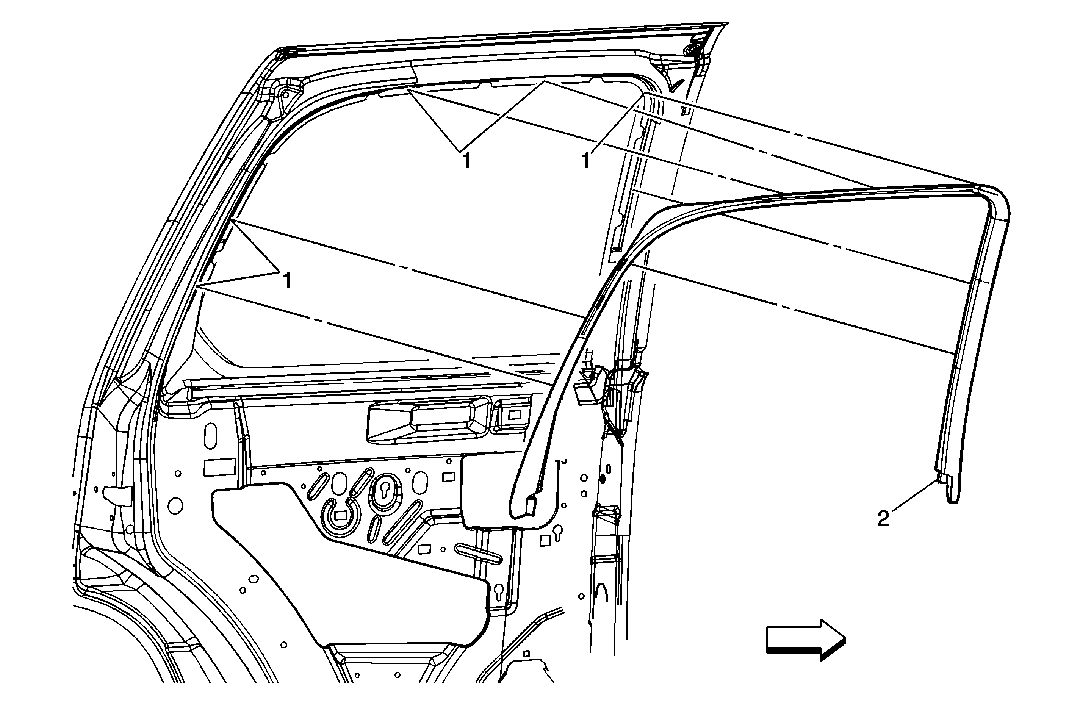

Carefully release the rear door opening garnish molding and carefully release lower ends from behind door trim panel.

Courtesy of GENERAL MOTORS COMPANY

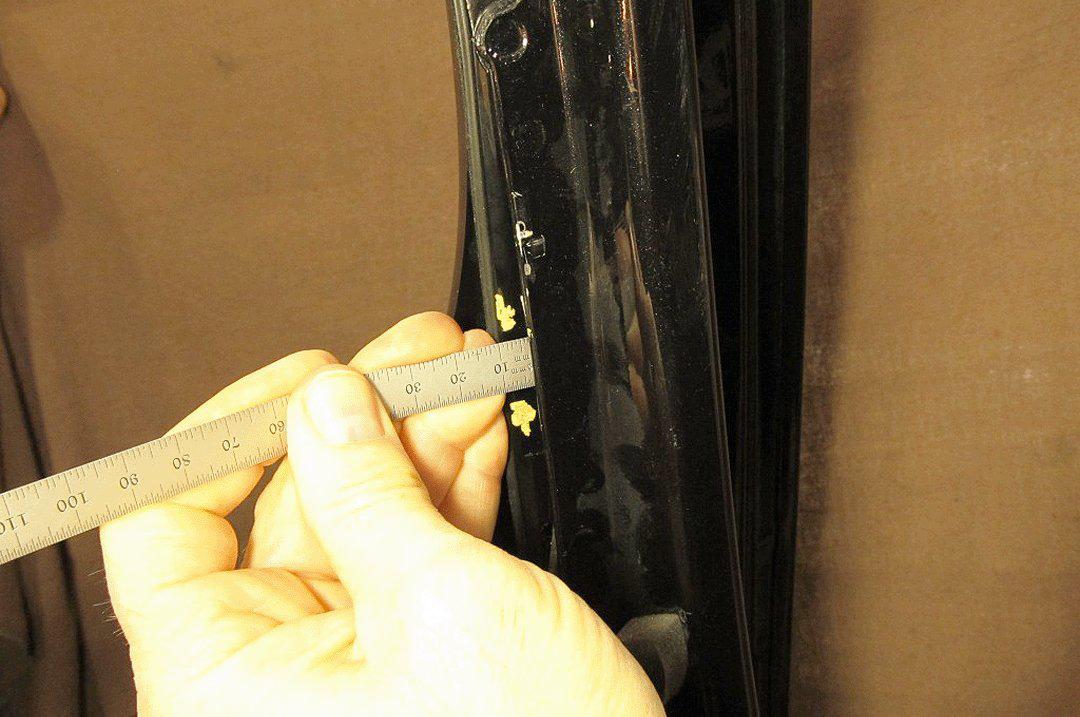

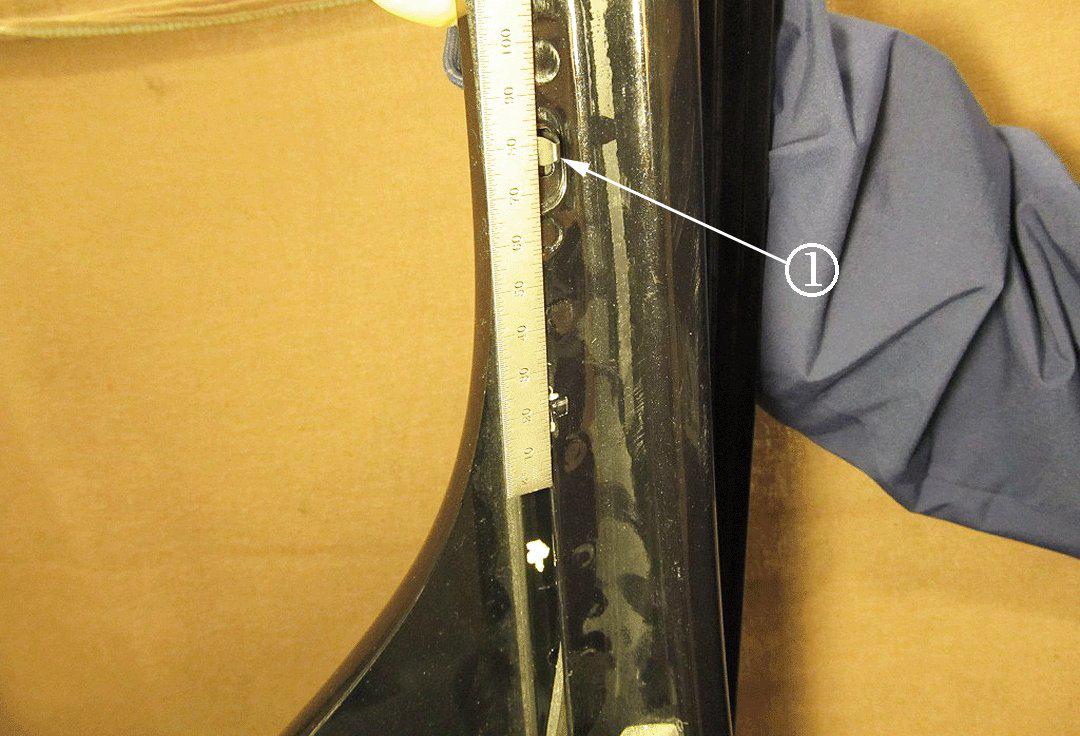

Locate the lowest clip (1) on the rear edge of the window reveal molding. Measure 75mm (3 in) below the clip and mark the location on the molding. Measure 25mm (1 in) down from the first mark and mark the lower point.

Courtesy of GENERAL MOTORS COMPANY

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The window reveal molding has a recessed flat area in the approximate location to mount the spacer.

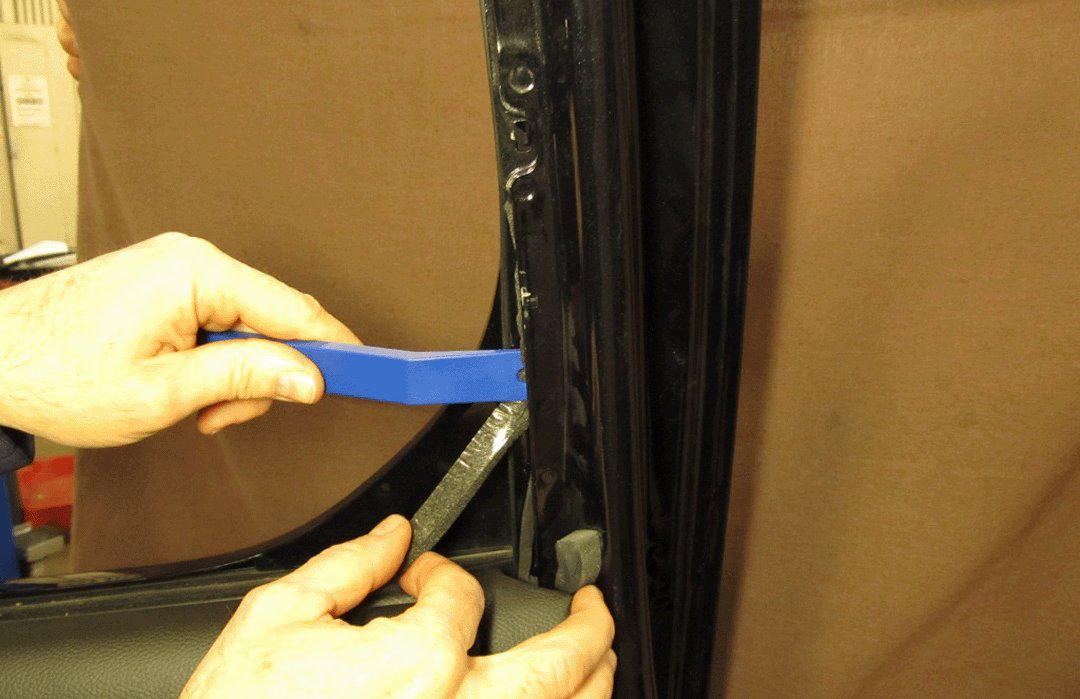

Using a trim stick, carefully pry the window reveal molding outward to increase clearance to the affected area.

Courtesy of GENERAL MOTORS COMPANY
Clean the surface of the reveal molding where the spacer will be placed using a general purpose adhesive cleaner to ensure that the surface is free of contaminants that may affect adhesion.
Wipe the repair area where the spacer will be placed with *3M Automotive Adhesion Promoter, 3M P/N 06396.

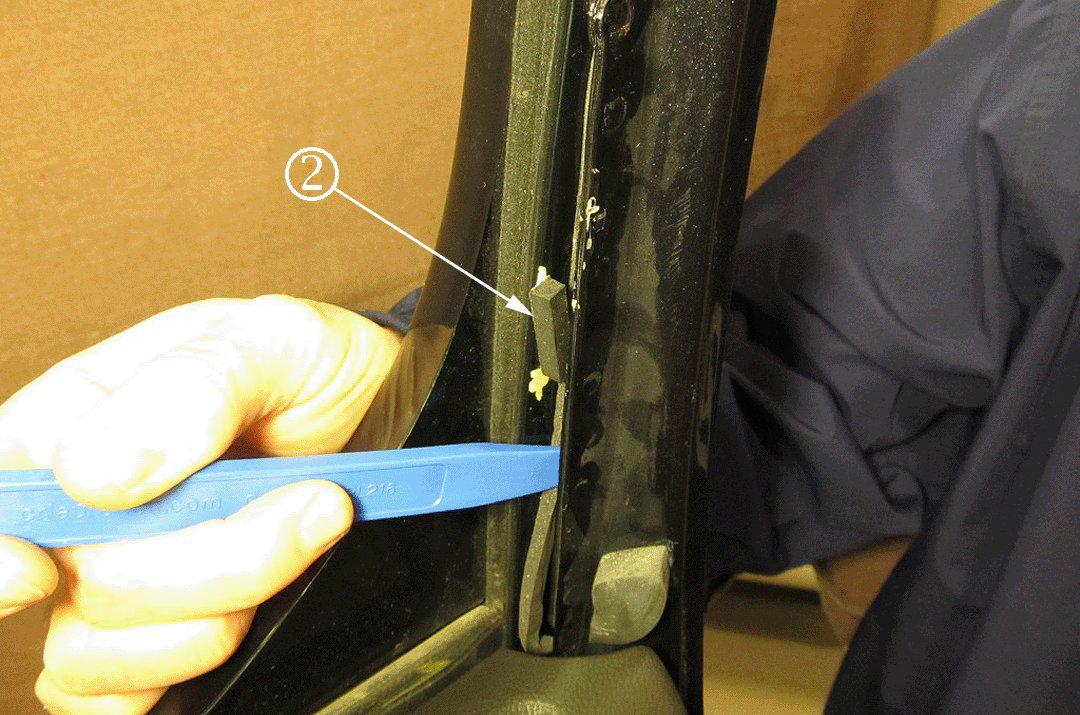

While providing additional clearance with the trim stick, install one supplied spacer (2)(P/N WPC695), onto the reveal molding in the marked area.
Position the spacer to be recessed approximately 2-3 mm (0.078-0.118 in) from the edge of the sheet metal.

Courtesy of GENERAL MOTORS COMPANY
Remove the trim stick and apply pressure to the reveal molding adjacent to the spacer to ensure proper wet out.

Courtesy of GENERAL MOTORS COMPANY
Cut a section of 3/8" x 5/16" closed cell self-adhesive Kent Industries material P/N P46490, or the equivalent, to 210mm (8.26 in) length, and then remove the adhesive backing.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The added weatherstrip is a wind / road noise measure.
Using a trim stick, insert the weatherstrip just below the reveal molding clip, then around the spacer, and down toward the end of the molding below the beltline.
Inspect positioning of the weatherstrip to ensure it will not interfere with the fit of the garnish molding.

Courtesy of GENERAL MOTORS COMPANY

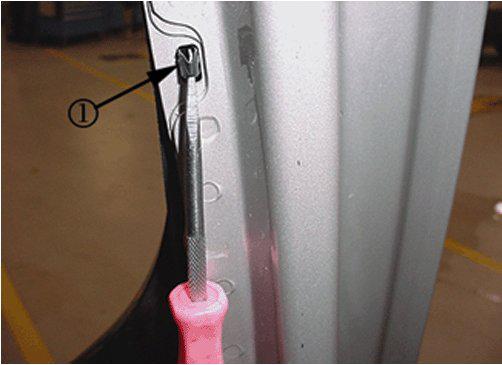

Inspect to ensure the lowest rear clip, just above the added spacer is fully engaged. Use a small screwdriver or hook if necessary (1).

Courtesy of GENERAL MOTORS COMPANY
Carefully insert the lower ends of the rear door opening garnish molding behind the door trim panel. Line up the retaining points and carefully work the garnish molding into position and secure in place.

Courtesy of GENERAL MOTORS COMPANY
Repeat procedure on the opposite rear side door.
