N212328800 - 03 - Front Passenger Airbag TAKATA Inflator - Priority Group 10 (N212328800-03)
Publication date: 2022-01-05Reference number: N212328800-03
Supersedes refnos: N212328800, N212328800-01, N212328800-02
N212328800 - 03 - FRONT PASSENGER AIRBAG TAKATA INFLATOR - PRIORITY GROUP 10
SERVICE CAMPAIGN BULLETIN
| Affected Model(s): | 2010-2013 Cadillac Escalade EXT 2010-2014 Cadillac Escalade, Escalade ESV 2010-2013 Chevrolet Avalanche, Silverado 1500 2010-2014 Silverado 2500/3500, Suburban, Tahoe 2010-2013 GMC Sierra 1500 2010-2014 Sierra 2500/3500, Yukon, Yukon XL |
SERVICE INFORMATION
| Release Date: January 2022 | Revision: 03 |
| Revision Description: This bulletin has been updated to add the customer letter. Please discard all previous copies of N212328800. |
|
| Attention: | It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied. All involved vehicles that are in dealer inventory must be held and not delivered to customers, dealer traded, or used for demonstration purposes until the repair contained in this bulletin has been performed on the vehicle. NHTSA defined priority groups are determined by vehicle location and model year. Vehicles involved in this recall were originally part of bulletin N202324210. This bulletins will be closed 2/5/21 and affected vehicles will now show under this safety recall. Due to age and environmental exposure, some vehicles may display warping or cracking around the passenger airbag opening in the upper instrument panel area. Inspect this area with the customer at the time of the vehicle repair order write up. If warping or cracking is found, inform the customer that the condition is not covered by this recall, nor is it caused by the airbag service procedure. This warping or cracking condition will not affect the passenger side airbag deployment. Dealers are to refer to the General Motors Service Policies and Procedures Manual, Regional Product Field Actions, for guidelines on handling vehicles that are not involved in this safety recall but may be displaying the same condition. |
| Make | Model | Model Year | RPO | Description | |
| From | To | ||||
| Cadillac | Escalade EXT | 2010 | 2013 | ||
| Escalade, Escalade ESV | 2010 | 2014 | |||
| Chevrolet | Avalanche | 2010 | 2013 | ||
| Silverado 1500 | 2010 | 2013 | |||
| Silverado 2500/3500 | 2010 | 2014 | |||
| Suburban | 2010 | 2014 | |||
| Tahoe | 2010 | 2014 | |||
| GMC | Sierra 1500 | 2010 | 2013 | ||
| Sierra 2500/3500 | 2010 | 2014 | |||
| Yukon, Yukon XL | 2010 | 2014 | |||
Involved vehicles are marked "open" on the Investigate Vehicle History screen in GM Global Warranty Management system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections and/or repairs.
| Condition | TK Holdings Inc. ("Takata") has decided that a defect which relates to motor vehicle safety exists in the passenger-side frontal airbag inflators installed as original equipment in certain 2010 -2013 model year Cadillac Escalade EXT vehicles; certain Chevrolet Avalanche, Silverado 1500; certain GMC Sierra 1500 vehicles; and certain 2010-2014 model year Cadillac Escalade, Escalade ESV vehicles; certain Chevrolet Silverado 1500, Silverado 2500/3500, Suburban, and Tahoe vehicles; and certain GMC Sierra 2500/3500, Yukon, and Yukon XL vehicles. The determination was made that the propellant in these inflators may degrade after long-term exposure to high humidity and temperature cycling, which could cause the inflator to rupture during a deployment. An inator rupture may cause metal fragments to pass through the airbag and into the vehicle interior at high speed, which may result in injury or death to vehicle occupants. |
| Correction | Dealers will replace the passenger-side frontal airbag inflator. |
PARTS INFORMATION
SERVICE INFORMATION
| Quantity | Part Name | Part No. |
|---|---|---|
| 1 | Front Passenger Airbag Inflator Kit (Dual Stage - LD pickup and all SUV Vehicles) | 84304240 |
| 1 | Front Passenger Airbag Inflator Kit (Single Stage - HD pickup Only) | 84594241* |
| 1 | Bracket (Required for Single Stage - HD Pickup Only) | 84594242* |
Parts required to complete this recall are to be obtained from General Motors Customer Care and Aftersales (GMCCA). Please refer to your "involved vehicles listing" before ordering parts. Order parts on a CSO = Customer Special Order only. DRO's may be cancelled. All orders may be reviewed prior to being filled. Parts may have quantity limiters in effect. Orders may write to backorder until reviewed. Orders are reviewed and released daily. DO NOT SPAC.
IMPORTANT: MEXICO ONLY, Some LD vehicles may be equipped with RPO A52 (Front Bench Seat). For these vehicles, follow the HD service procedure and part ordering information.
Due to flight restrictions for hazardous goods shipments, dealer orders may arrive via FedEx or with your normal PDC delivery. Therefore, dealers should order CSO = Customer Special Order as DRO's may be cancelled. Please do not place orders as SPAC it will delay shipment of the order. Please note, parts will not be shipped overnight. Plan accordingly for transit time to reach your facility.
*The new HD part numbers 84594241 (air bag kit) and 84594242 (bracket) must ONLY be submitted with the new labor code (9105717) AND with job card date of June 28, 2021 or later to avoid claim rejection. Vehicles repaired with the new part number 84594241 MUST have the serial number recorded when submitting the claim. Dealers submitting for the previous HD part number 84255088 with a job card date PRIOR to June 28, 2021 must use the previous labor code (9105361). Vehicles repaired with the previous part number 84255088 do not require recording of the serial number when submitting the claim.
Used Inflator Return Instructions
Do not discard or destroy the box containing the new passenger airbag inflator, it will be needed to return the used airbag inflator. Refer to the instructions enclosed in the service kit box for return instructions. The US return instructions packaged in the box refer to the original recall involving these parts (49151 and 49152). Disregard this reference, these are the correct return instructions for the current recall.
Return instructions are only applicable to the United States and Canada at this time. International dealers should disregard the instructions enclosed with the replacement airbag inflator. Dealers outside these markets should securely store used airbag inflators until final return instructions are provided in the future.
DO NOT deploy any airbag inflator.
WARRANTY INFORMATION
SERVICE INFORMATION
| Labor Operation | Description | Labor Time | Trans. Type | Net Item |
| 9105803 ** | Replace Dual Stage Front Passenger Airbag Inflator LD/SUV (Effective June 1, 2021) Cadillac Escalade, Escalade ESV, Escalade EXT; Chevrolet Avalanche, Silverado 1500, Suburban, Tahoe; GMC Sierra 1500, Yukon, Yukon XL Add: SLT Trim Level - GMC Only Add: LTZ Trim Level - Chevrolet Only Add: Avalanche, Suburban, Tahoe, Yukon |
0.7 0.1 0.1 0.1 |
ZFAT | * |
| 9105717 ** | Replace Single Stage Front Passenger Airbag Inflator (HD Pickup Only - with part #84594241) Chevrolet Silverado and GMC Sierra 2500/3500 HD Add: SLT Trim Level - GMC Only Add: LTZ Trim Level - Chevrolet Only |
0.7 0.1 0.1 |
ZFAT | * |

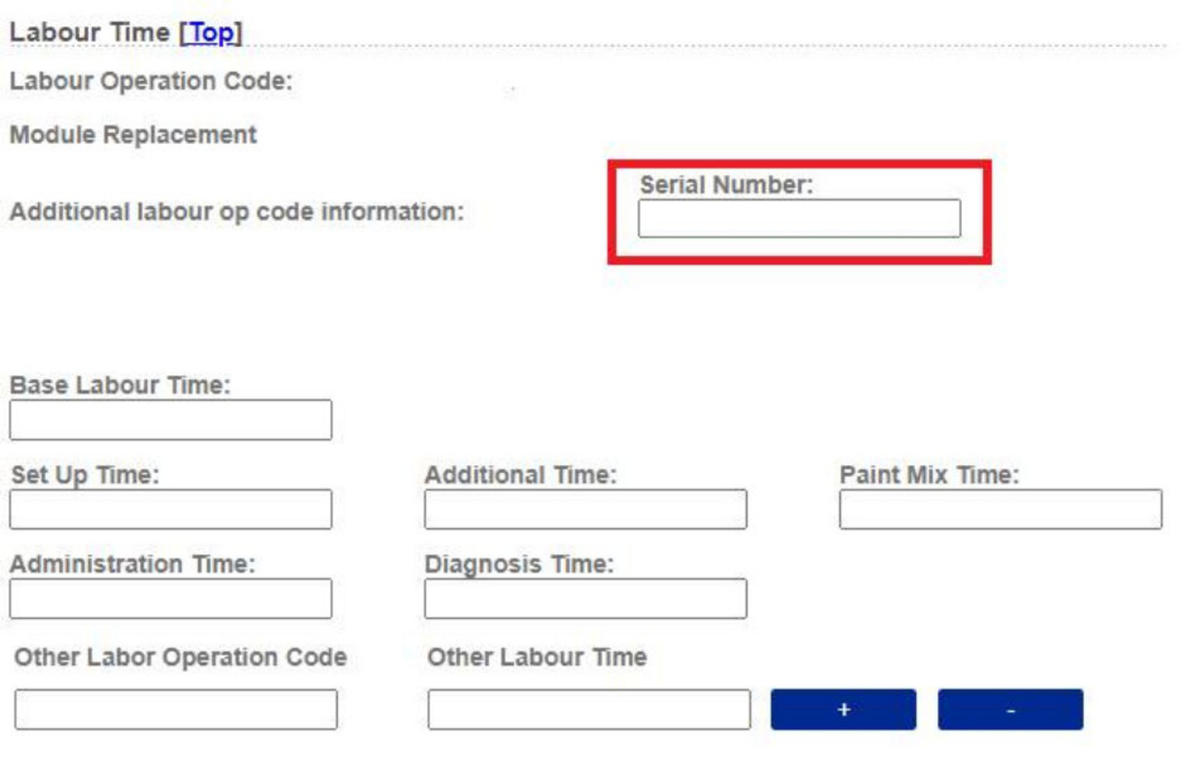

Serial Number Recording for All Airbag Inflator Replacements:
(TECHNICIAN and WARRANTY ADMINISTRATOR) REQUIREMENT FOR THE REPLACEMENT AIRBAG INFLATOR. The replacement airbag inflator serial number must be captured by the technician and recorded on the job card. The Warranty Administrator MUST enter the replacement airbag inflator serial number in GWM (Global Warranty Management) or in DMS (Dealer Management System). Enter the serial number of the replacement airbag inflator in the 'Labor Operation Dependency Code' field (1) per the screen above. Failure to enter this serial number will cause the claim to reject. The old part number 84255088 does NOT require the serial number to be recorded in the 'Labor Operation Dependency Code' and must be submitted with labor code 9105361.
* Submit a $20.00 administrative allowance for return of the used front passenger airbag inflator assembly (document preparation and packaging). Add this amount in the Administrative Allowance Net Item field when submitting the repair transaction.
For Export Only - Submit an administrative allowance for return of the used front passenger airbag inflator assembly (document preparation and packaging). Add 0.2 in the labor time field when submitting the repair transaction.
** Involved vehicle owners are eligible for courtesy transportation while their vehicle is being repaired. If courtesy transportation is required, add the actual cost in the appropriate Net Item field when submitting the repair transaction. Refer to GM Warranty Administration Bulletin 18-NA-094 for Courtesy Transportation Program guidelines.
SPECIAL TOOLS
Dealers must use the airbag mounting bracket, shown below, to replace the front passenger airbag inflator. As of December 31, 2015, all U.S. dealers have been shipped the airbag mounting bracket at no charge through Bosch Automotive Service Solutions. The Bosch tool number is EL-51377. If your dealership does not have the airbag mounting bracket, do not attempt to perform this service procedure and immediately contact 1-800-GM-TOOLS for assistance. Attempting to replace the front passenger airbag inflator without using the bracket may pose a safety risk for the technician and anyone else in the area.
(1) Mounting Bracket (2) Support Bars (3) Support Bar Hardware (4) Airbag Mounting Hardware.
SERVICE PROCEDURE
Dealers are required to use the airbag mounting bracket to perform the front passenger airbag inflator replacement procedure. If this special tool is not available, do not proceed with this repair.
If an airbag system is not handled using proper procedures and methods, it may be activated accidentally during work resulting in a life-threatening serious accident. If the service procedure is not performed correctly, the system may fail to activate when needed. Be sure to perform the proper work safely and according to the instructions provided below:
- Eliminate Static Electricity. Before start of work, touch a metallic portion of the vehicle with a bare hand to discharge static electricity charged on your body.
- DO NOT Measure Resistance. DO NOT measure resistance of airbag components. Measuring current of a circuit tester may cause accidental activation.
- Handle the airbag properly. If an inflator is dropped, replace it with a NEW inflator.
- DO NOT allow foreign objects near the airbag. Collect and account for all removed nuts/bolts to prevent them from landing in the airbag assembly. Any foreign objects in the airbag assembly may cause damage or injury if the airbag is activated.
- Wear protective equipment. Always wear appropriate protective equipment when working on the airbag.
Remove the instrument panel passenger airbag assembly from the vehicle and place on bench. Refer to Airbag Instrument Panel Module Replacement in SI.
To avoid personal injury or death, it is critical to use an airbag module bracket when replacing an inflator module. Carefully read and follow the instructions below:
- Confirm the bracket assembly is installed securely in the vise.
- Confirm there are no loose objects or people exposed to the back side of the bracket for safety in the unlikely event of airbag deployment due to improper work procedures. The airbag is NOT being replaced due to an inadvertent deployment concern.
- Confirm that no objects, tools or people are within 3 feet (1 meter) of the back side of the bracket.
- Confirm that no objects, tools or people are within 2 feet (0.6 meters) of the sides of the bracket.
- BEFORE starting work and periodically while working on the airbag module, touch a metallic part of the work bench to discharge static electricity in the body.
AIRBAG REMOVAL FROM VEHICLE AND INSTALLING IN MOUNTING BRACKET (USE WITH ALL VEHICLES)
- Mount the airbag module bracket securely in a vise.
- Using the hardware kit supplied with the module bracket, loosely mount the airbag assembly to the bracket using two nuts and bolts.
- Position the airbag assembly so that all four stopper plate nuts can be removed through the access holes.
- Tighten the two fasteners that attach the airbag assembly to the module bracket.
- Confirm the following steps have been completed BEFORE proceeding to the next step:
- The mounting bracket is secure in the vise.
- The airbag assembly is secured to the bracket.
To avoid personal injury, ALWAYS keep as much of your body as possible in front of the bracket when working on the airbag assembly. Remember to periodically touch a metallic part of the vehicle or work bench to discharge static electricity in the body. DO NOT use power tools when performing the inflator removal/reinstallation steps.
DUAL STAGE FRONT PASSENGER AIRBAG (ALL LIGHT DUTY PICKUP TRUCKS AND LD/HD UTILITY MODELS)
Create a short circuit before disconnecting the inflator wires.
- Peel the yellow tape off of the wire harness near the connector. DO NOT
use a knife or sharp tool to remove the yellow tape.
- Locate the red plastic "Electro Tap" from the service kit. If required, remove the small tab from the electro tap as shown (1).
- Locate the yellow wire and place it in the electro tap.
- Use pliers to firmly close the electro tap on the yellow wire
until an audible "click" is heard confirming the installation.
- Locate the orange wire and place it in the electro tap.
- Use pliers to firmly close the electro tap on the orange wire until an audible "click" is heard confirming the installation.
- Place wire cutters on the connector side of the electro tap and cut the wires as shown.
- Use the access holes in the bracket to loosen and remove the four self-locking nuts, do not use power tools to remove the nuts.
Discard the nuts, they will not be reused.
- Remove the stopper plate (bracket).
- Disengage the wire harness locator from the housing.
- Remove the black taped wire from the housing tabs. The wire harness is now fully disconnected from the housing.
- Gently push in the 4 studs to loosen the inflator for removal.
- Remove the inflator from the housing, slide the inflator to the right.
- Put a mark on the removed inflator and store it in the provided replacement part box. Refer to the instructions that were included with the new inflator module kit.

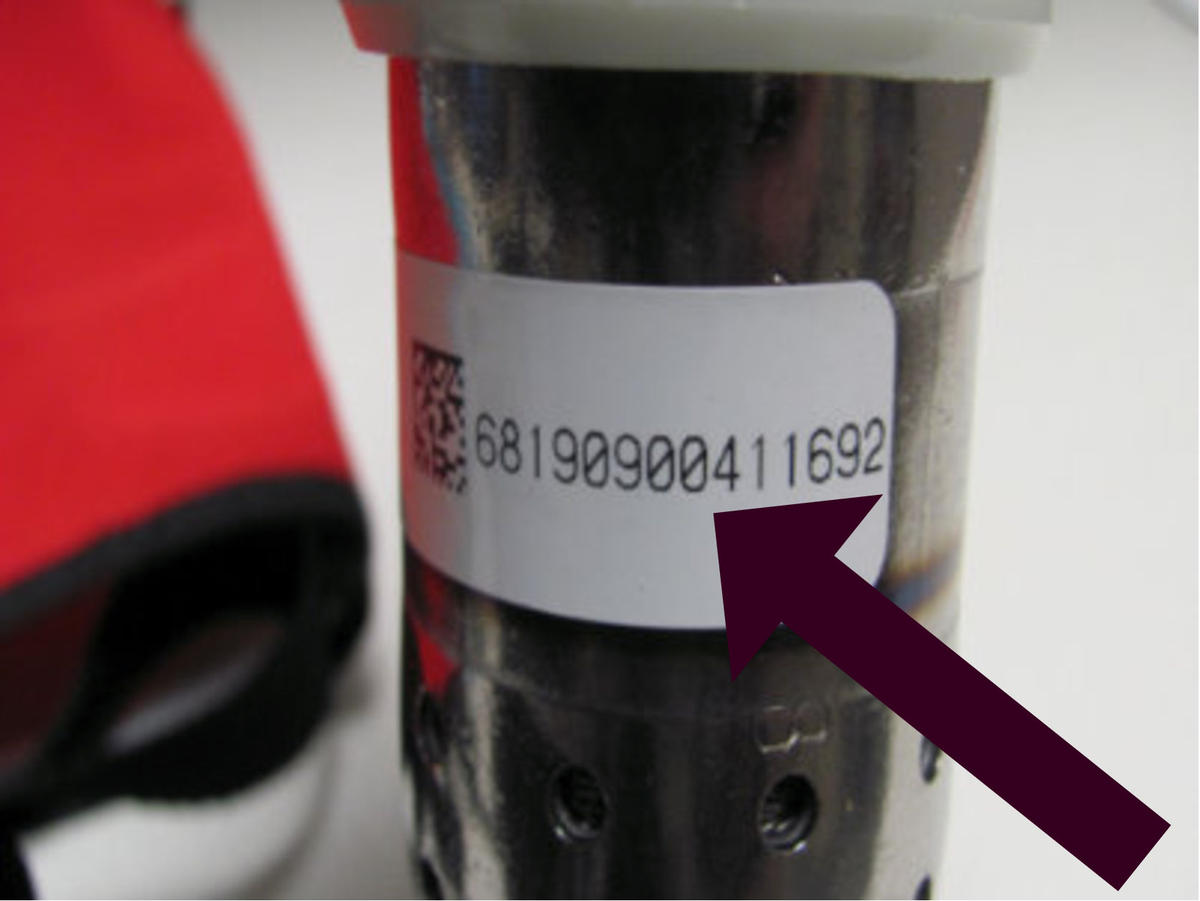

- Record the serial number of the new (replacement) inflator from the service kit on the job card.

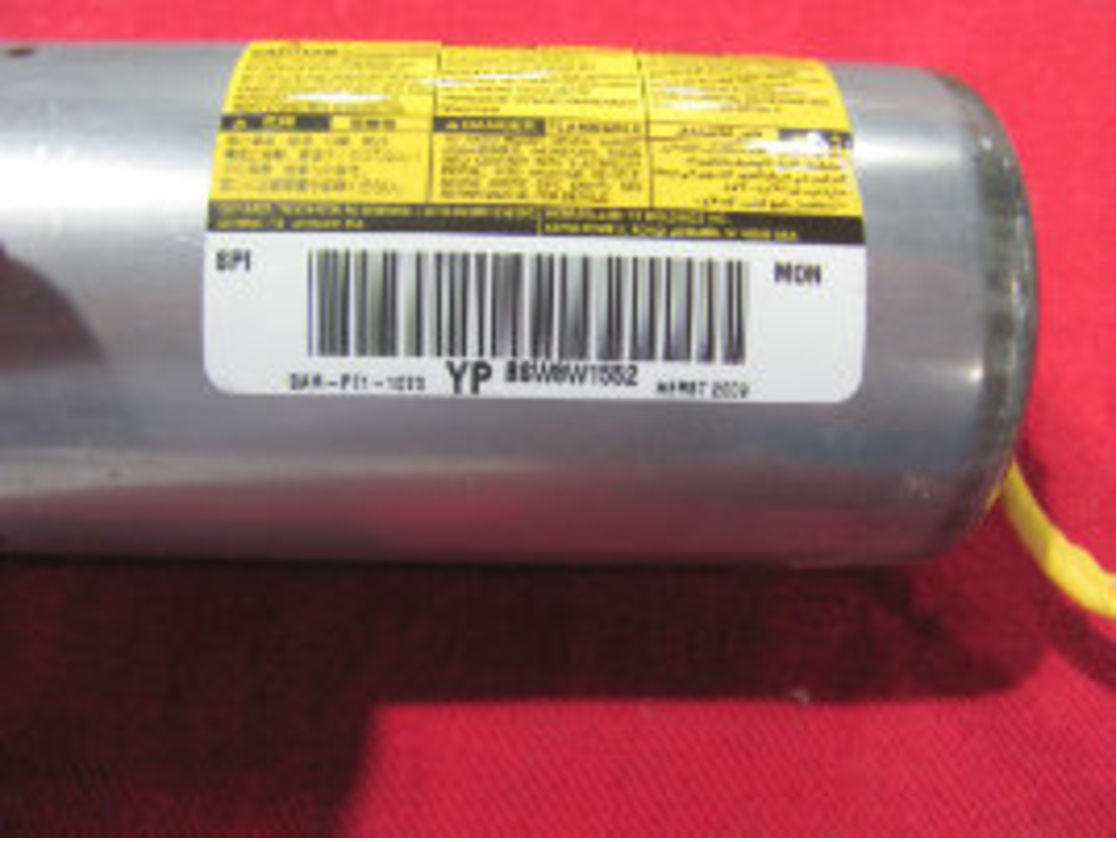

- Record the serial number of the used inflator that is being returned on the job card
- Inspect the new inflator for the following two conditions:

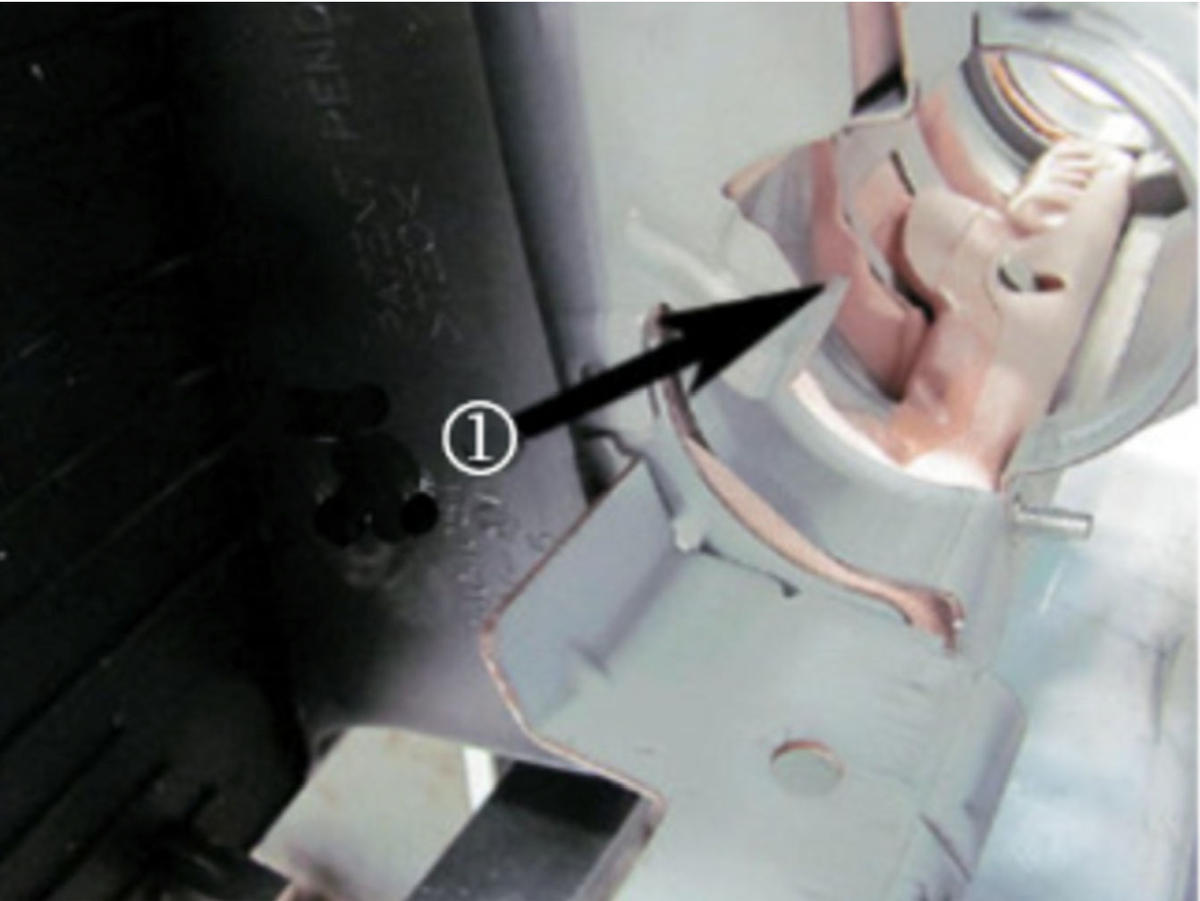

- Using a small pair of slip joint pliers, bend the alignment tab on the airbag inward from a 90 Deg. angle (1) to a 45 Deg. angle (2).
-
NOTE:
Only the small return tab should be bent. Take care to not bend any other portion of the orientation tab.
Slide the new inflator into the housing with the white end cap first. - Rotate the inflator until the notch in the white end cap aligns with the alignment tab.
- Place the stopper plate onto the studs as shown.
- Loosely hand start the 4 new nuts on the studs.
- Tighten four (4) NEW
plate nuts evenly in several increments in the order shown in the illustration using a 10-mm socket driver while pushing on the inflator against the alignment tab.
-
NOTE:
The inflator should be netted out against the alignment tab prior to tightening the nuts. You will encounter some resistance during tightening because these nuts are self-locking nuts.Torque Specification: 6.5 Nm (57 in-lb).
Install the wire harness locator to the housing. - Press the black taped wire into the housing tabs as shown. Tape the wire harness to the metal housing in between the tabs (in the area of the blue arrow).
- Install the yellow taped wire into the inflator (white cap end). Ensure the CPA is engaged.
- Install the black taped wire into the inflator (black cap end). Ensure the CPA is engaged.
- Apply a masking tape strip to the wire harness in the location shown below.

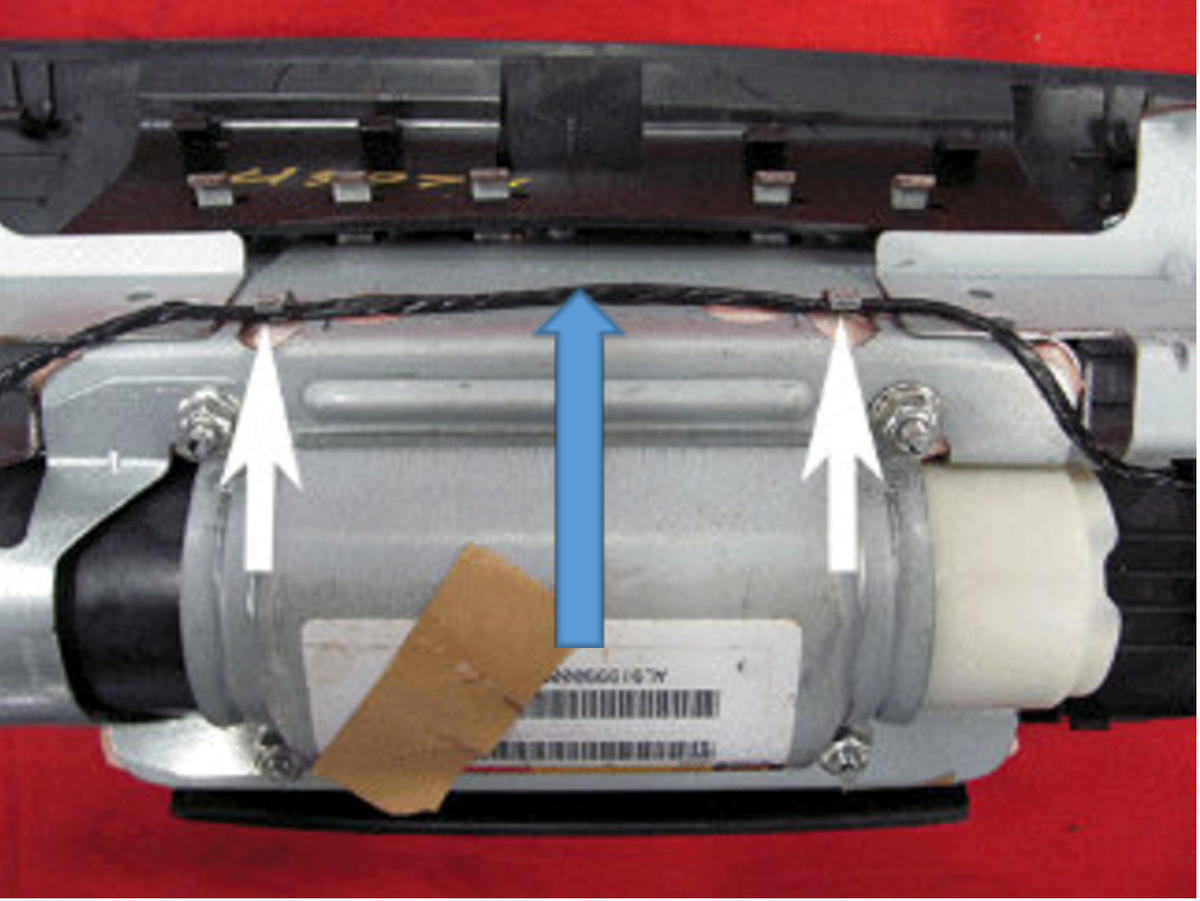

- Adhere the tape strip and wire harness to the metal housing as shown.
- Confirm the wire harness is in the correct orientation after taping.
- Remove the airbag assembly from the bracket by removing the two bolts and the airbag assembly.
- Reinstall the instrument panel passenger airbag assembly. Refer to Airbag Instrument Panel Module Replacement in SI.
SINGLE STAGE TAKATA FRONT PASSENGER AIRBAG (HD PICKUP ONLY)
- Use the access holes in the bracket to loosen and remove the four self-locking nuts, do not use power tools to remove the nuts.
Discard the nuts, they will not be reused.
- Remove the two stopper plates (1 and 2). Discard the stopper plates, they will not be reused.
- Disengage the wire harness locator from the housing.
- Gently push in the 4 studs to loosen the inflator for removal.
- Remove the inflator from the housing, slide the inflator away from the harness side.
- Put a mark on the removed inflator and store it in the replacement part box.
- Record the serial number of the new (replacement) inflator from the service kit on the job card.
- Record the serial number of the used inflator that is being returned on the job card.
- Inspect the new inflator for the following two conditions:

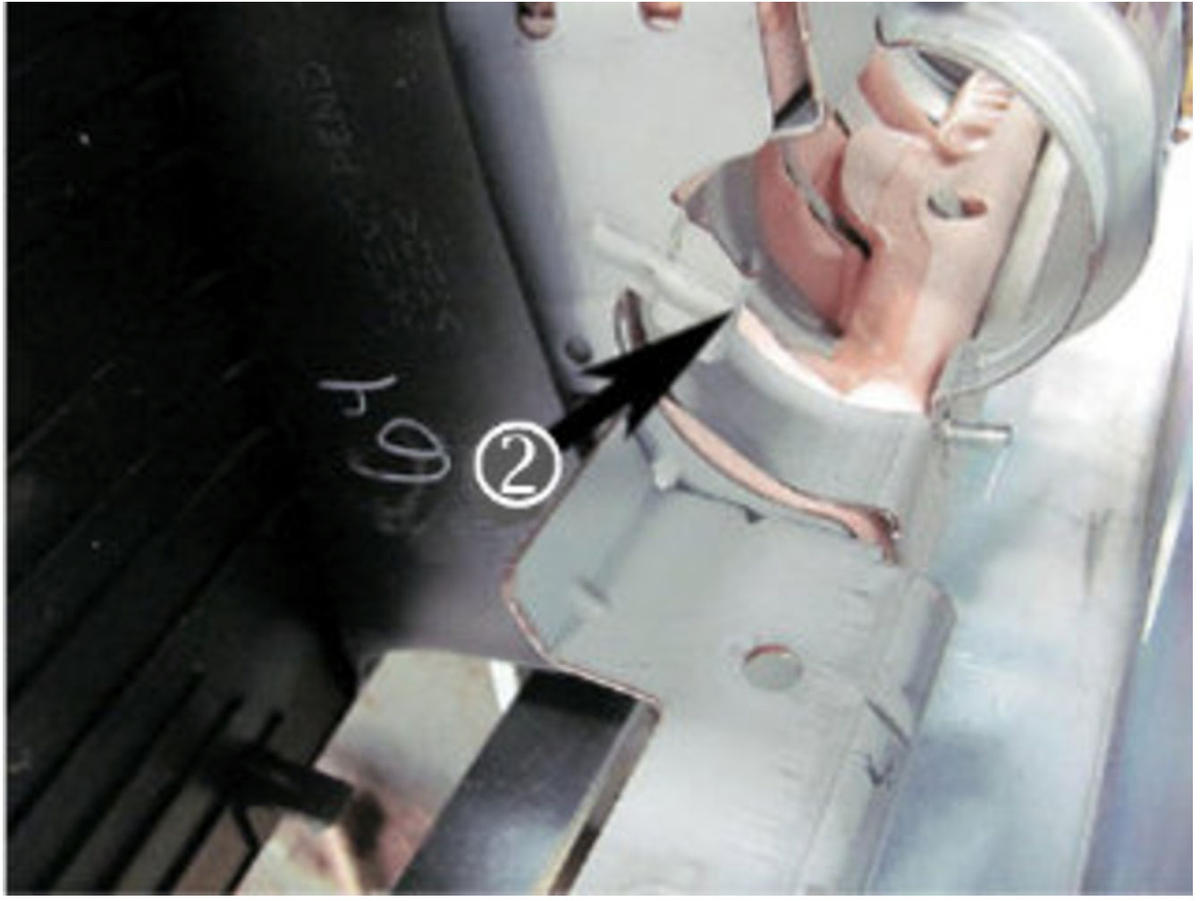

- Using a small pair of slip joint pliers, bend the alignment tab on the airbag inward from a 90 Deg. angle (1) to a 45 Deg. angle (2).
- Carefully slide the new inflator into the airbag assembly. Ensure the inflator is installed with the harness (white end cap) end first.
- Rotate the inflator until the notch in the white end cap aligns with the alignment tab.
- Place the new stopper plate (bracket) onto the studs as shown.
- Loosely hand start the 4 new nuts onto the studs.
- Tighten four (4) NEW
plate nuts evenly in several increments in the order shown in the illustration using a 10-mm socket driver while pushing the inflator. You will encounter some resistance during tightening because these nuts are self-locking nuts. Torque Specification: 6.5 Nm (57 in-lb).

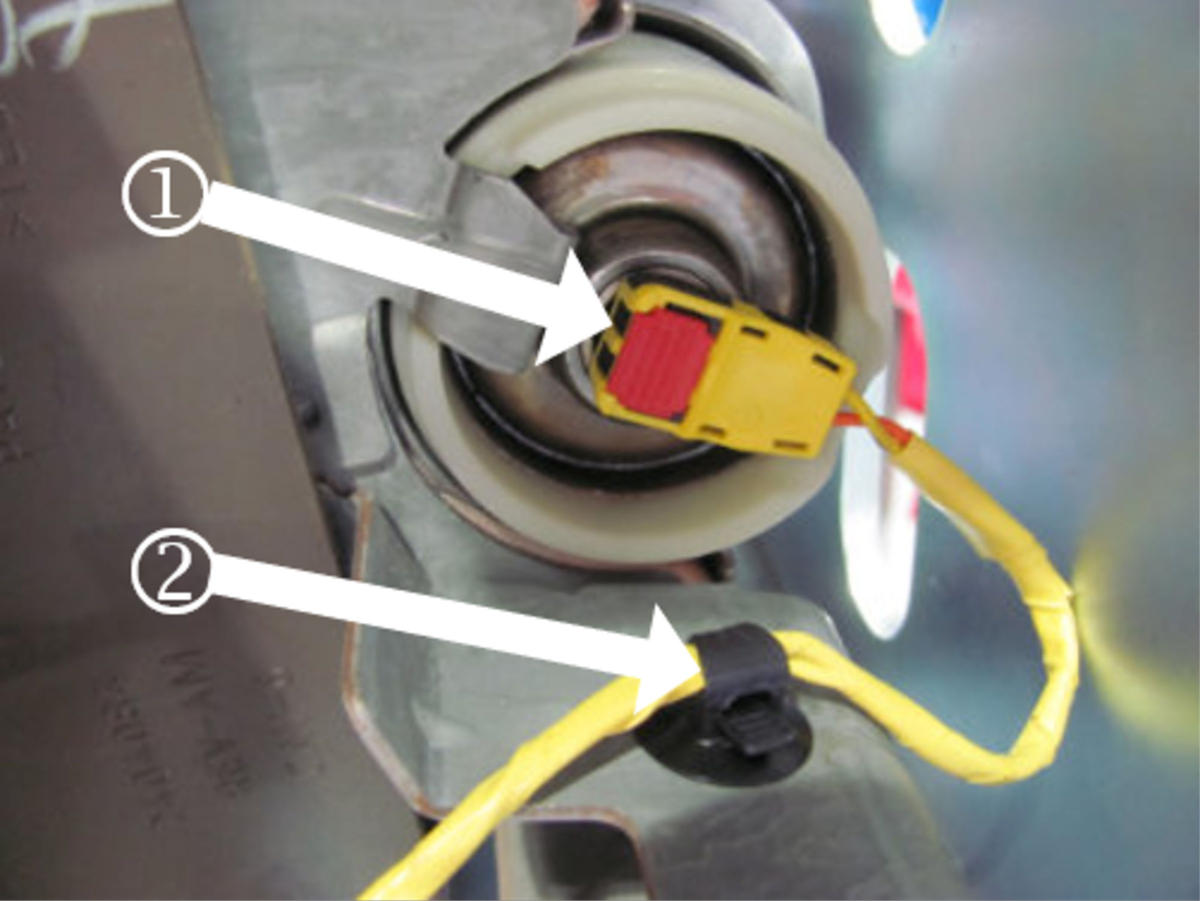

- Connect the new yellow wiring harness to the airbag inflator, fully engage the CPA (1).
- Install the wire harness locator to the housing (2).
- Remove the airbag assembly from the bracket by removing the two bolts and the airbag assembly.
- Reinstall the instrument panel passenger airbag assembly. Refer to Airbag Instrument Panel Module Replacement in SI.
DEALER RESPONSIBILITY - FOR US AND EXPORT (US STATES, TERRITORIES, AND POSSESSIONS)
It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied.
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
DEALER RESPONSIBILITY - ALL
All new, used, GM Certified Used, courtesy transportation vehicles, dealer shuttle vehicles, etc. in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this bulletin before customers take possession of these vehicles. Involved vehicles must be held and not delivered to customers, dealer-traded, released to auction, used for demonstration, or any other purpose.
All GM Certified Used vehicles currently in the dealers' inventory within the Certified Pre-Owned Inventory System (CPOIS) will be de-certified and must be held and remedied per the service procedure in this bulletin. Upon submitting an accepted/paid warranty transaction in the Global Warranty Management (GWM) system, the vehicle can be re-certified for sale within the CPOIS system, or once again be used in the CTP program.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this field action enters your vehicle inventory you must take the steps necessary to ensure the program correction has been made before selling the vehicle. In addition, for vehicles entering your facility for service, you are required to ensure the customer is aware of the open field action and make every reasonable effort to implement the program correction as set forth in this bulletin prior to releasing the vehicle.
DEALER REPORTS
For dealers with involved vehicles, a listing has been prepared and will be available through GM GlobalConnect Maxis Field Action Reports or sent directly to export dealers. The Inventory tab of the dealer reports will contain VINs that apply to this recall. This information is intended to assist dealers with the PROMPT COMPLETION of these vehicles. The Customer In-Service tab will contain customer names and addresses from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall may be a violation of law in several states.
COURTESY TRANSPORTATION
In conjunction with the Takata Air Bag Completion Rate Improvement Program, dealers are authorized to provide alternate transportation to affected vehicle owners while their vehicle is at a GM dealership for performance of this recall. Refer to GM Service Information Bulletin #18-NA-094 for program guidelines.
CUSTOMER NOTIFICATION
USA & Canada - General Motors will notify customers of this recall on their vehicle (see copy of customer letter included with this bulletin).
Export - Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.
OWNER LETTER
January 2022
This notice applies to your vehicle, VIN: _____________________________________
Dear General Motors Customer:
NO TITLE
This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.
TK Holdings (Takata) has decided that a defect which relates to motor vehicle safety exists in certain passenger-side frontal airbag inflators installed as original equipment in certain 2007-2014 model year Cadillac Escalade, and Chevrolet Tahoe vehicles; certain 2009-2010 and 2012-2013 model year Cadillac Escalade ESV, Escalade EXT and Chevrolet Avalanche vehicles; certain 2008-2013 model year Chevrolet Silverado 1500 vehicles; certain 2009-2010 and 2013 model year Chevrolet Silverado 2500/3500, GMC Sierra 1500, GMC Sierra 2500/3500, Yukon, and Yukon XL vehicles; and certain 2008-2010 and 2013 model year Chevrolet Suburban vehicles. As a result, GM is conducting a safety recall. We apologize for this inconvenience.
|
IMPORTANT:
|
| Why is your vehicle being recalled? | Takata has determined that a defect exists in the passenger-side frontal airbag inflator in your vehicle. The determination was made that the propellant in this inflator may degrade after long-term exposure to high humidity and temperature cycling, which could cause the inflator to explode during a deployment. An inator rupture may cause metal fragments to pass through the airbag and into the vehicle interior at high speed, which may result in serious injury or death to passengers. |
| What will we do? | Your GM dealer will replace the passenger-side frontal airbag inflator in your vehicle. This service will be performed for you at no charge. Because of service scheduling requirements, it is likely that your dealer will need your vehicle longer than the actual inspection and service correction time of approximately one hour. |
| What should you do? | You should contact your GM dealer to arrange a service appointment as soon as possible. |
| Do you have questions? | If you have questions or concerns that your dealer is unable to resolve, please contact the appropriate Customer Assistance Center at the number listed below. Owners may also visit gmtakataairbag.com. |
| Division | Number | Text Telephones (TTY) |
| Cadillac | 1 - 866 - 982 - 2339 | 1 - 800 - 833 - 2622 |
| Chevrolet | 1-800-630-2438 | 1-800-833-2438 |
| GMC | 1 - 866 - 996 - 9463 | 1 - 800 - 462 - 8583 |
| Puerto Rico - English | 1-800-496-9992 | |
| Puerto Rico - Espa n ol | 1-800-496-9993 | |
| Virgin Islands | 1-800-496-9994 |
If after contacting your dealer and the Customer Assistance Center, you are still not satisfied we have done our best to remedy this condition without charge and within a reasonable time, you may wish to write the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, SE, Washington, DC 20590, or call the toll-free Vehicle Safety Hotline at 1.888.327.4236 (TTY 1.800.424.9153), or go to http://www.safercar.gov. The National Highway Traffic Safety Administration Campaign ID Number for this recall is 21V054.
Federal regulation requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within ten days.
Regina A. Carto
Vice President
Global Product Safety and Systems
GM Recall N212328800
