Cylinder Head Removal - Left Side

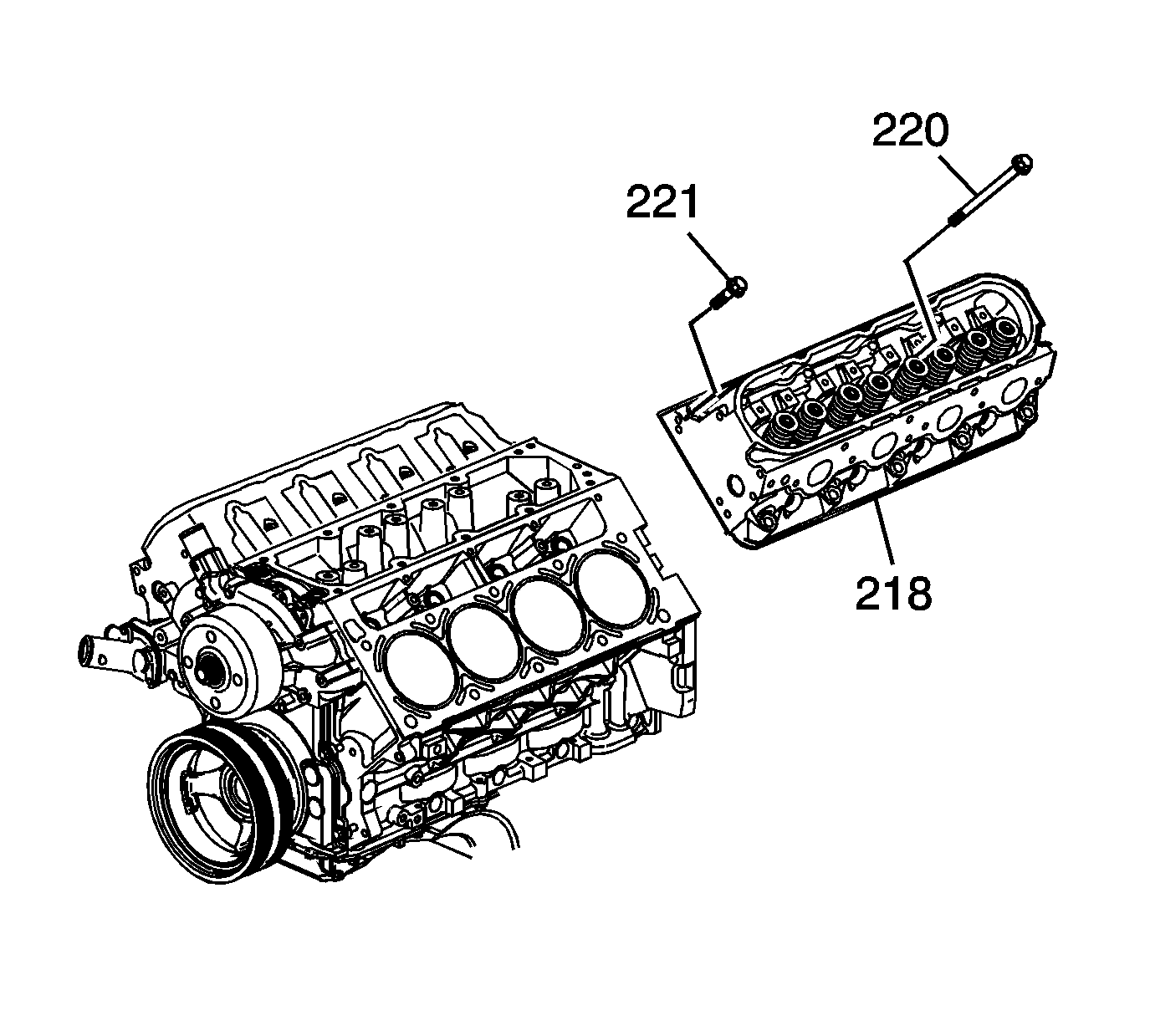

    Fig 1: View Of Cylinder Head & Bolts
    GM1658150Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The cylinder head bolts are of a torque-to-yield design and are NOT to be used again. Install NEW cylinder head bolts during assembly.

  1. Remove the cylinder head bolts (220, 221).
    2. CAUTION:

    After removal, place the cylinder head on 2 wood blocks in order to prevent damage to the sealing surfaces.

  2. Remove the cylinder head (218).

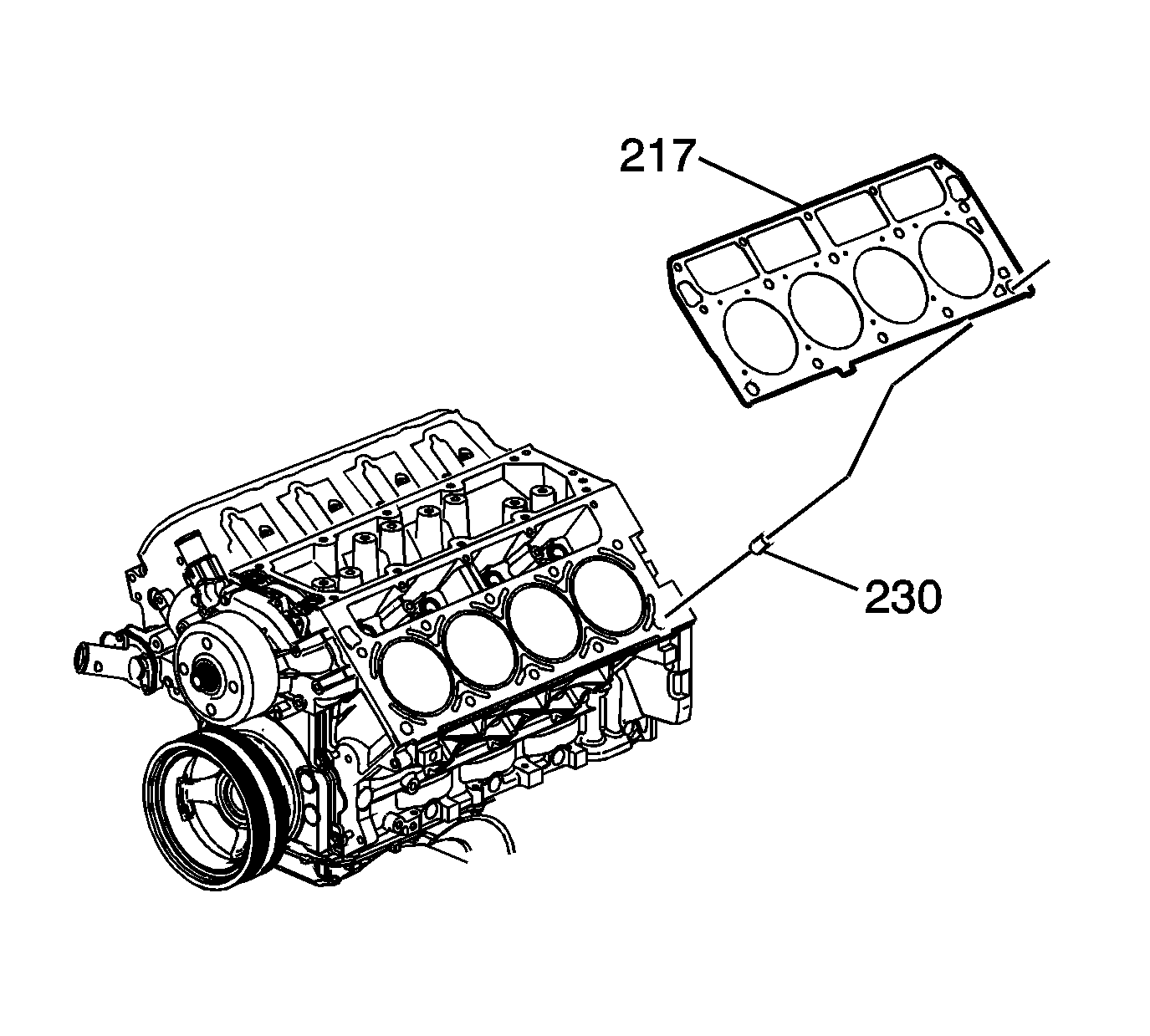

    3. Fig 2: View Of Cylinder Head Gasket & Locating Pins
    GM1658153Courtesy of GENERAL MOTORS COMPANY
  3. Remove the gasket (217) and locating pins (230).
  4. Discard the gasket and cylinder head bolts.
